Photometrics
- Light source
- MAIN: 3x60W haloLED™ | GLOW: 3x12W RGBW
- Beam angle
- 94°
- Colour temperature
- MAIN: 1 600–3 200 K | GLOW: R G B + White 6000K
- CRI
- >80
EVO ELEMENT™
The building block of iconic stages. Modular tungsten aesthetics without compromise.
Couldn't load pickup availability
Pickup available at Portman Main Warehouse
Usually ready in 24 hoursPairs well with
Original, high-quality, patented design product.
2-Year Warranty

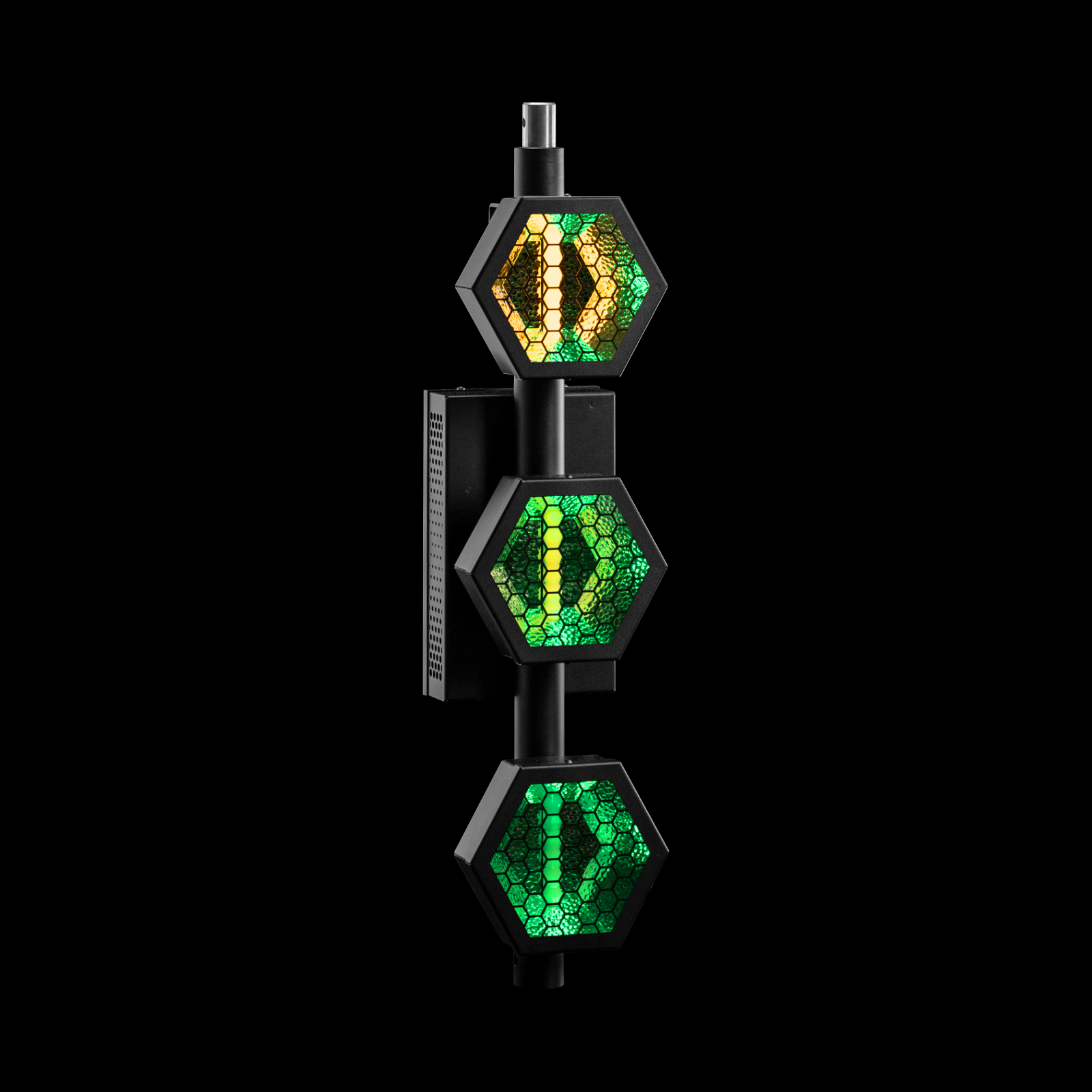

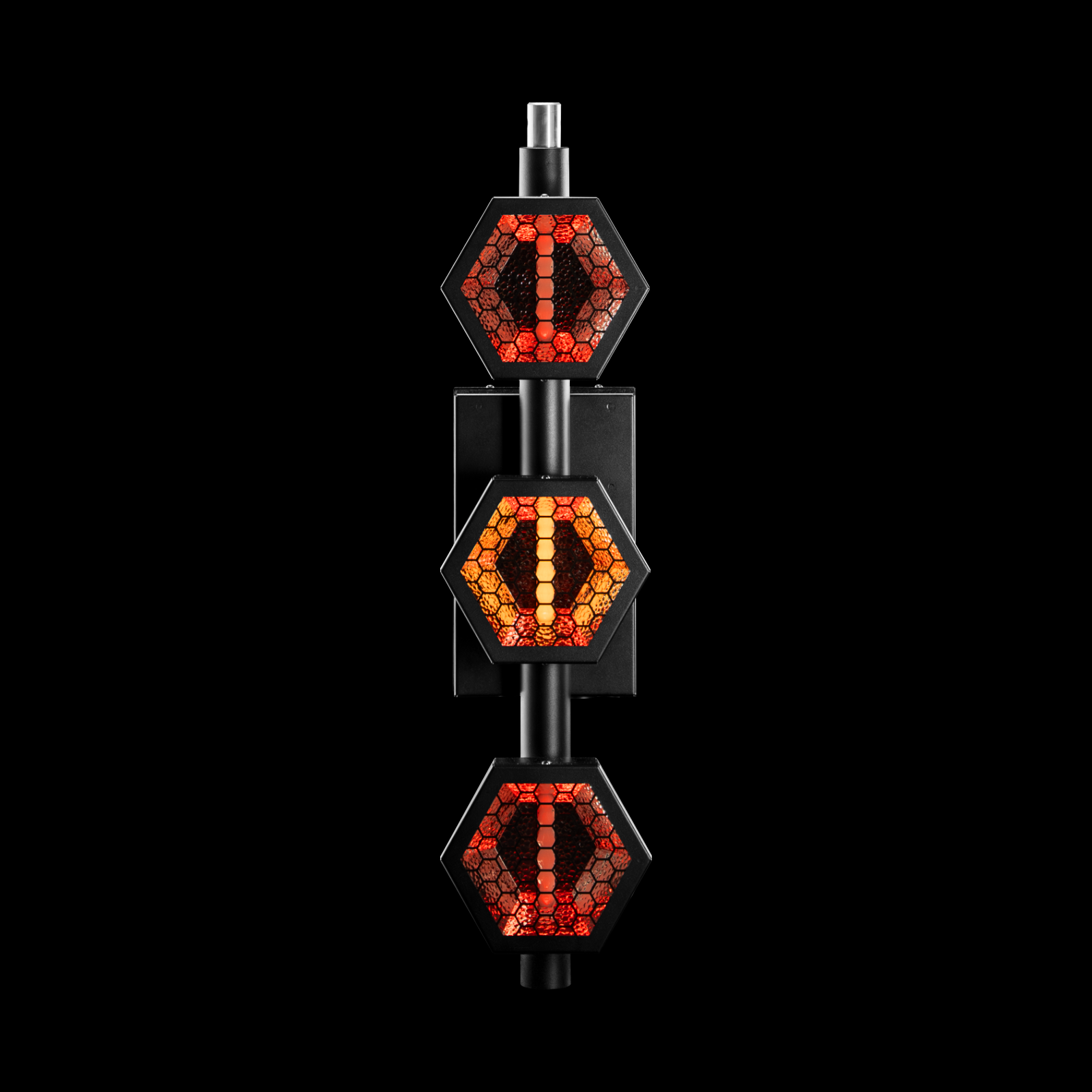

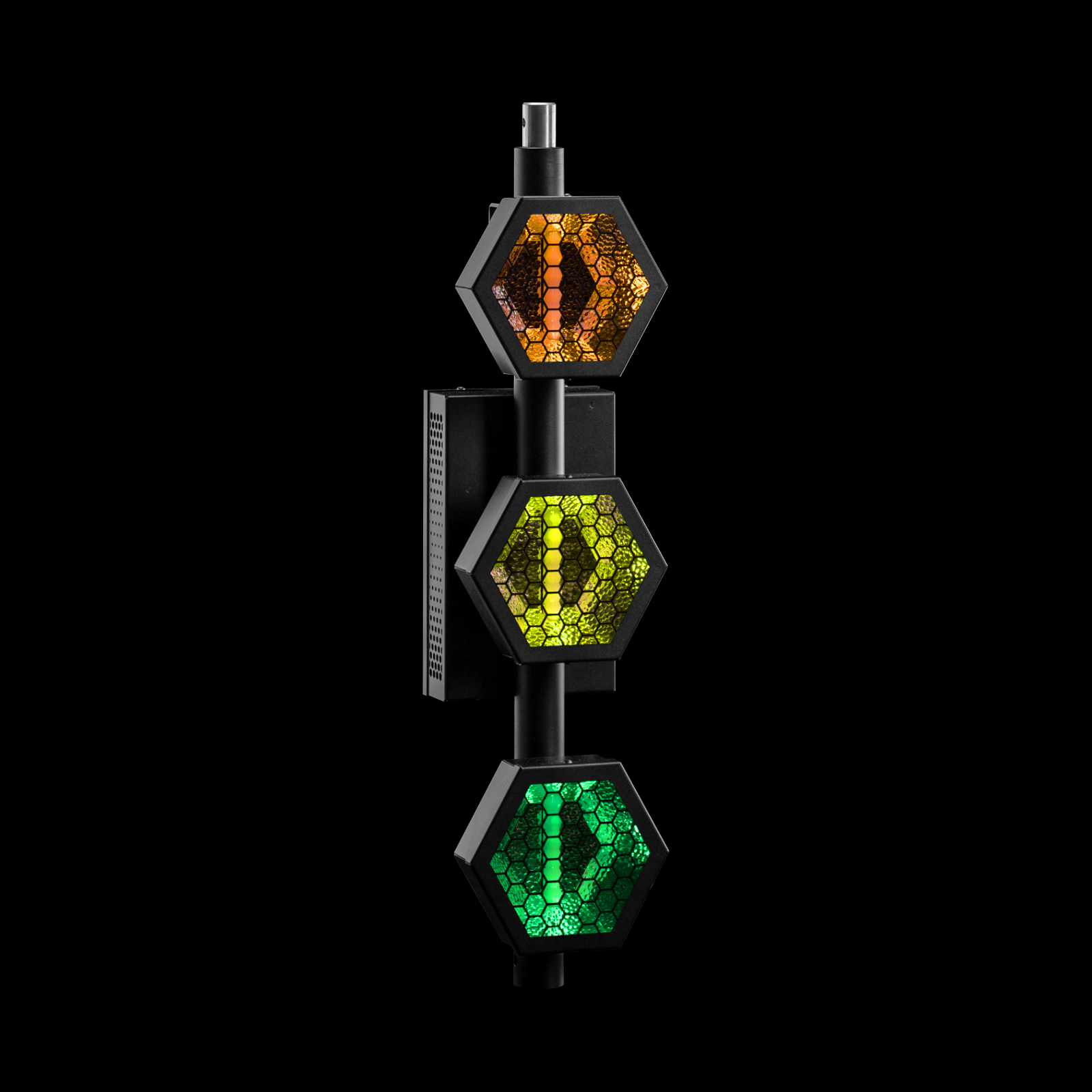

EVO ELEMENT
The ultimate structural building block of the EVO ecosystem. Packing 3 high-output pixels into a rigid frame, it delivers the exact same signature haloLED™ tungsten emulation and RGBW inverted aura glow as P1 EVO™ and P2 EVO™.
That will make your eyes pop.
It gives you absolute freedom to build, stack, and shape stage architecture on the fly. Fill empty spatial voids, extend vertical columns, or craft intricate geometric backdrops - with pixel-perfect spacing every single time. Small, agile, and endlessly versatile: it ensures no two shows ever look the same. Seeing is believing. Building it is addictive.

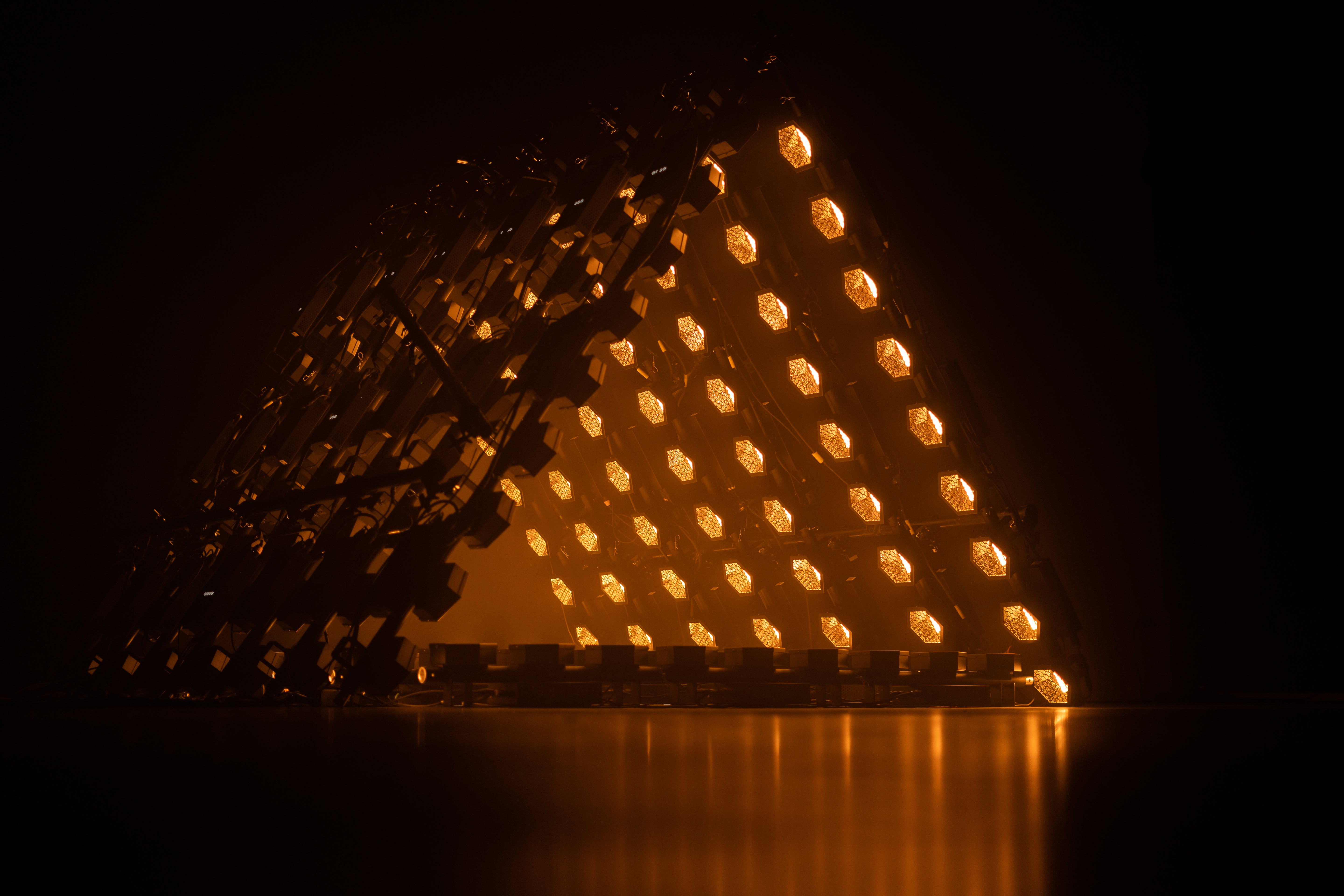

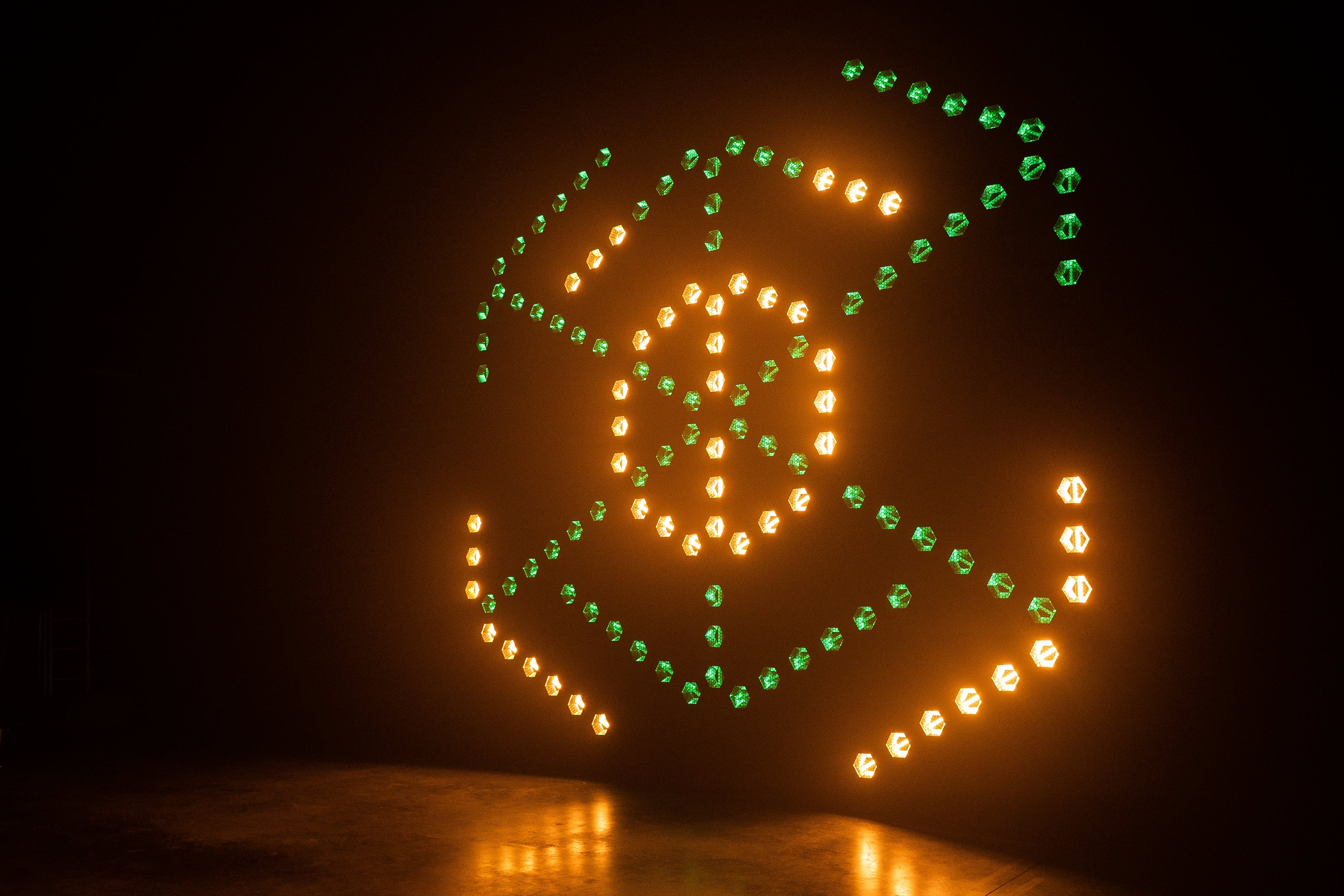

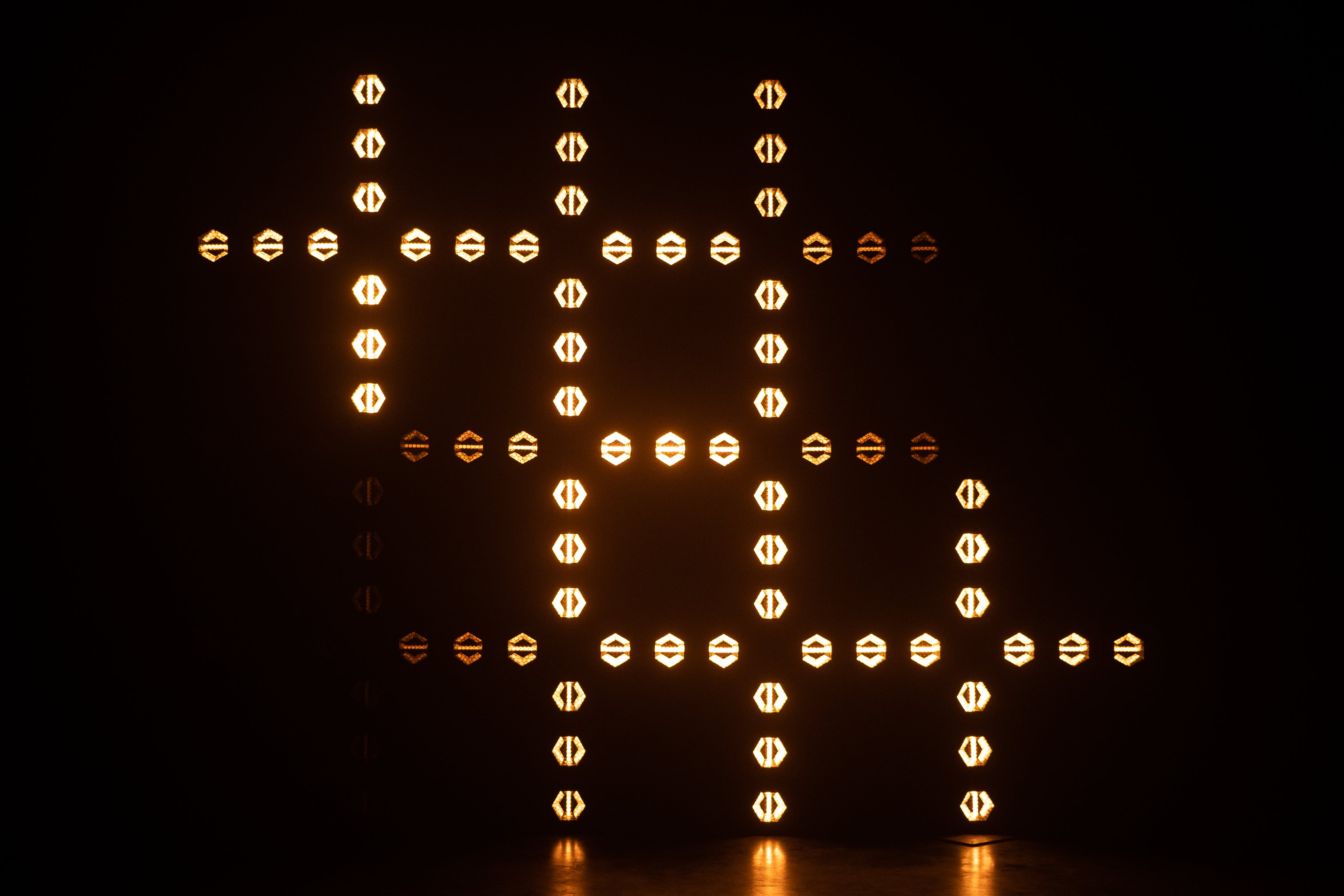

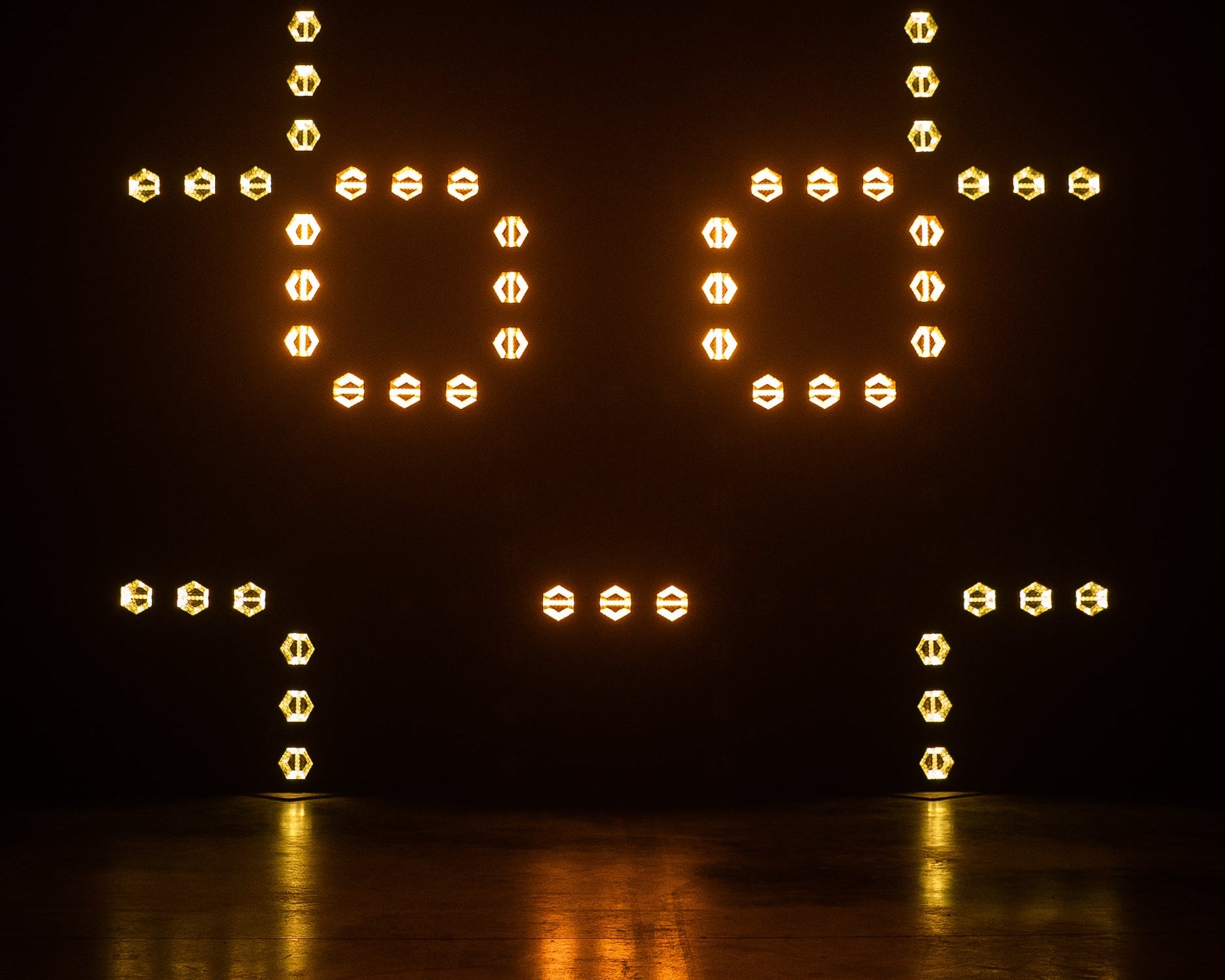

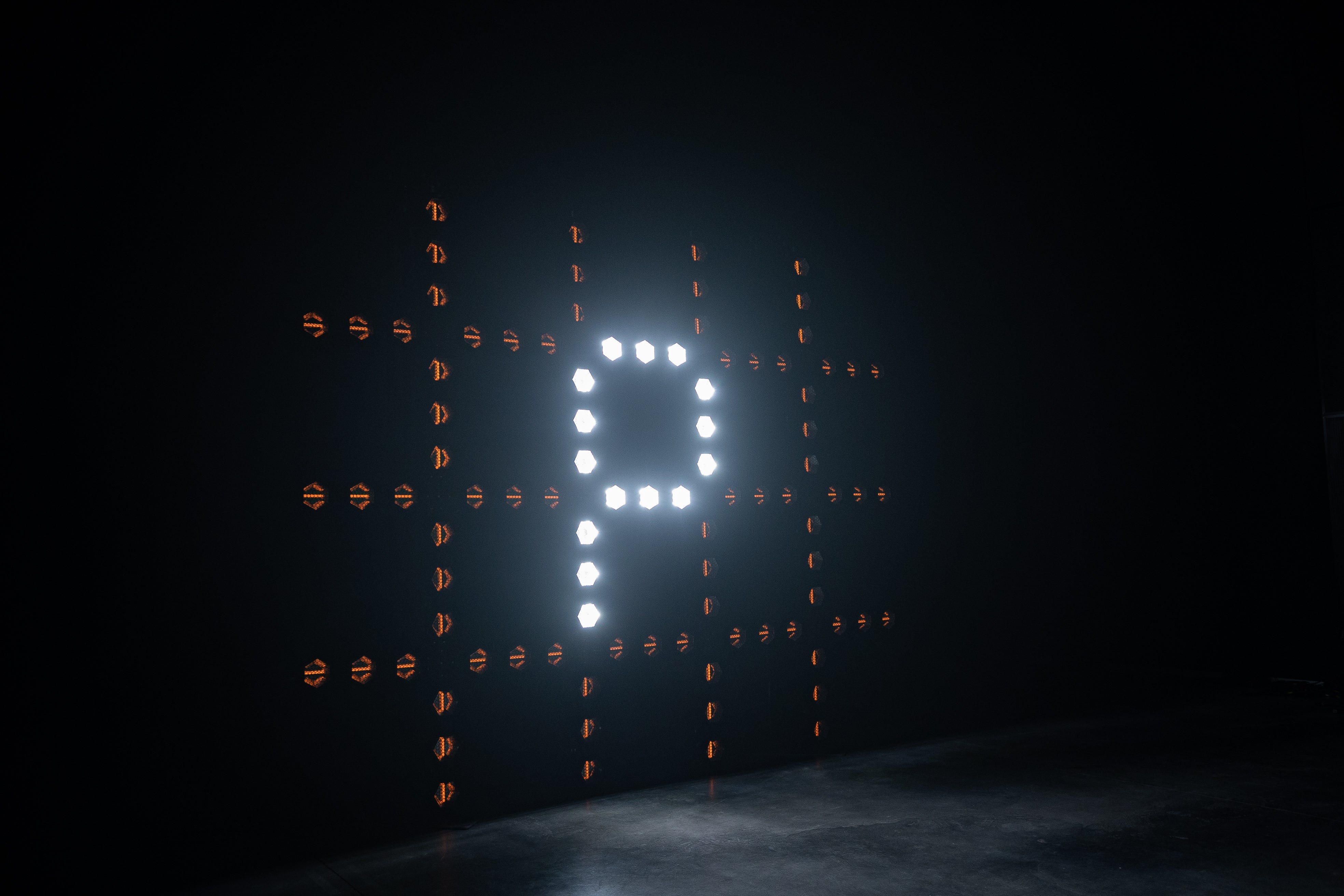

Build what's unbuildable

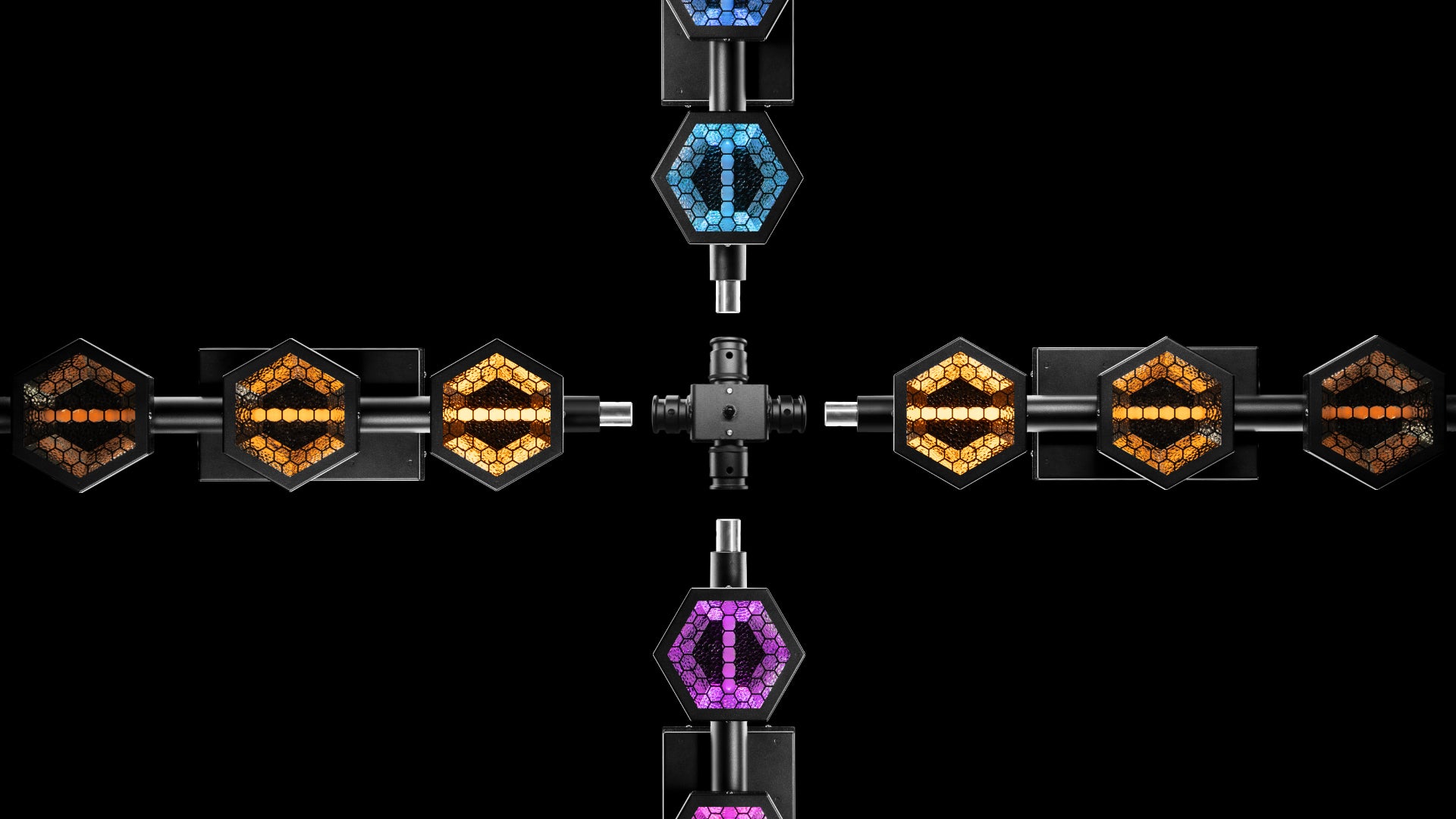

Connect, curve, and scale. Watch EVO ELEMENT™ transform from a compact bar into intricate geometric arrays, sharp polygons, and continuous structural curves. Combined with E-CONN™, every setup is a blank canvas. Infinite configurations, zero compromises.
Try me!

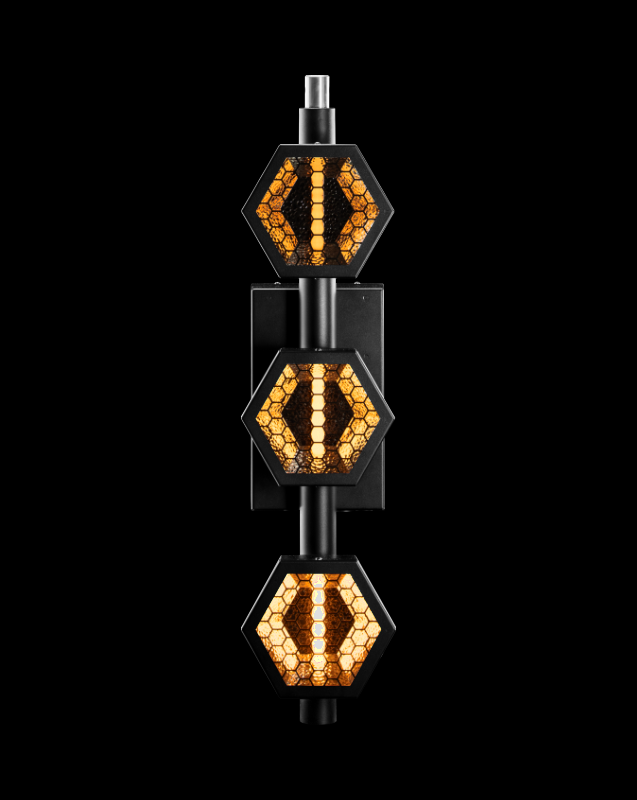

MAIN haloLED™
60W warm white true tungsten emulated LED source with red-shift effect and custom diffuser to boost retro style.

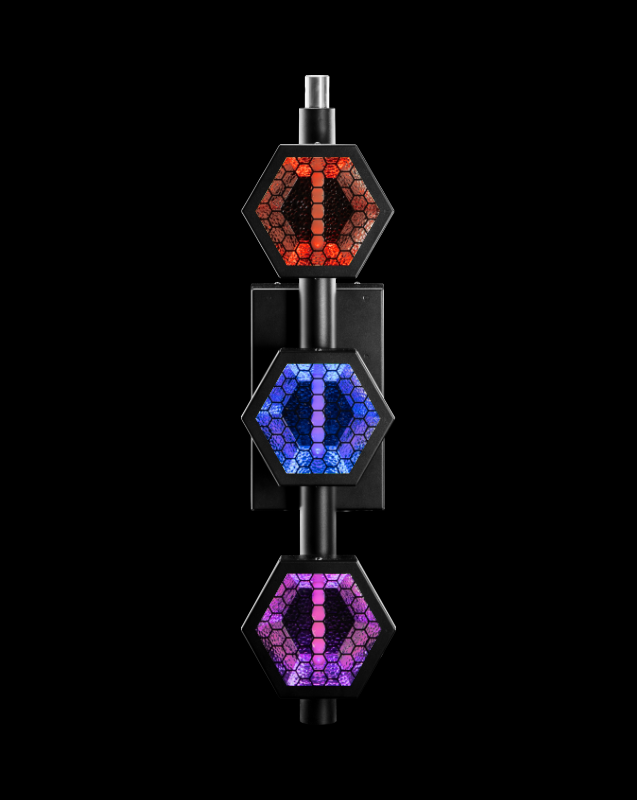

GLOW
12W RGBW background glow powered by 16-bit color blending and inward-facing light sources, painting the entire reflector in stunning, seamless color.
CONNECTOR
Truss-style top and bottom connectors for fixture coupling with perfect pixel-pitch spacing, or bracket mounting.

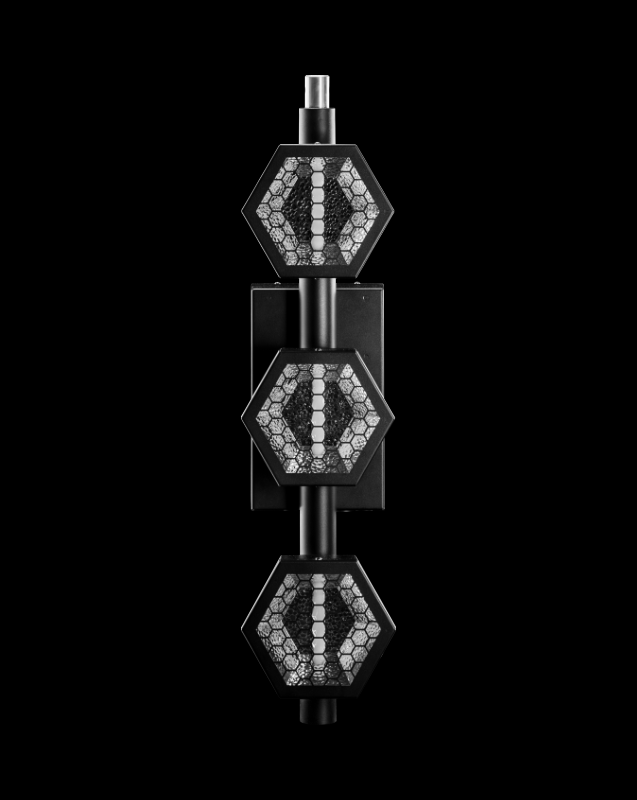

OFF
ON - haloLED™ SUBTLE WARMTH
ON - haloLED™ MORE WARMTH!
ON - haloLED™

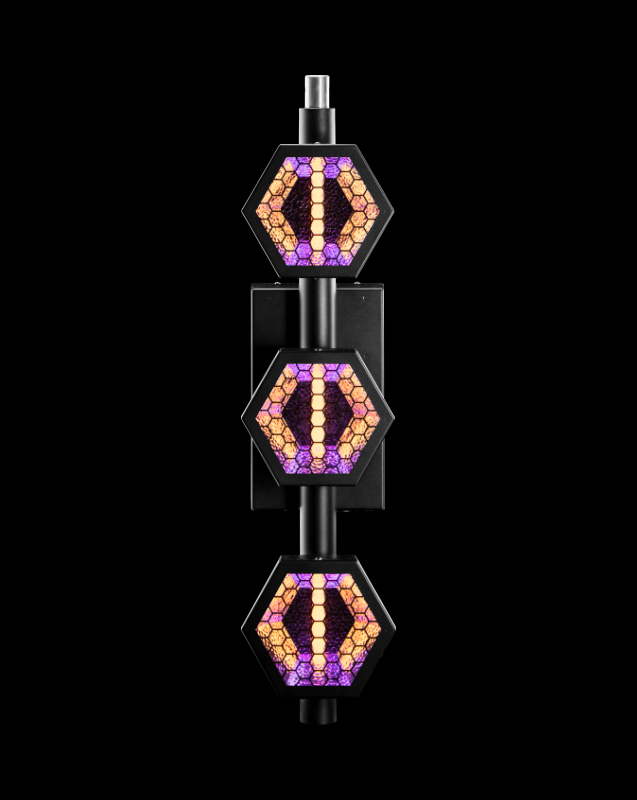

ON - GLOW ON - GLOW
ON - GLOW ON - GLOW
Specification
Control & Programming
- Protocols
- DMX512, RDM, WDMX(optional)
- DMX modes
- 6
- DMX channels
- 9-37
- Interface
- LCD display, highlighted touch buttons, Colour Feedback System™ – fixture’s auto information status
- Additional features
- macros, influencer/follower mode
Electrical
- Input voltage
- 100-240 V 50/60 Hz
- Power consumption
- 240 W
- Connectors
- AC power in/thru: powerCON TRUE1
Physical construction
- Dimensions
- 87 x 21 x 19 cm (34.1 x 8.1 x 7.4 in)
- Weight
- 5,2 kg (12.6 lbs)
- Rigging
- 2 x 13 mm (1/2 in) holes on back; base; top hanging adapter 13 mm (1/2 in) hole; E-CONN™ - the 4-way connector (optional)
- IP rating
- 20
Compliance & support
- Compliance
- CE; UKCA
- Warranty
- 24 m
Accessories
- Included
- Fixture
AC power cord (PowerCon TRUE 1/no AC plug)
Hanging adapter
Spigot & cotter
User manual - Optional
- Rigging:
E-CONN™ - the 4-way connector
Control features:
WDMX
Packing:
flight case (2-units)
flight case (4-units)

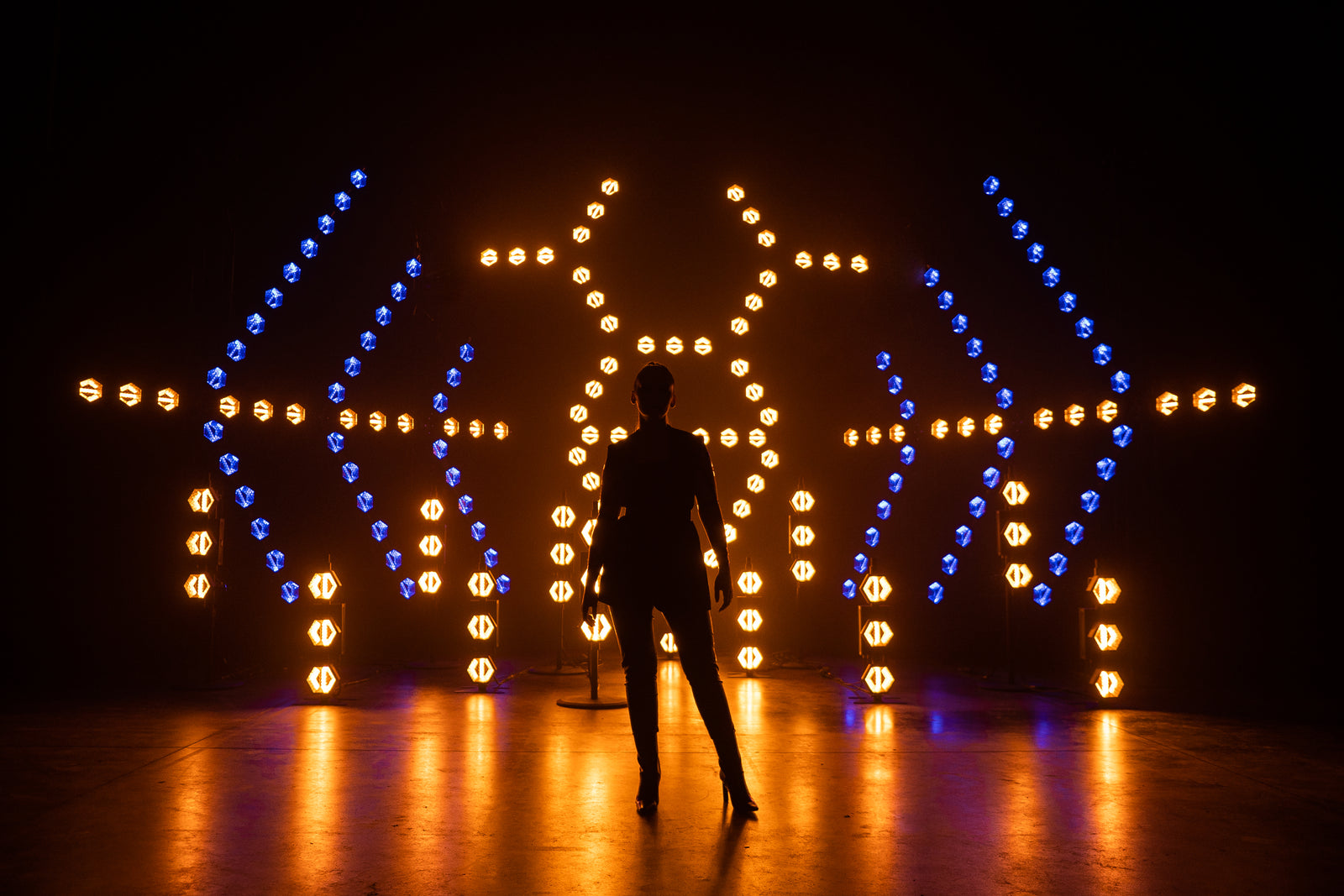

EVO ELEMENT™ in action

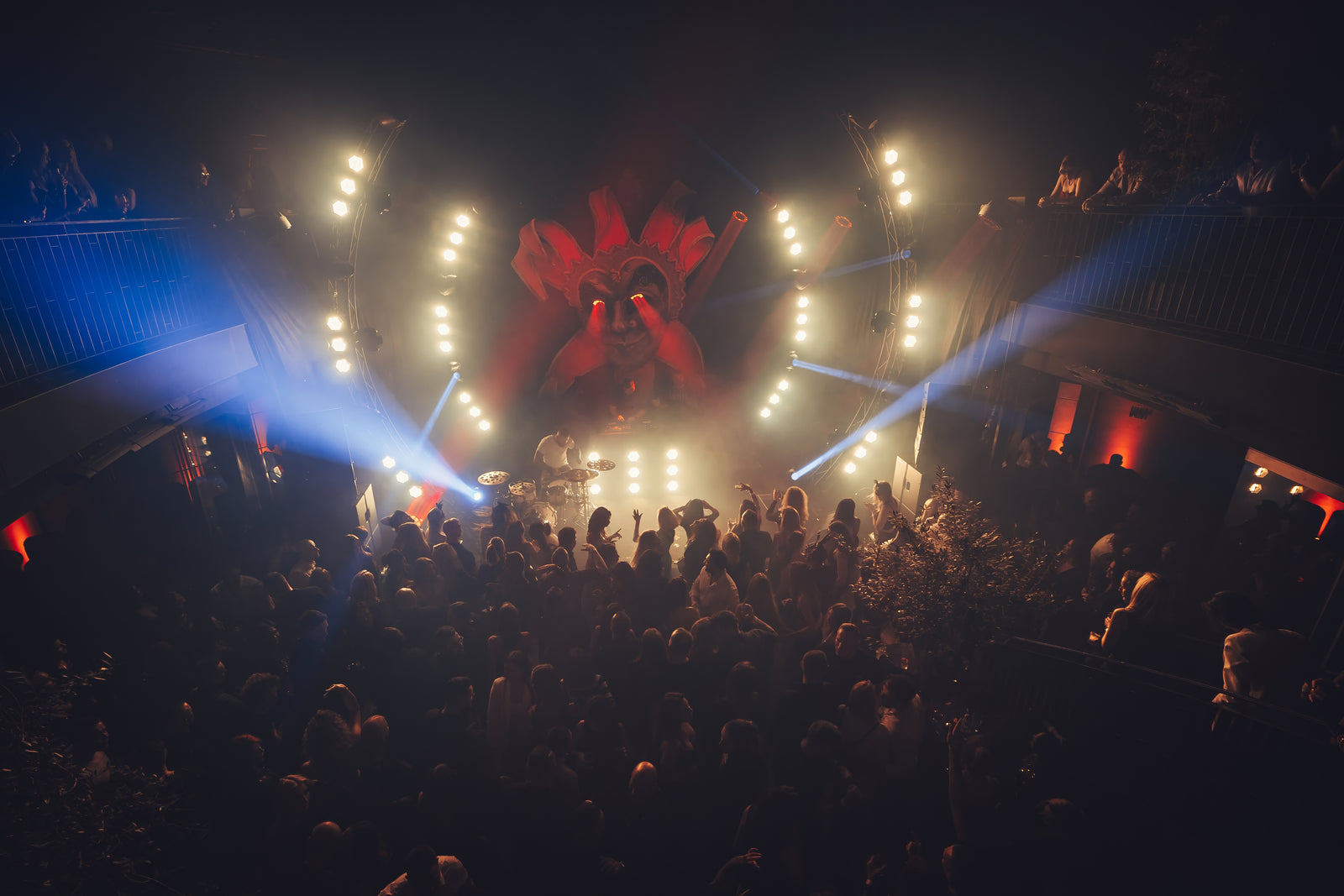

Sounds of Poznań
