Photometrics
- Light source
- MAIN: 440W RGBWLA | NARROW: 40W RGBW
- Beam angle
- MAIN: 90° | NARROW: 3.8°
- Colour temperature
- MAIN: 2 000-6 500 K | NARROW: 6 000 K
- Total luminous flux
- 8 000 lm
- CRI
- >95 (calibrated mode)

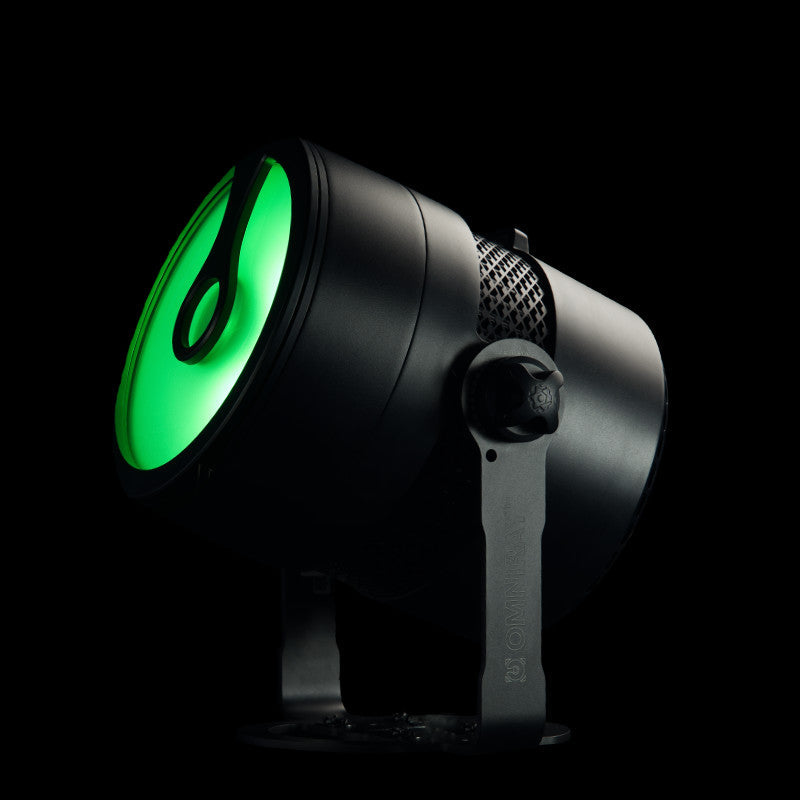

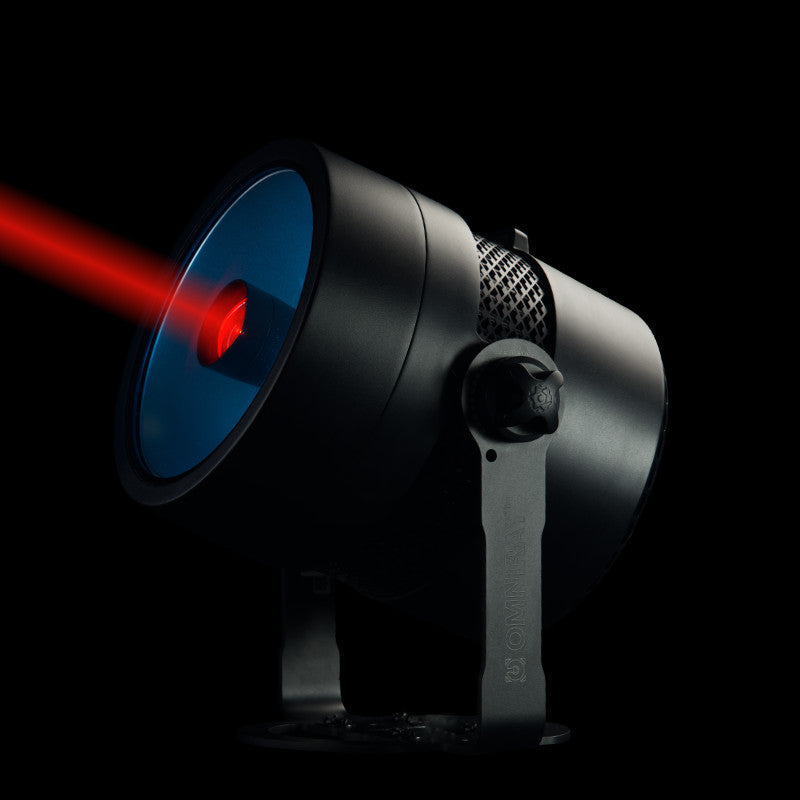

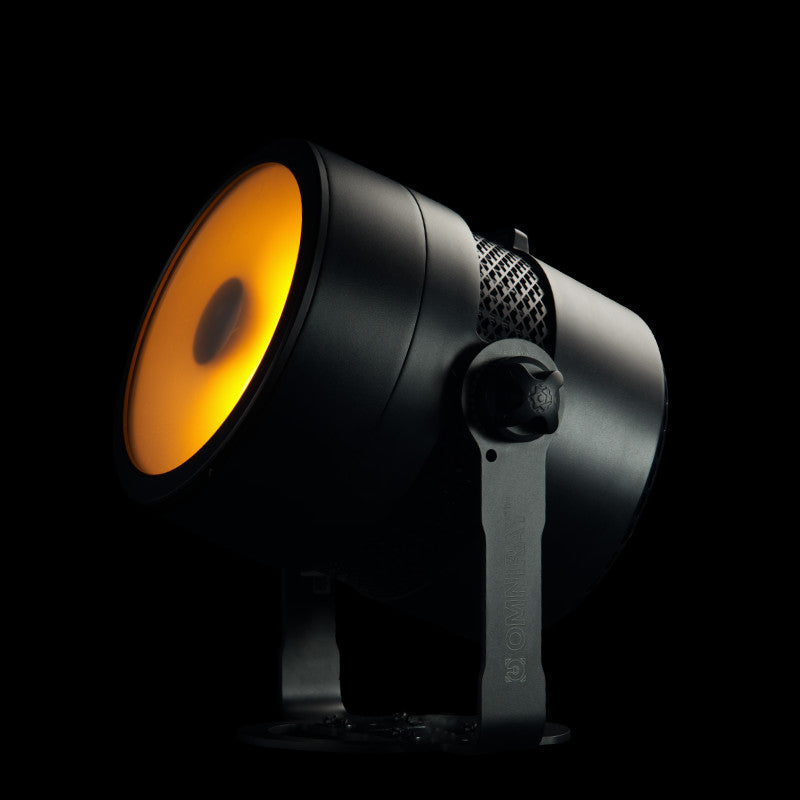

OMNIRAY™
IP65 hybrid power. Broad high-CRI wash meets a razor-sharp 3.8° mid-air beam.
Couldn't load pickup availability
Pickup available at Portman Main Warehouse
Usually ready in 24 hoursPairs well with
Original, high-quality, patented design product.
2-Year Warranty
Pure power, perfect blend
Command the stage with a 440W RGBWLA main light source. Exceptional wash uniformity and deep color saturation that paints the entire scene with fewer units.

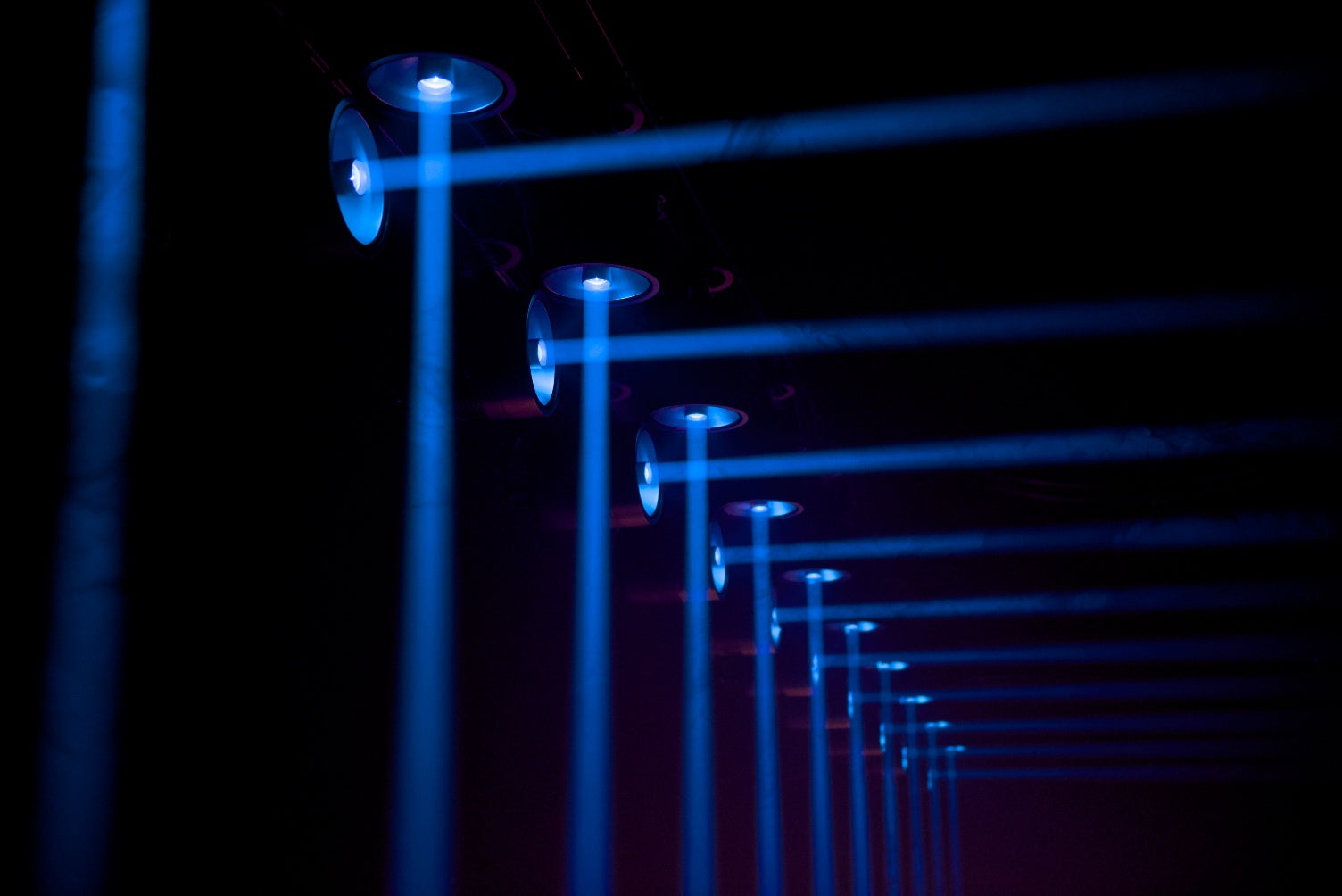

Slice the air with narrow beams
Something you won't find in standard PAR/wash fixtures. A piercing, ultra-narrow beam engineered to slice through the air and create spectacular mid-air effects with the 3.8° 40W RGBW central source.
Use magnetic decorative elements and optical diffusers
to completely redesign the appearance of Omniray™ to match any stage concept.
... and play!
Magnetic Optics
Attach magnetic diffusers, Fresnel lenses, and decorative overlays - securely locked at every 45° angle.

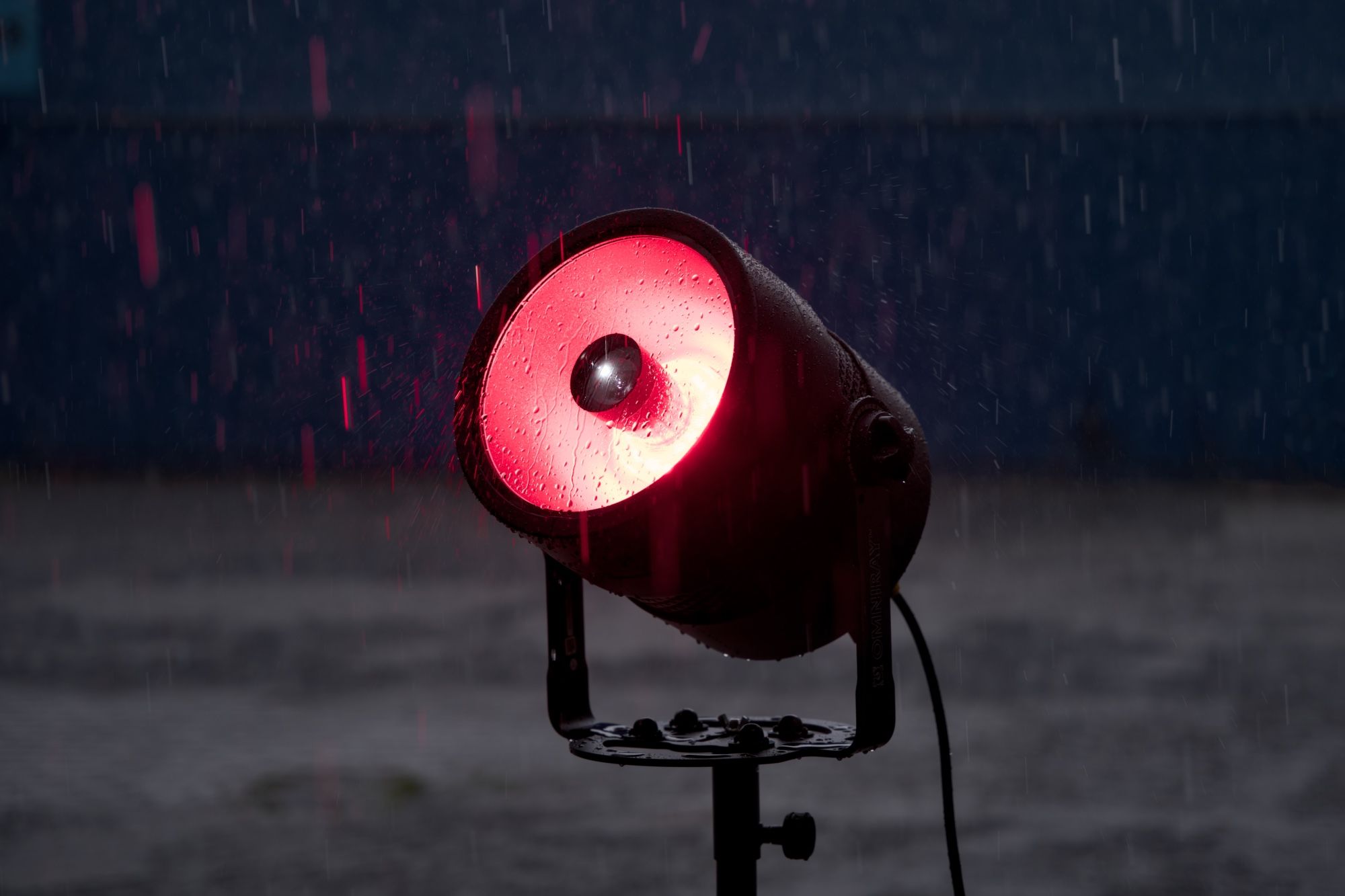

IP65
All-weather housing built for dust-proof performance and full outdoor exposure.
PRECISE TILT
Precise tilt adjustment powered by a heavy-duty pinion gear.

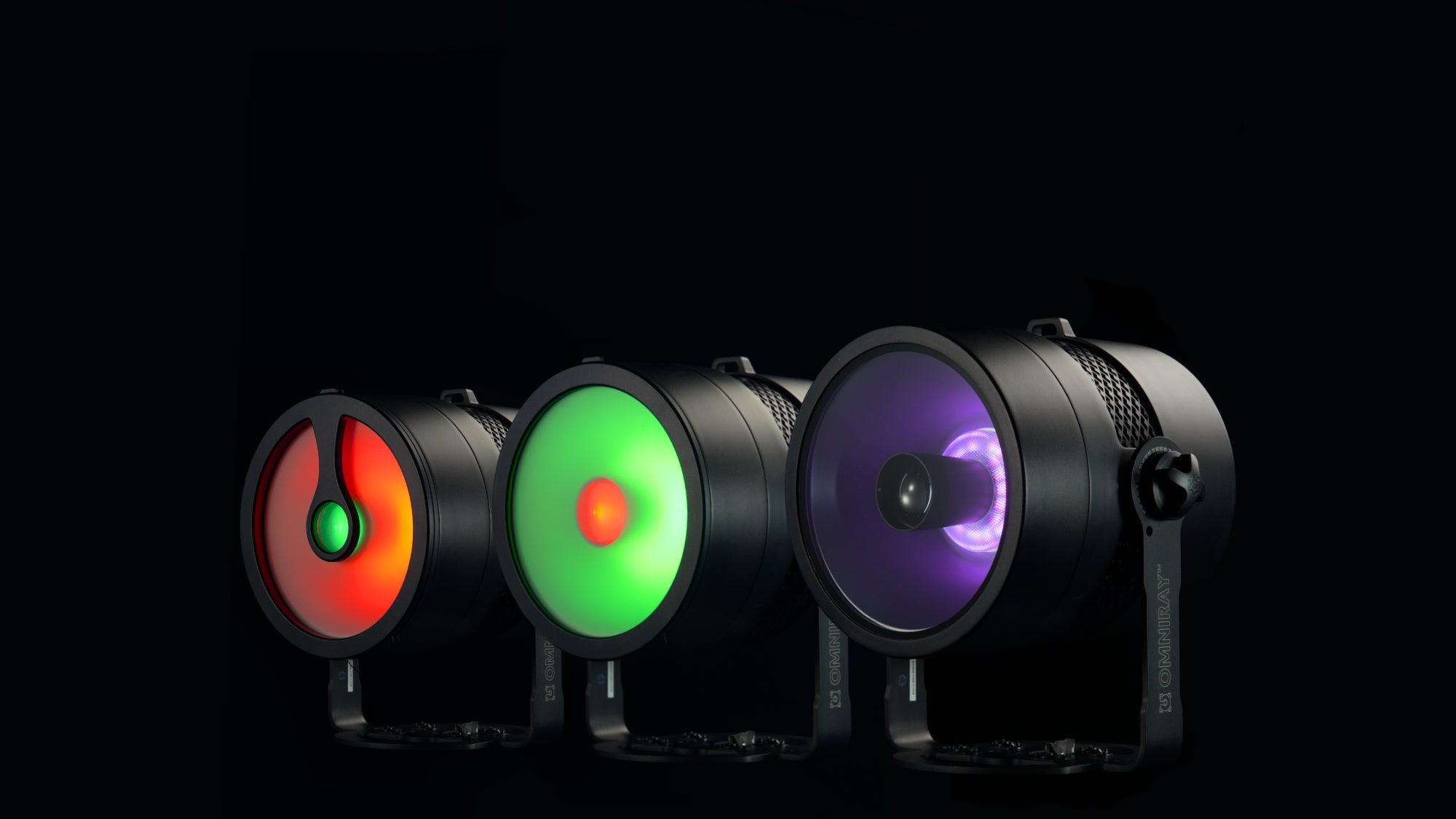

MAIN LIGHT SOURCE
440W high-CRI RGBWLA wash light source delivering highly saturated colors, tungsten emulation, and dedicated studio mode.
3.8° NARROW BEAM
40W RGBW narrow beam to create mid-air effects

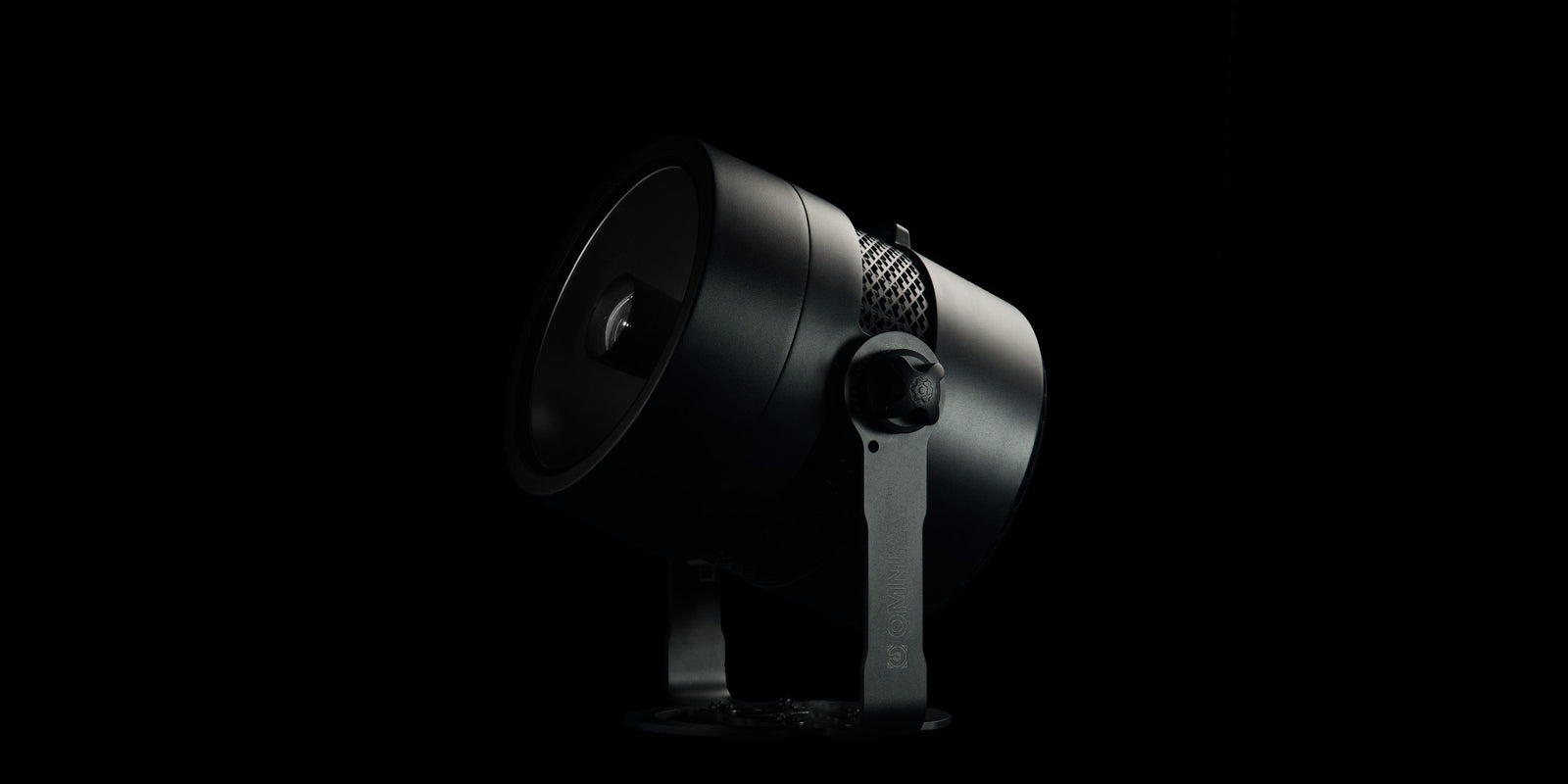

OFF

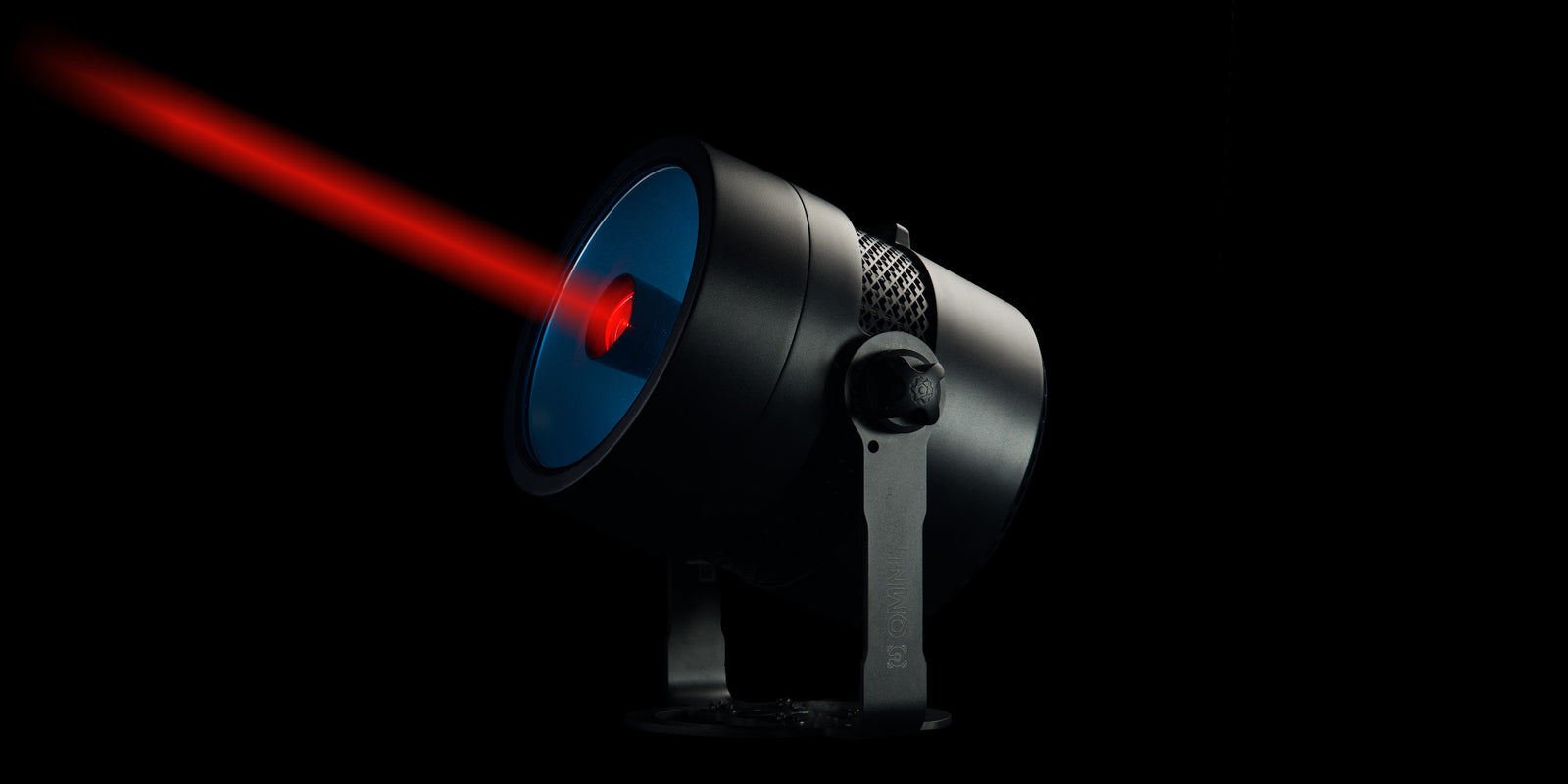

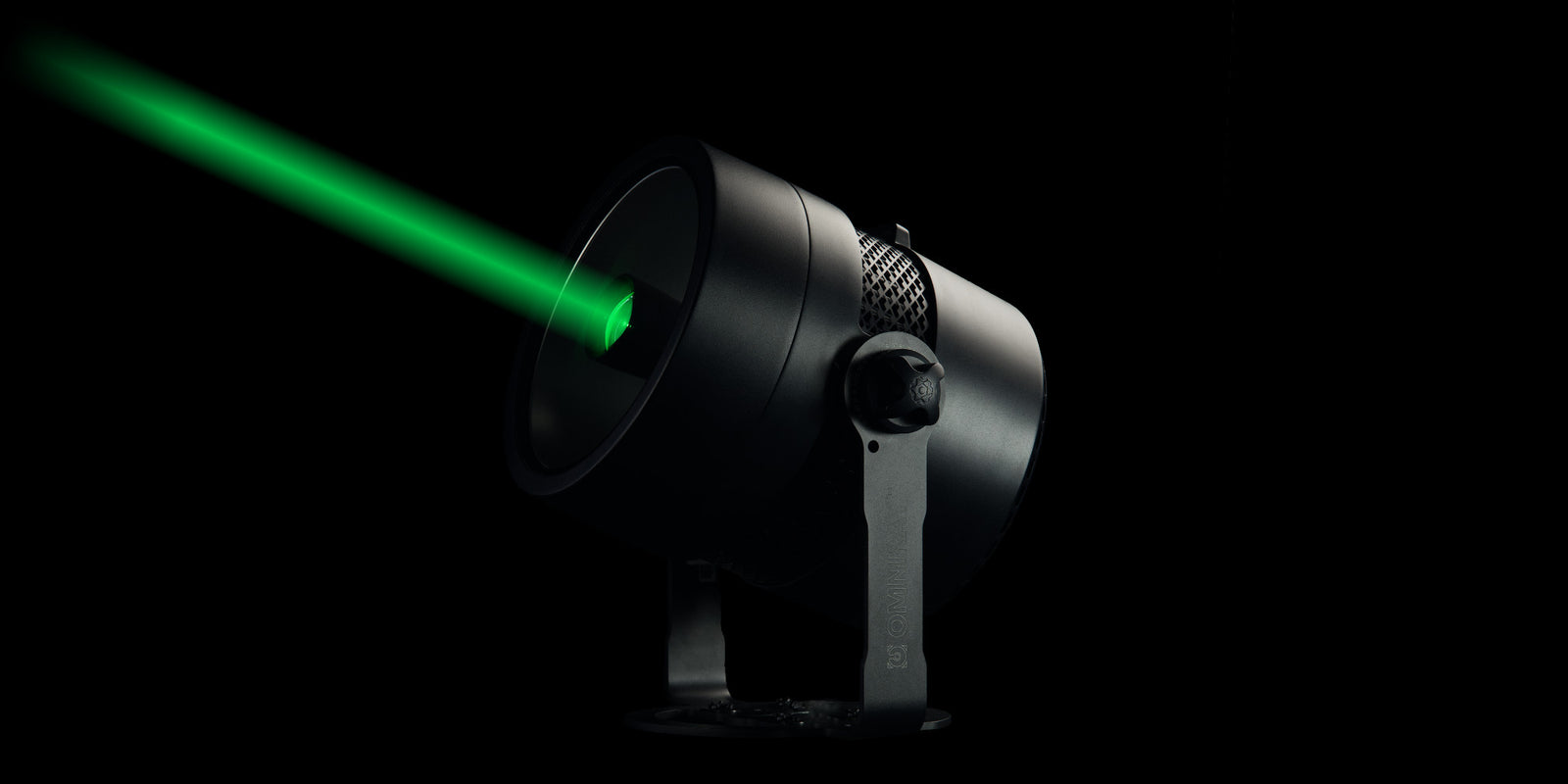

ON - NARROW BEAM
ON - NARROW BEAM

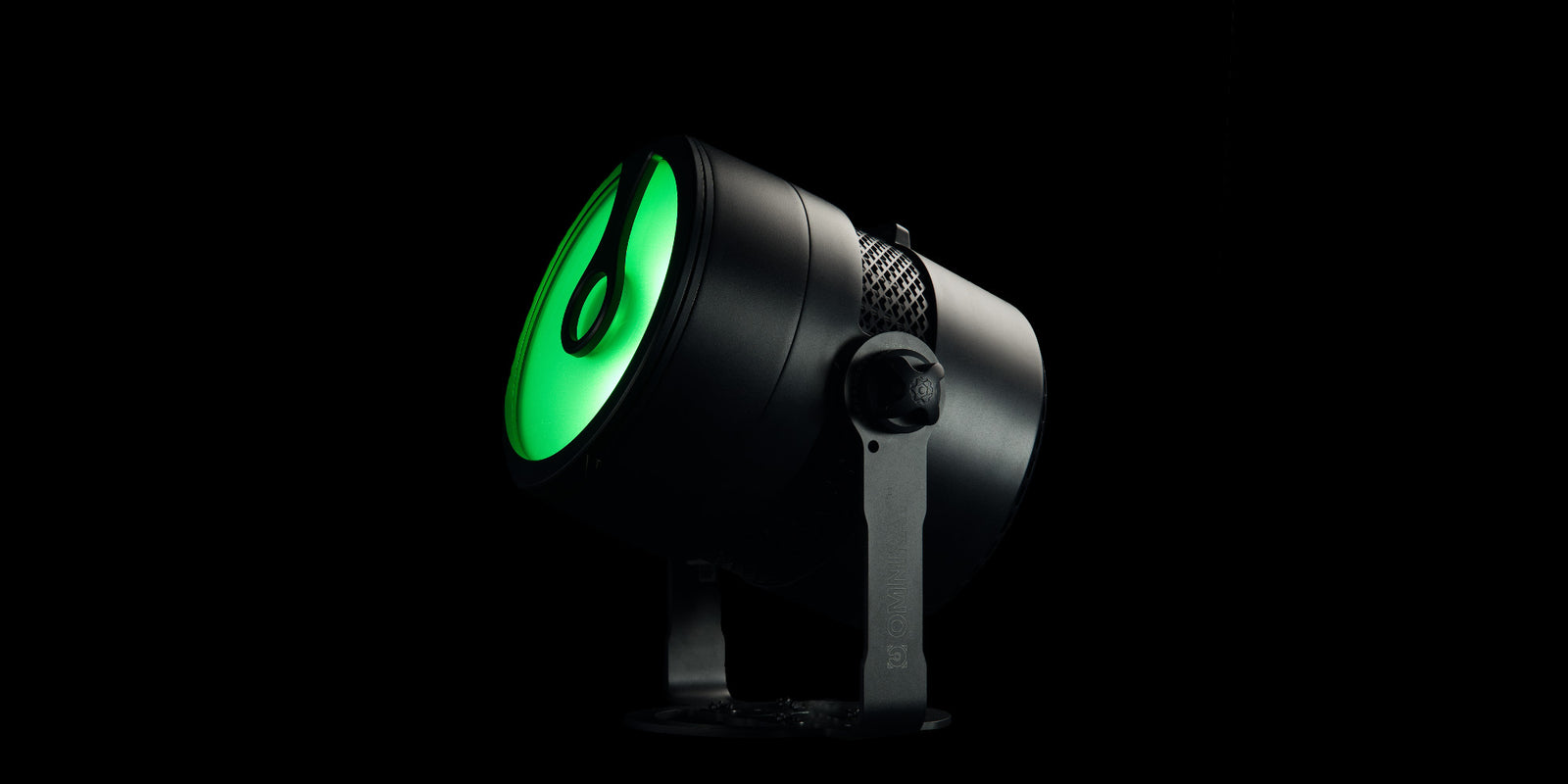

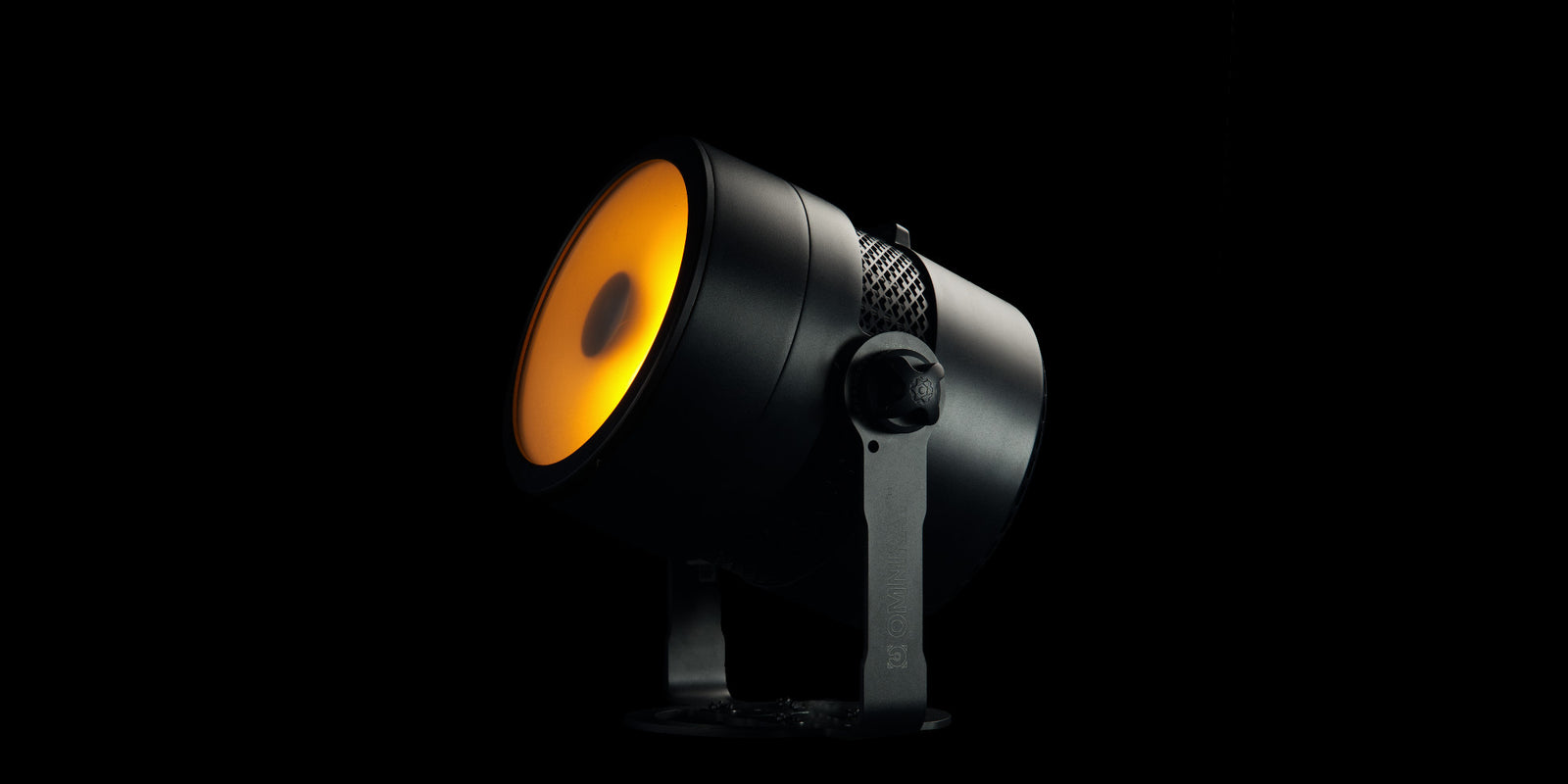

ON - MAIN ON - MAIN + DIFFUSER ON - MAIN + DIFFUSER + OMNICLE
ON - MAIN ON - MAIN + DIFFUSER ON - MAIN + DIFFUSER + OMNICLE
Specification
Control & Programming
- Protocols
- DMX512, RDM, CRMX(optional)
- DMX modes
- 8
- DMX channels
- 8-28
- Interface
- OLED display, highlighted touch buttons, Colour Feedback System™ – fixture’s auto information status
- Additional features
- macros, influencer/follower mode
Electrical
- Input voltage
- 100-240 V 50/60 Hz
- Power consumption
- 450 W
- Connectors
- AC power in/thru: powerCON TRUE1
Physical construction
- Dimensions
- 40 x 44 x 29 cm (15.8 x 17.3 x 11.4 in)
- Weight
- 14 kg (30.9 lbs)
- Rigging
- precise tilt yoke; omega bracket with 1/4 fast locks (optional)
- IP rating
- 65
- Cooling
- fan
Compliance & support
- Compliance
- CE, ROHS, ETL, UL, UKCA
- Warranty
- 24 m
Accessories
- Included
- Fixture
AC power cord (PowerCon TRUE 1/no AC plug)
User manual
OMNICLE™ – decorative magnetic cover - Optional
- Rigging:
omega bracket with 1/4 fast locks
Optics – magnetic:
Diffuser 20º
Diffuser 10×60º (elliptical)
Micro Fresnel F220
Control features:
CRMX
Packing:
flight case (4-units)
soft case bag (1-unit)

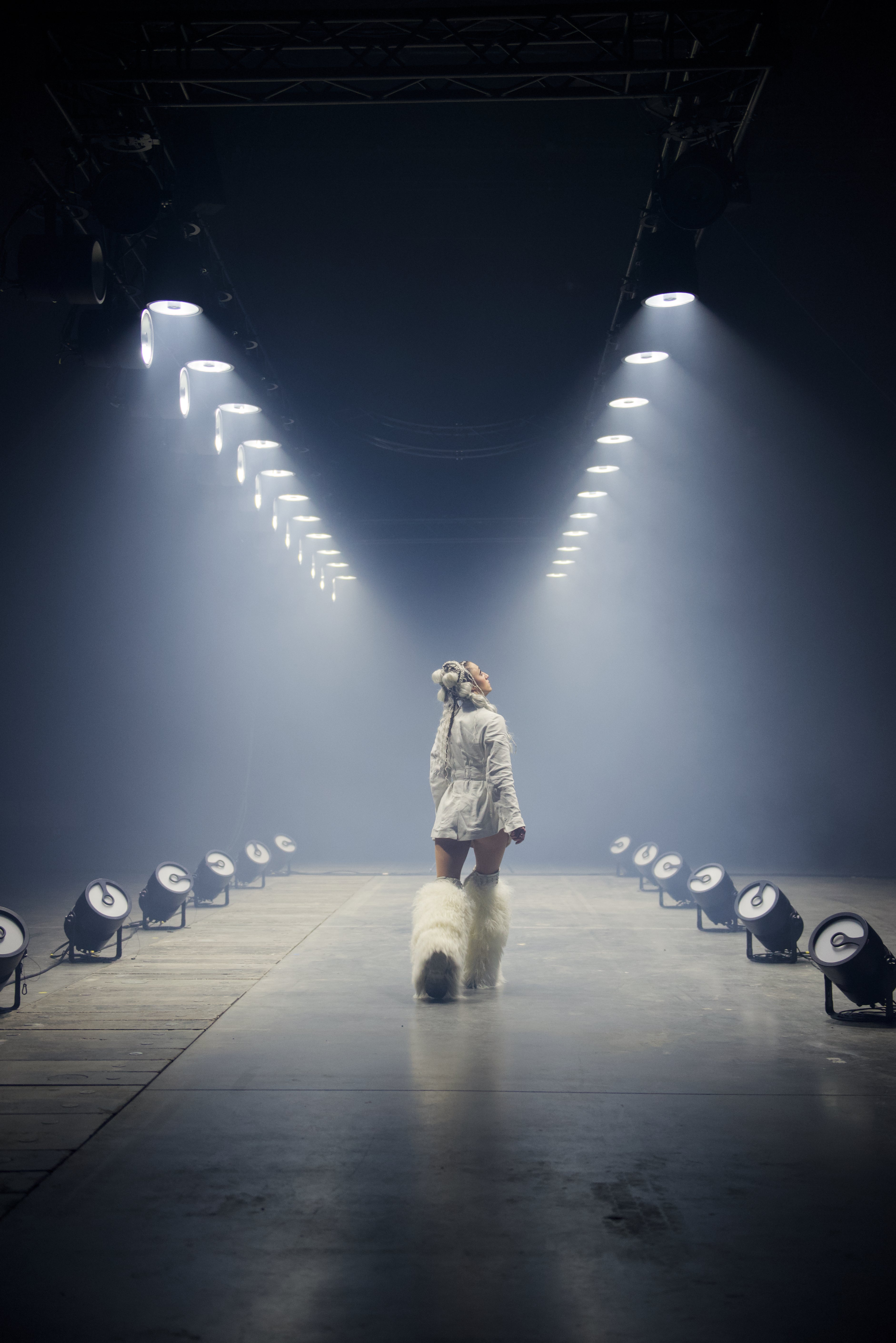

OMNIRAY™ in action

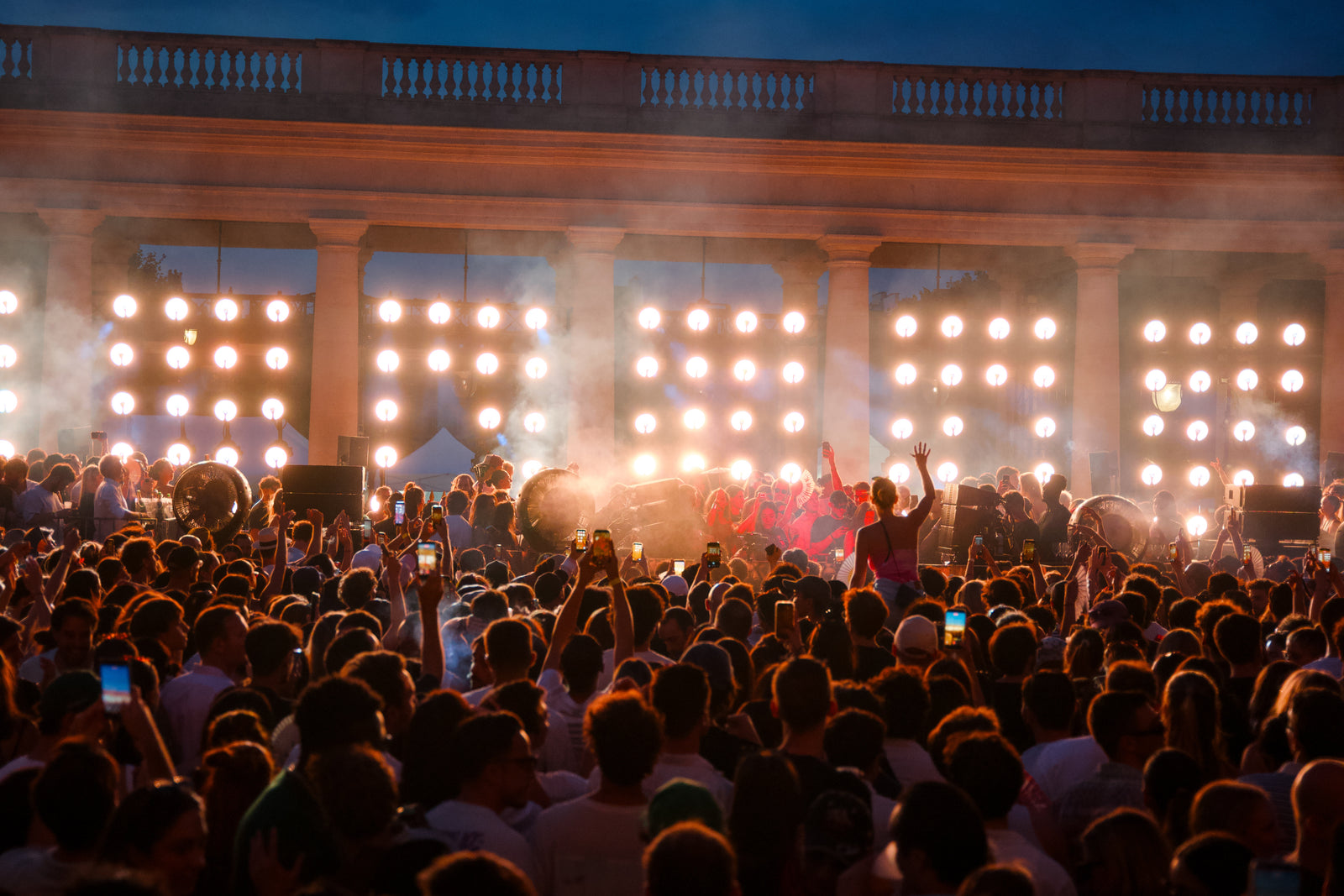

Peggy Gou

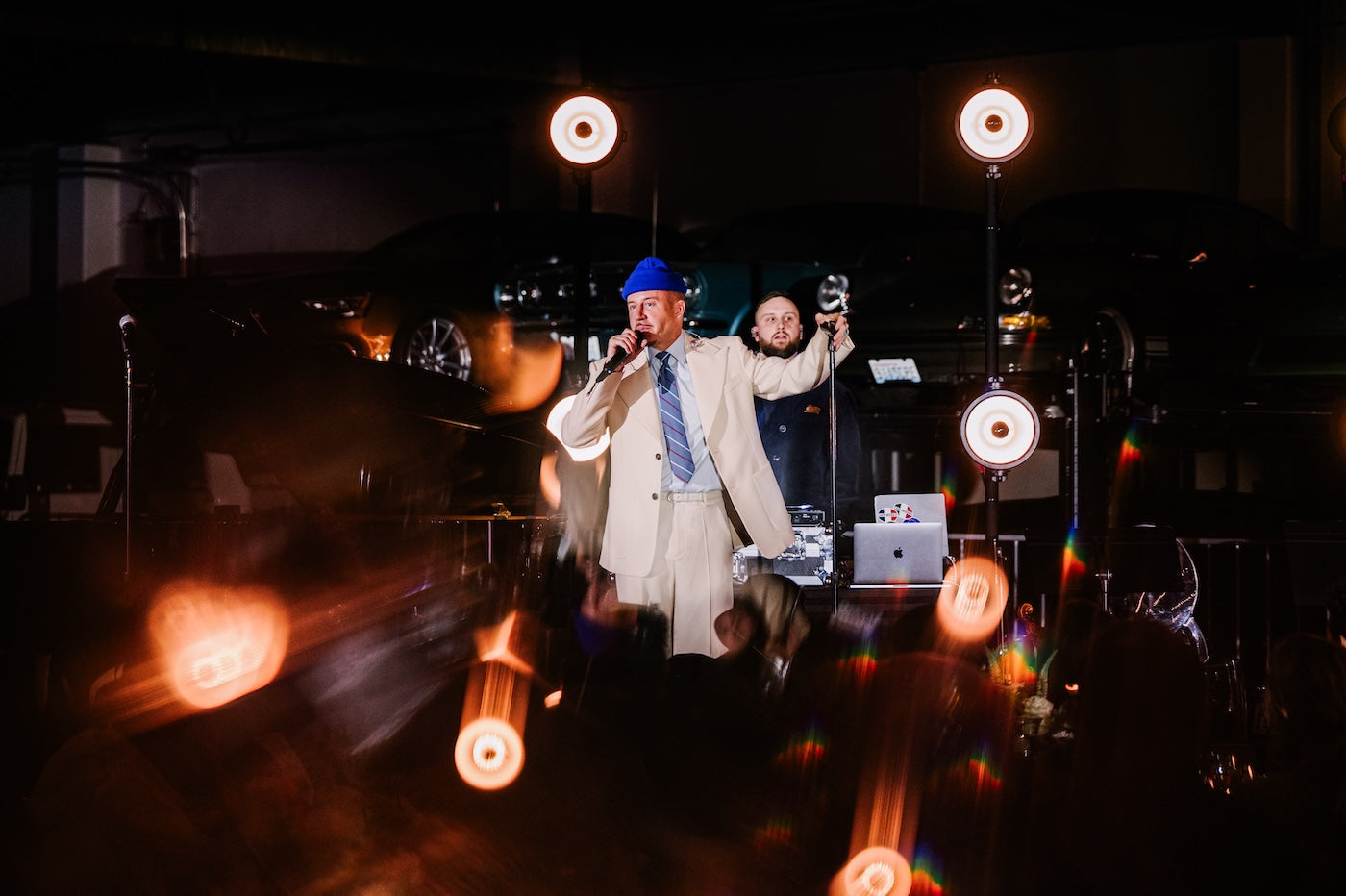

Macklemore

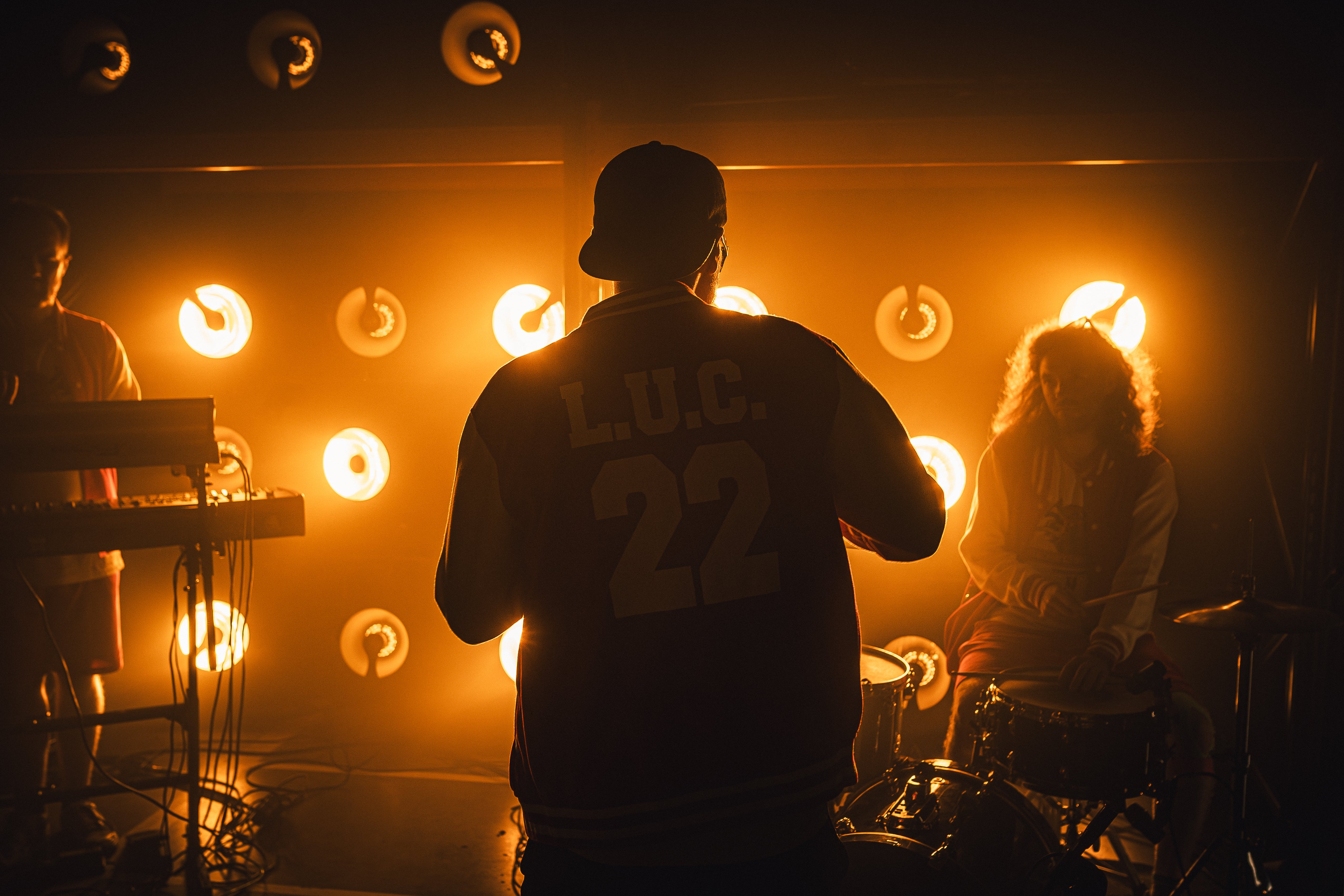

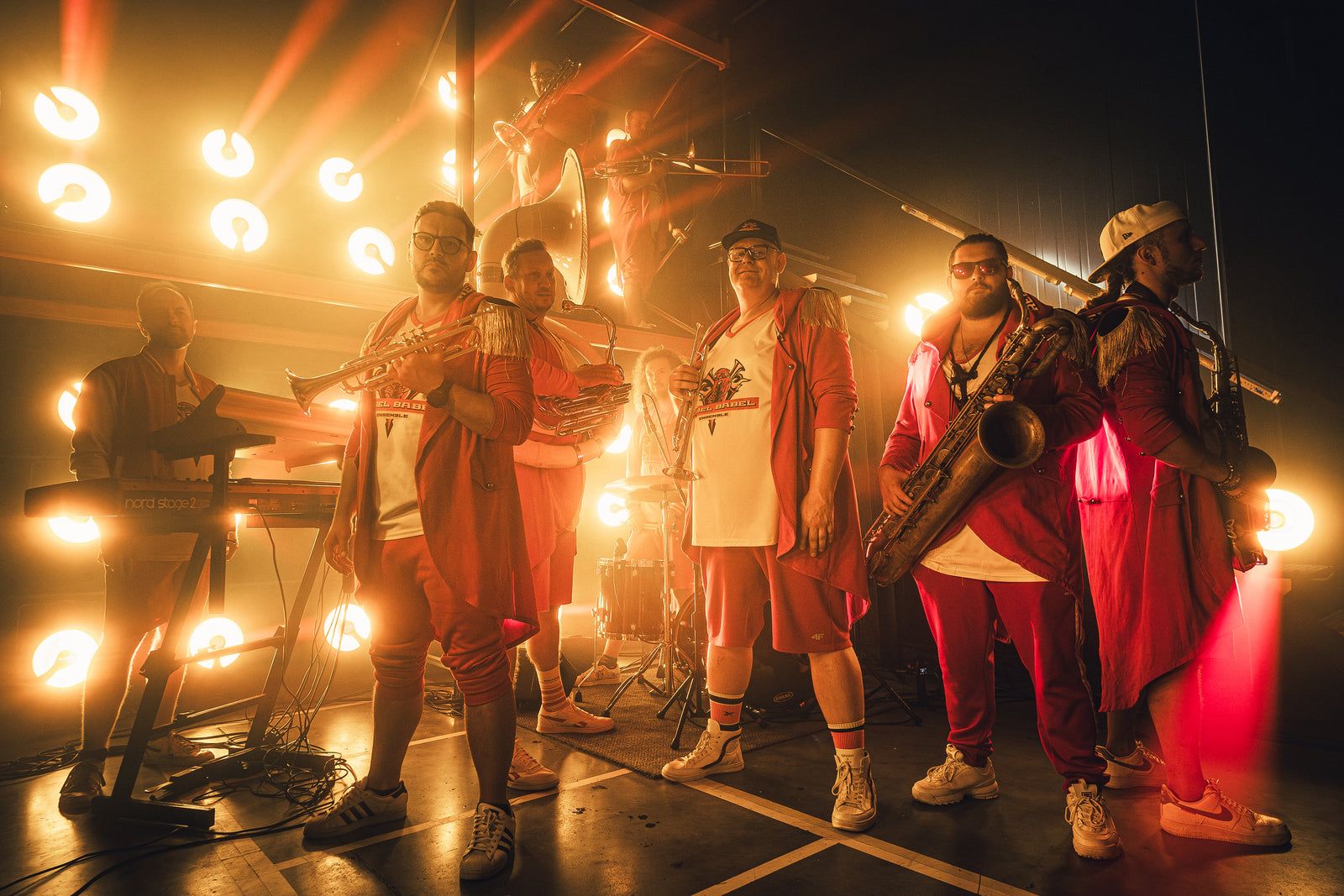

Rebel Babel

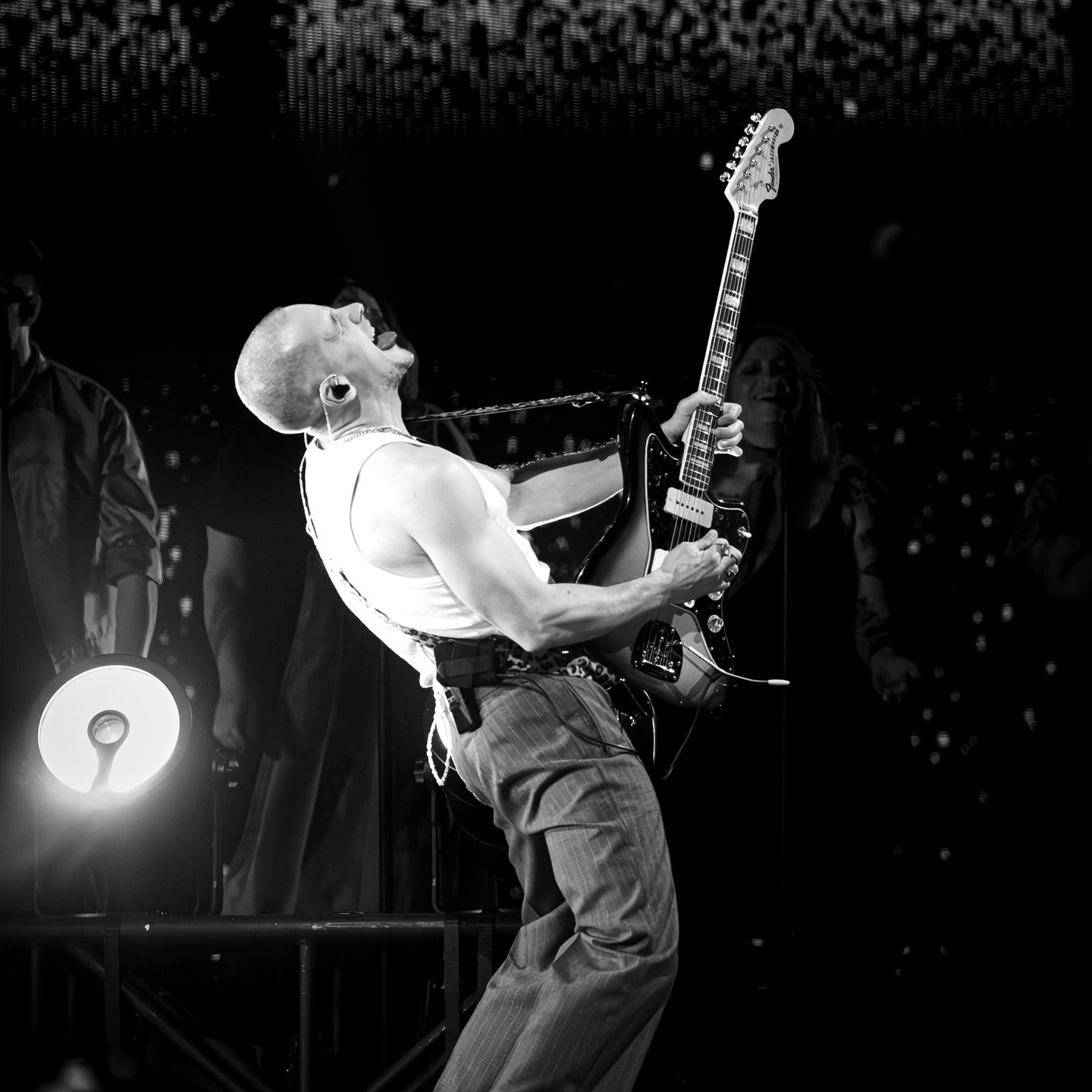

Krzysztof Zalewski

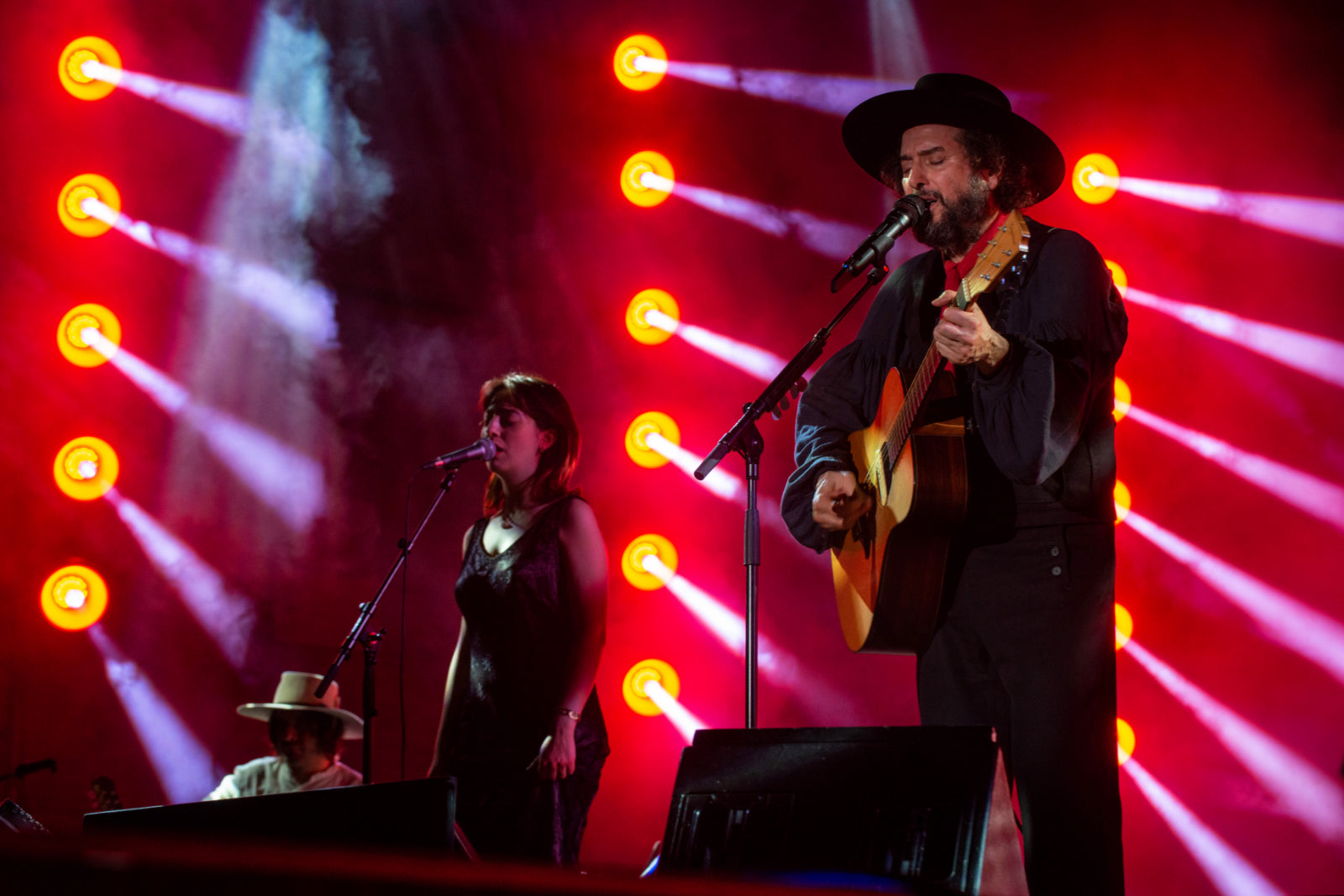

Venere in Musica Rome
