Photometrics
- Light source
- MAIN: 6x60W haloLED™ | GLOW: 6x12W RGBW
- Beam angle
- 94°
- Colour temperature
- MAIN: 1 600–3 200 K | GLOW: R G B + White 6000K
- Total luminous flux
- MAIN: 5 500 lm | GLOW: 1 200 lm
- CRI
- >80

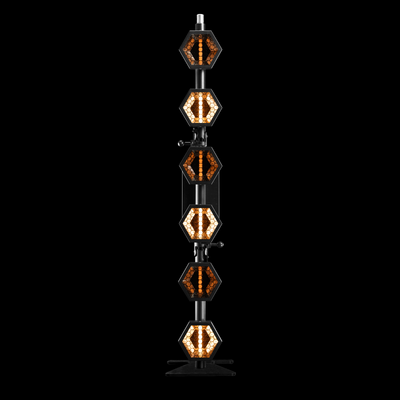

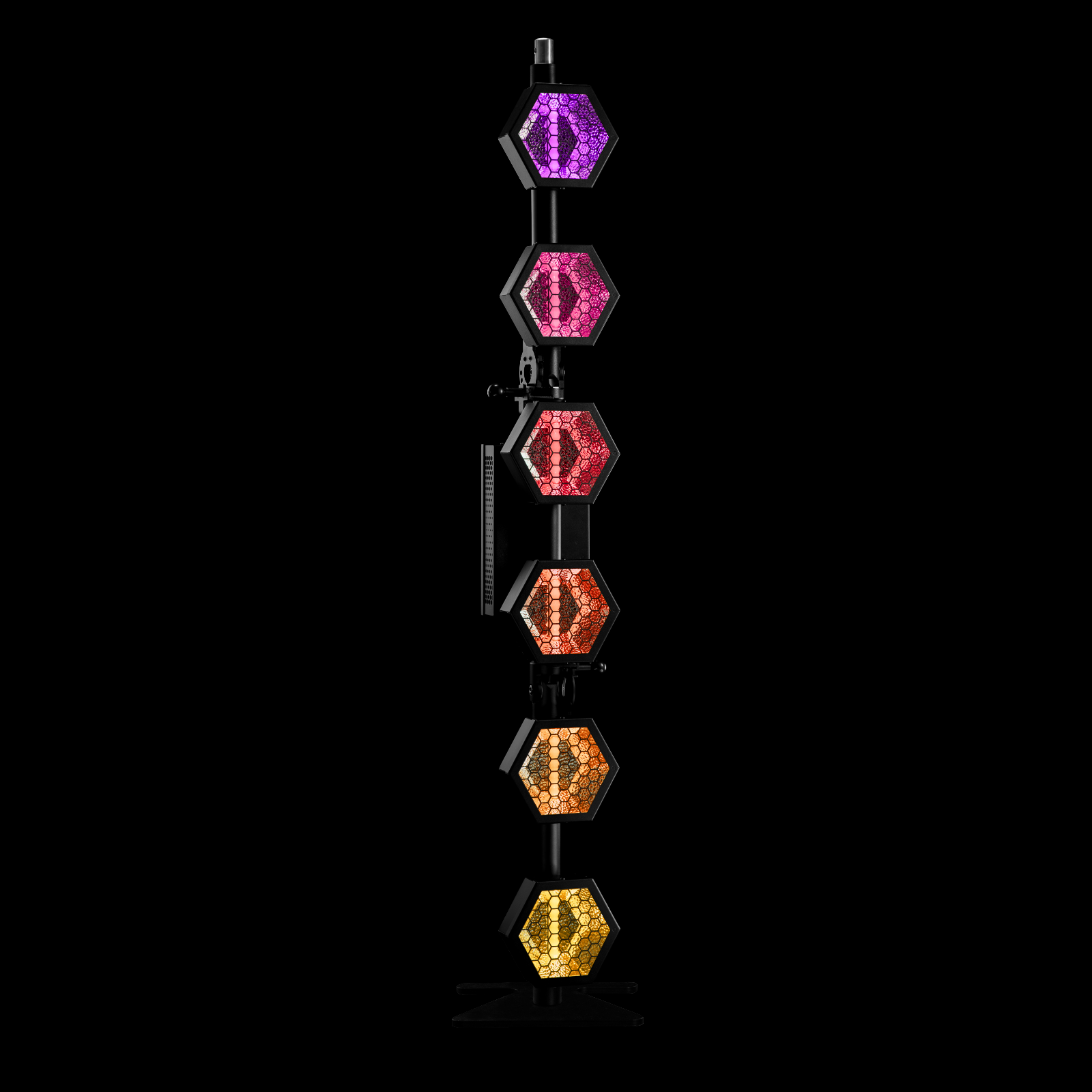

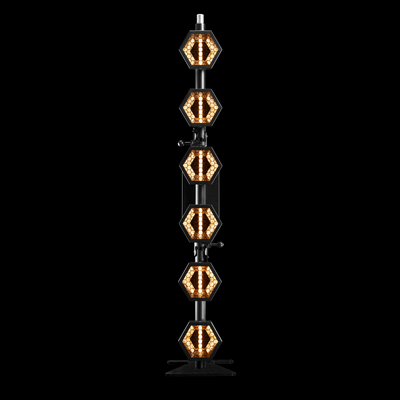

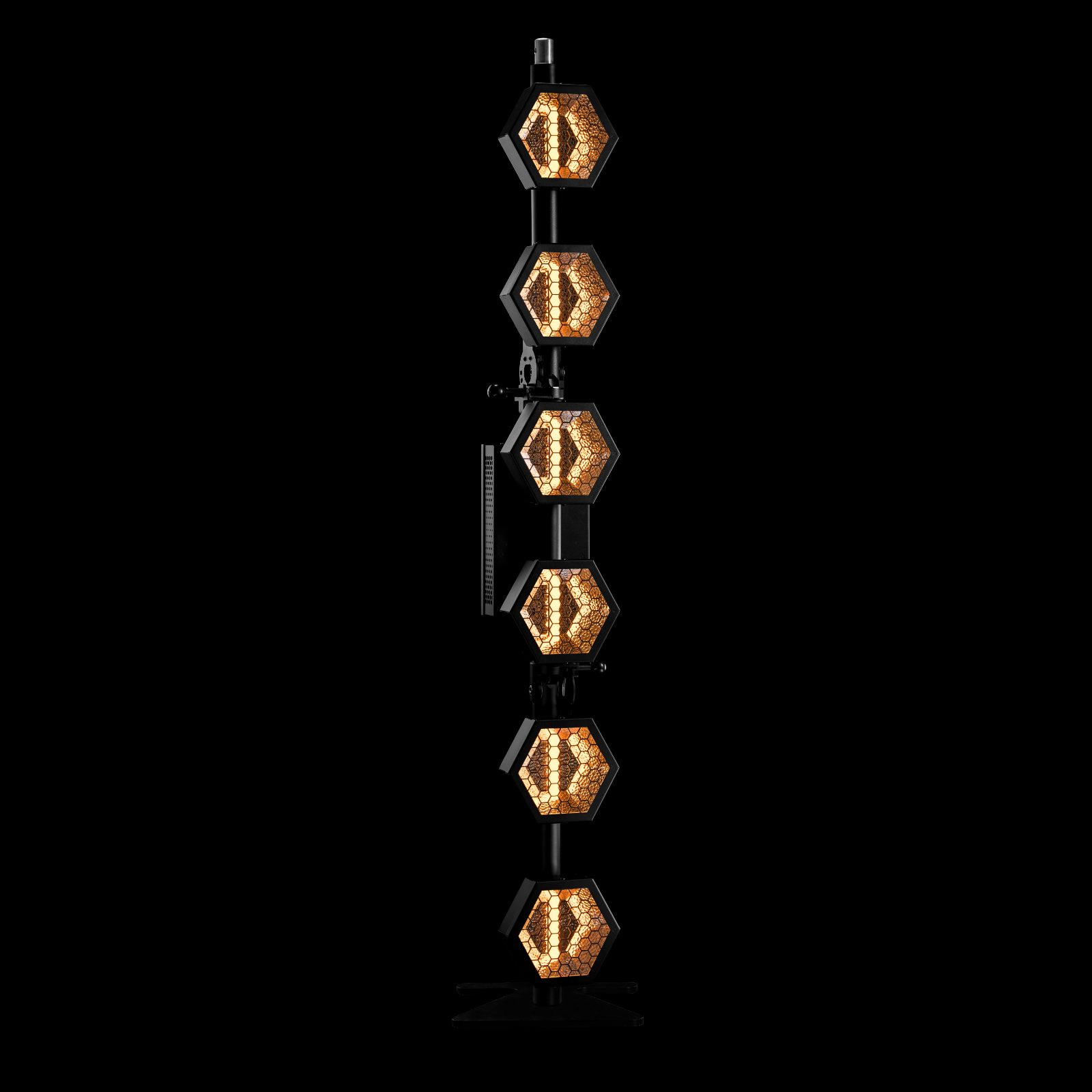

P2 EVO™
Vertical presence redefined. Heavy-duty linear tungsten aesthetics for bold rigs.
Couldn't load pickup availability
Pickup available at Portman Main Warehouse
Usually ready in 24 hoursPairs well with
Original, high-quality, patented design product.
2-Year Warranty
Beautiful power of light
Standing human-tall, P2 EVO™ is a massive 6-pixel scenic bar designed to transform empty spaces instantly. Packed with our signature 60W haloLED™ tungsten emulation and 12W RGBW inverted aura glow (identical pixel design to P1 EVO™ and EVO ELEMENT™).
Modularity on the next level
Built-in hinges every two pixels allow the fixture to curve forward or backward, unlocking dynamic 3D structural forms that break away from traditional straight LED bars.
Versatile mounting options
Connect them together, stand vertically on the floor, suspend from top trusses, or back-mount directly onto stage structures.
Try me!

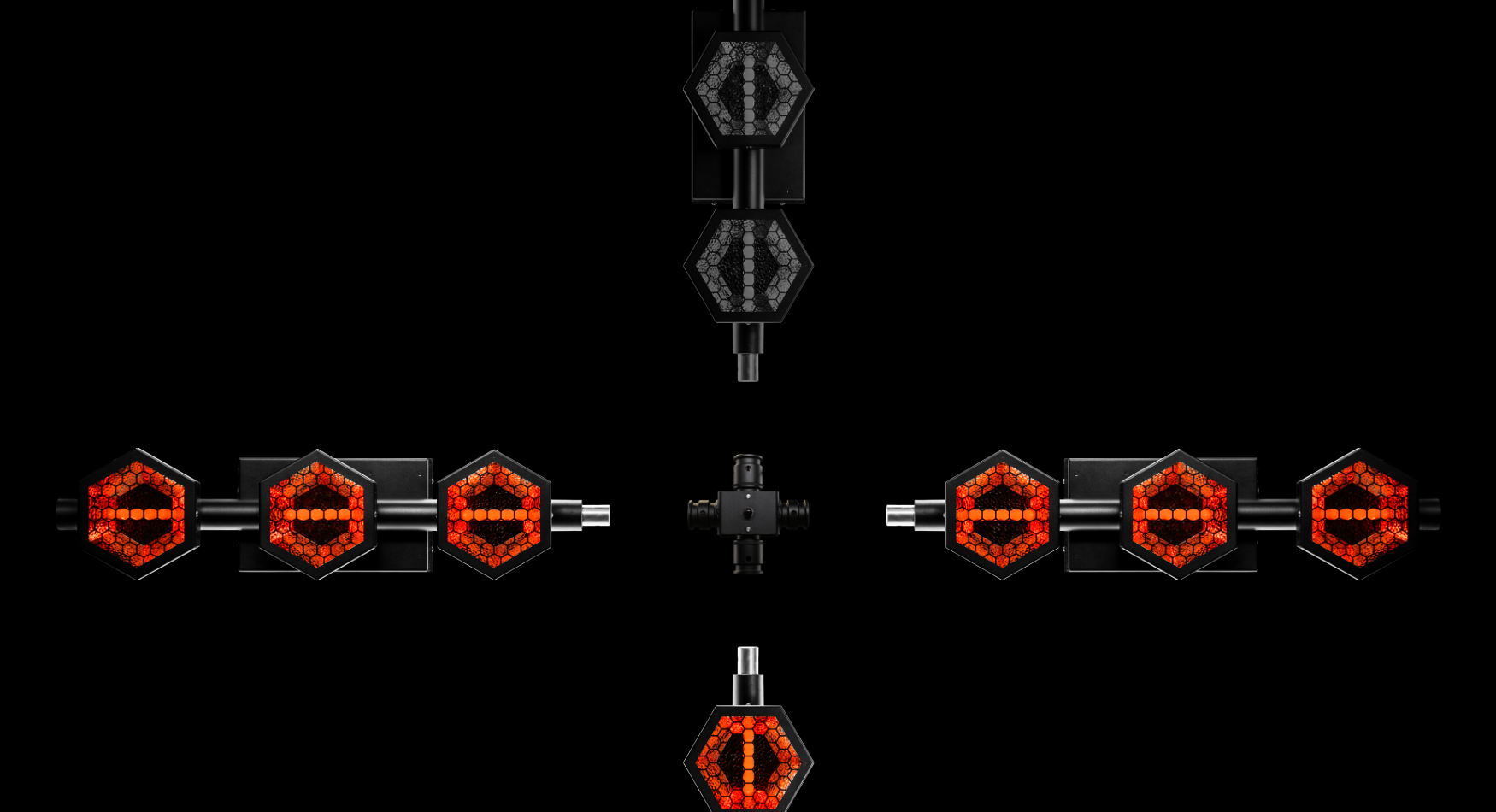

CONNECTOR
Truss-style top and bottom connectors for fixture coupling with perfect pixel-pitch spacing, or bracket mounting.
hinges
Robust 2-pixel articulation hinges for multi-angle forward and backward bending.

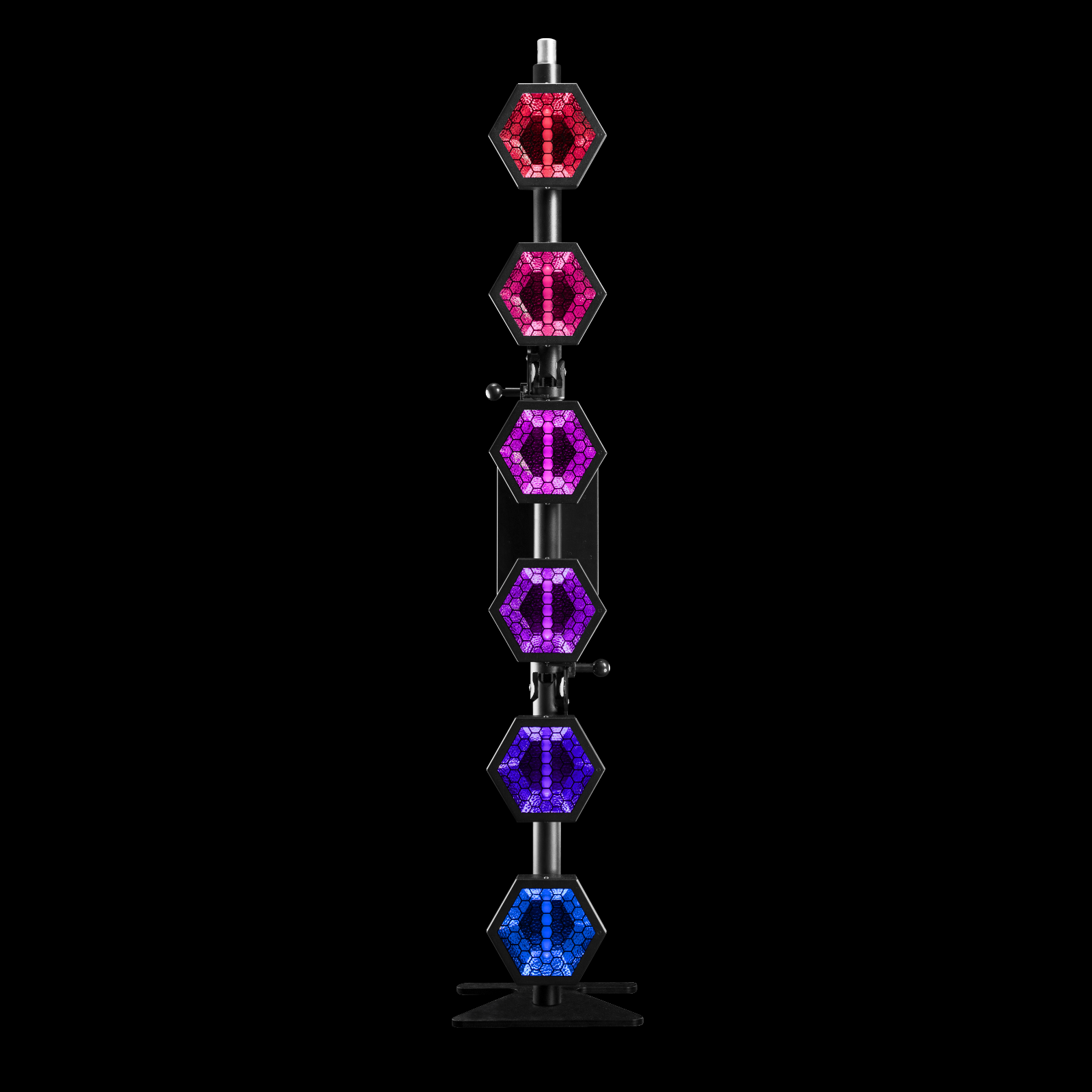

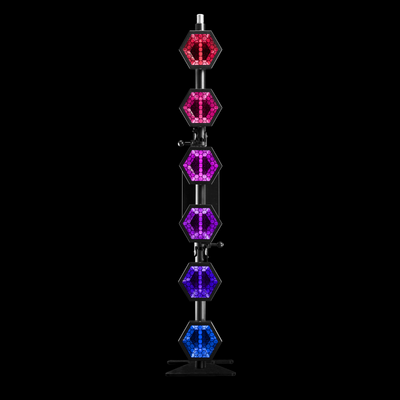

GLOW
12W RGBW background glow powered by 16-bit color blending and inward-facing light sources, painting the entire reflector in stunning, seamless color.
MAIN haloLED™
60W warm white true tungsten emulated LED source with red-shift effect and custom diffuser to boost retro style.

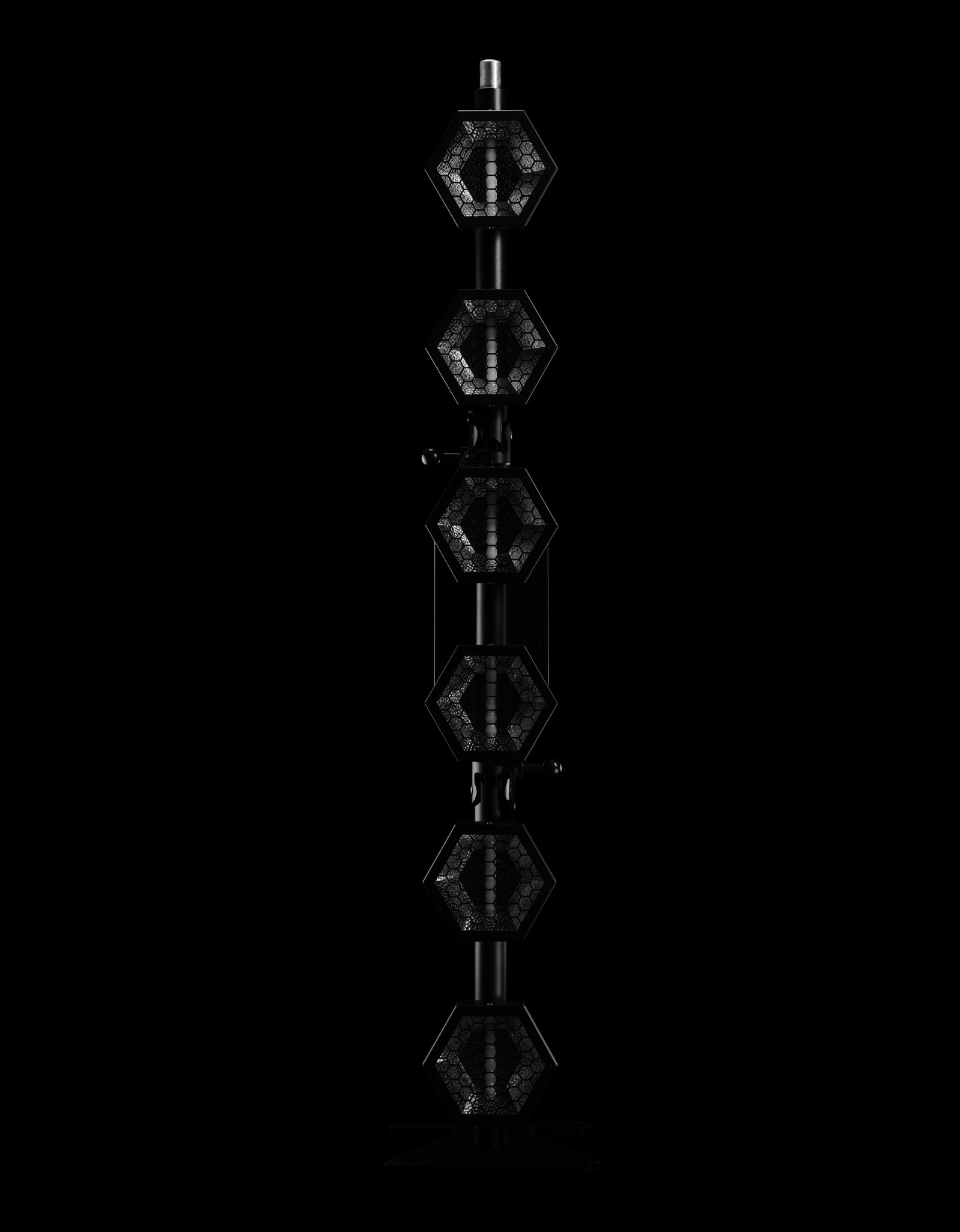

OFF
ON - haloLED™ SUBTLE WARMTH
ON - haloLED™ MORE WARMTH!

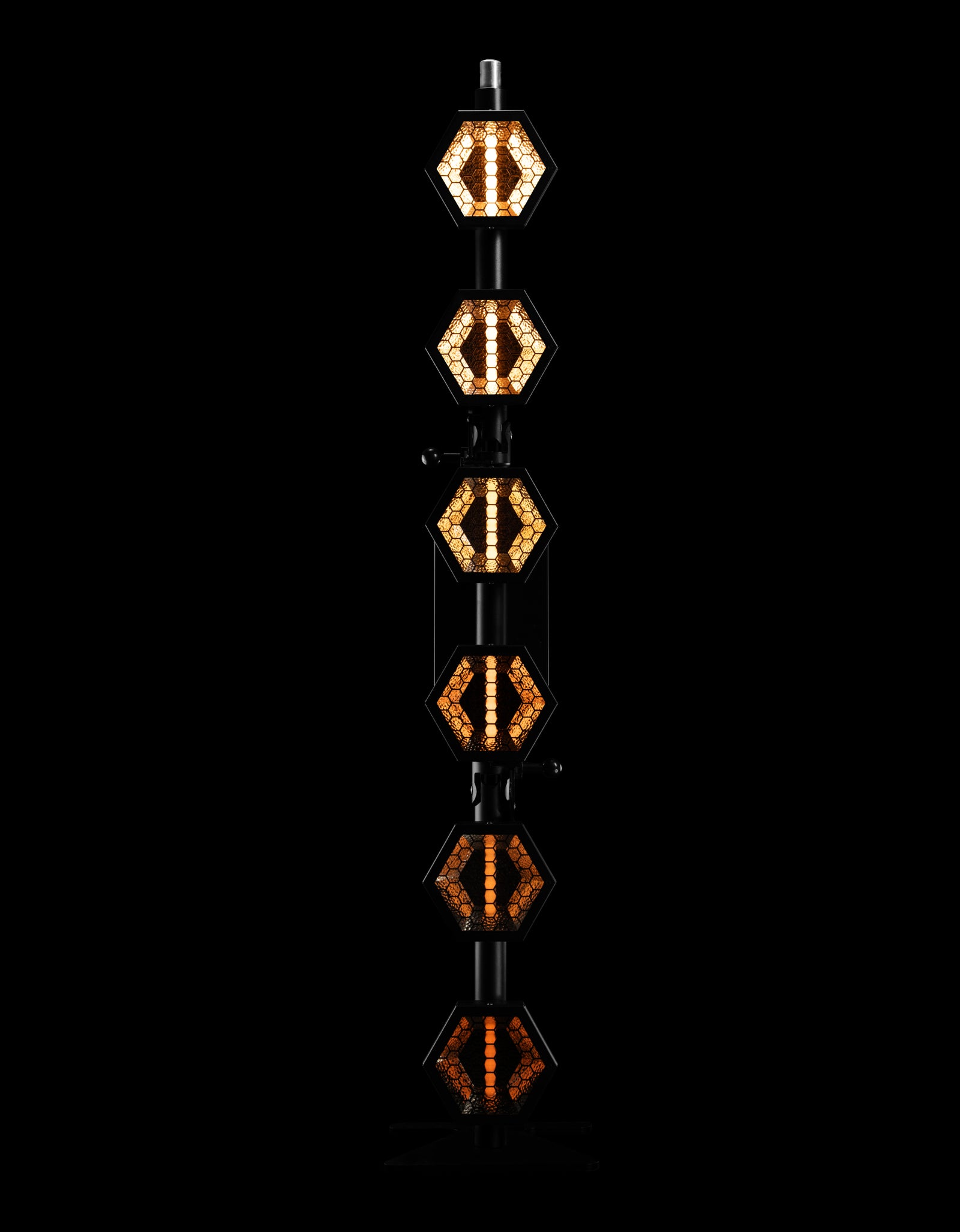

ON - haloLED™

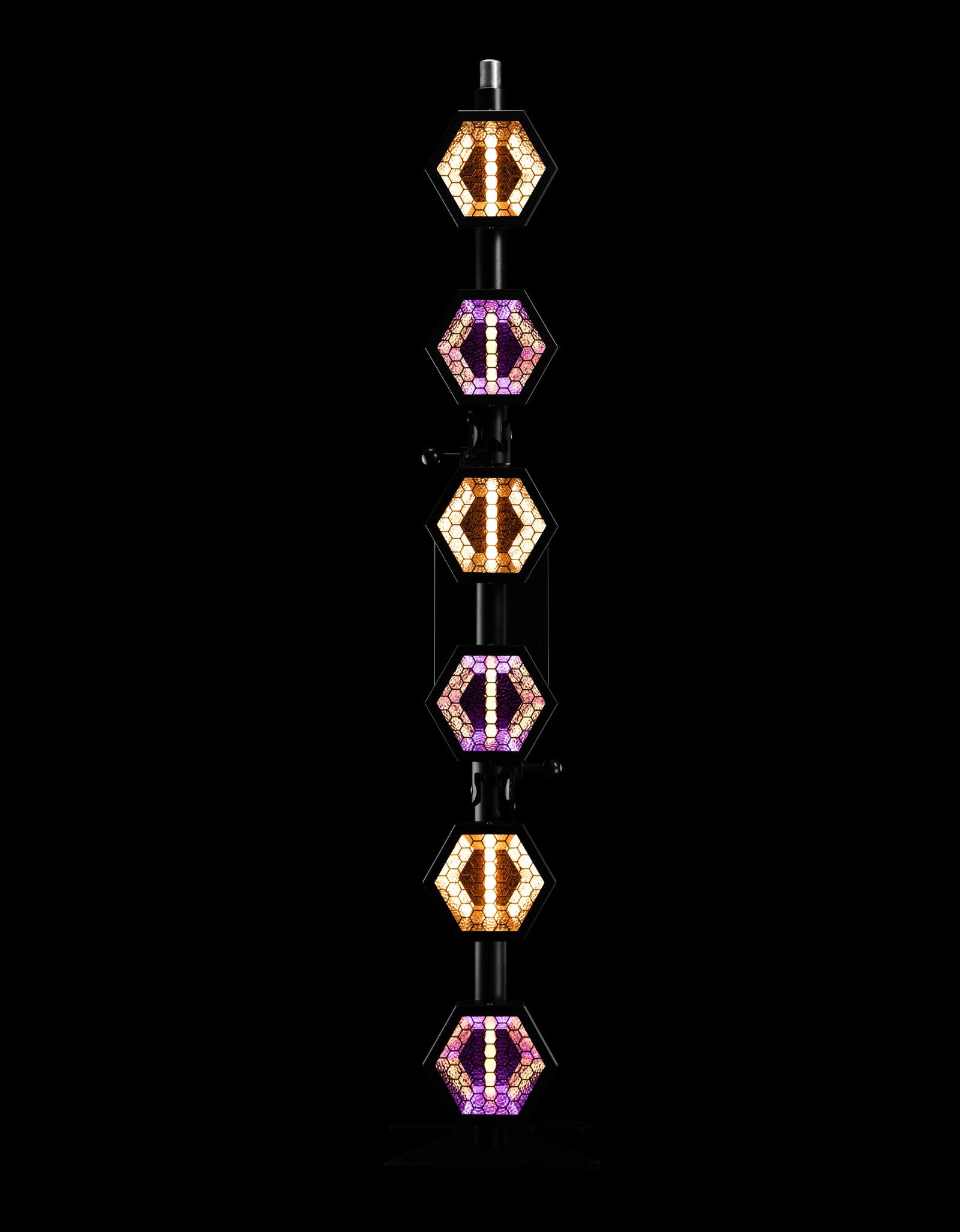

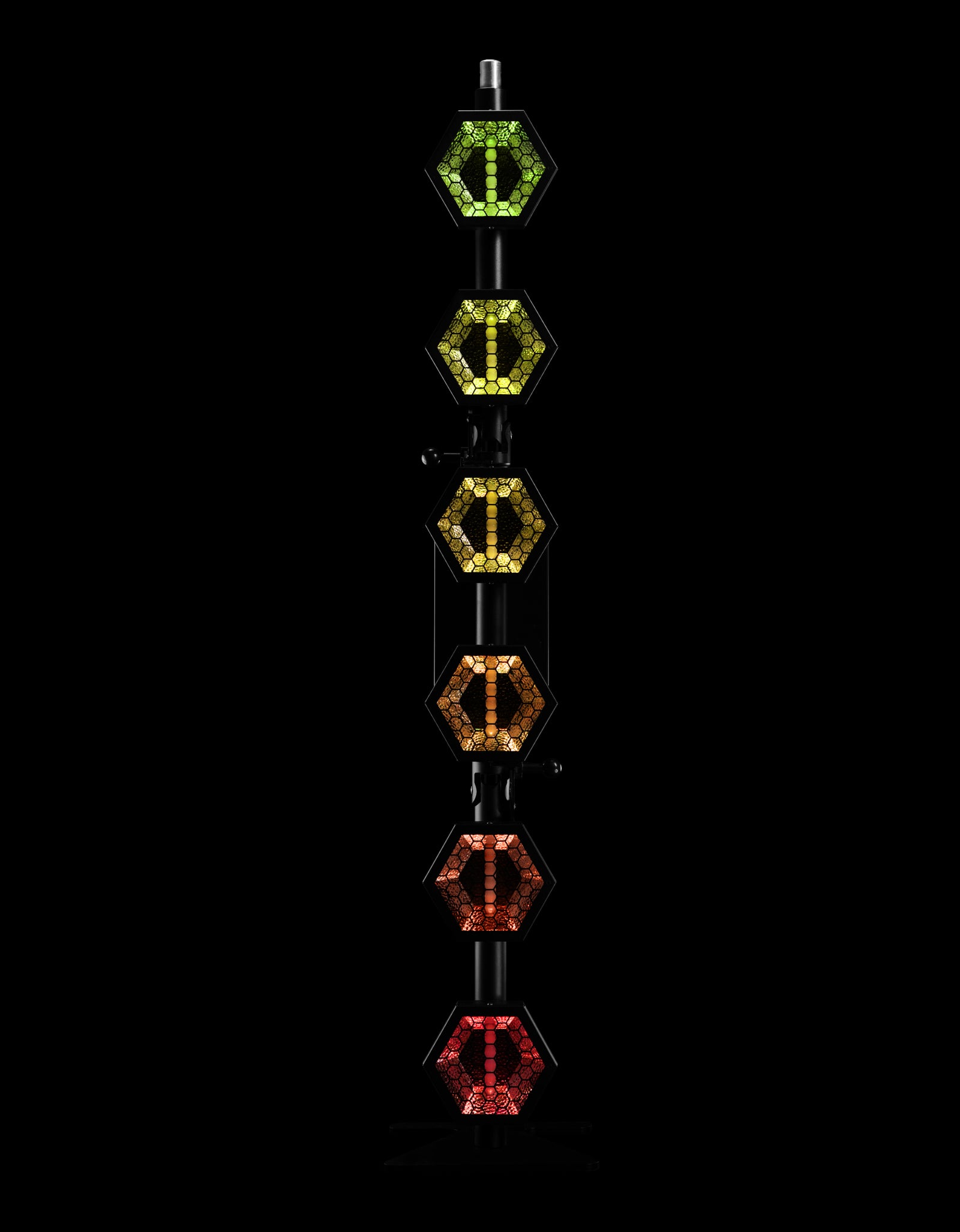

ON - GLOW ON - GLOW REDS/GREENS
ON - GLOW ON - GLOW REDS/GREENS
Specification
Control & Programming
- Protocols
- DMX512, RDM, WDMX(optional)
- DMX modes
- 6
- DMX channels
- 12-67
- Interface
- LCD display, highlighted touch buttons, Colour Feedback System™ – fixture’s auto information status
- Additional features
- macros, influencer/follower mode
Electrical
- Input voltage
- 100-240 V 50/60 Hz
- Power consumption
- 300 W
- Connectors
- AC power in/thru: powerCON TRUE1
Physical construction
- Dimensions
- 169 x 21 x 19 cm (66.4 x 8.1 x 7.4 in)
- Weight
- 10 kg (22 lbs)
- Rigging
- 2 x 13 mm (1/2 in) holes on back; base; top hanging adapter 13 mm (1/2 in) hole; E-CONN™ - the 4-way connector (optional)
- IP rating
- 20
Compliance & support
- Compliance
- CE; UKCA
- Warranty
- 24 m
Accessories
- Included
- Fixture
AC power cord (PowerCon TRUE 1/no AC plug)
Base
Height adapter
Hanging adapter
3x Spigots & cotters
User manual - Optional
- Rigging:
E-CONN™ - the 4-way connector
Control features:
WDMX
Packing:
flight case (4-units)
flight case (8-units)

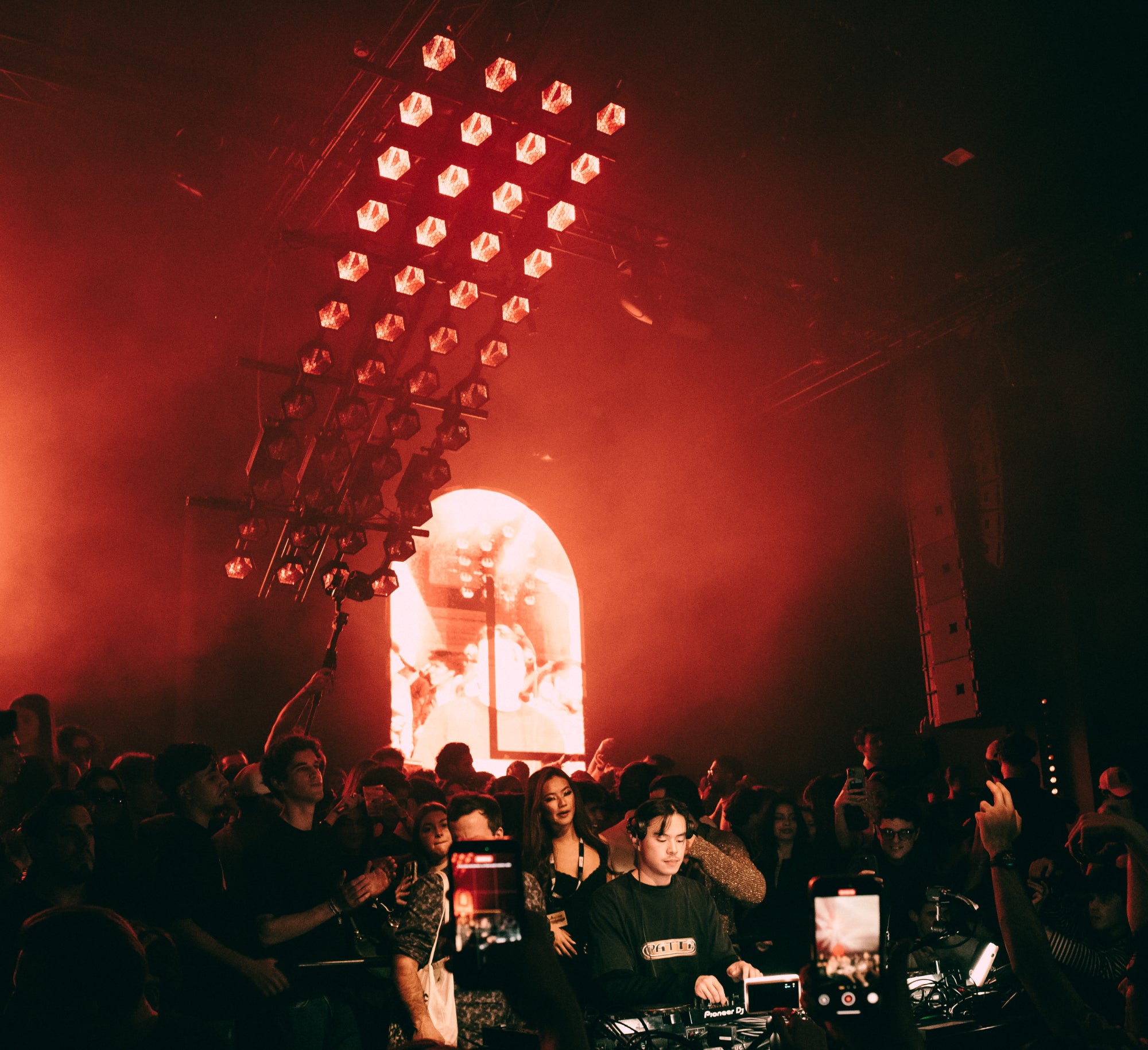

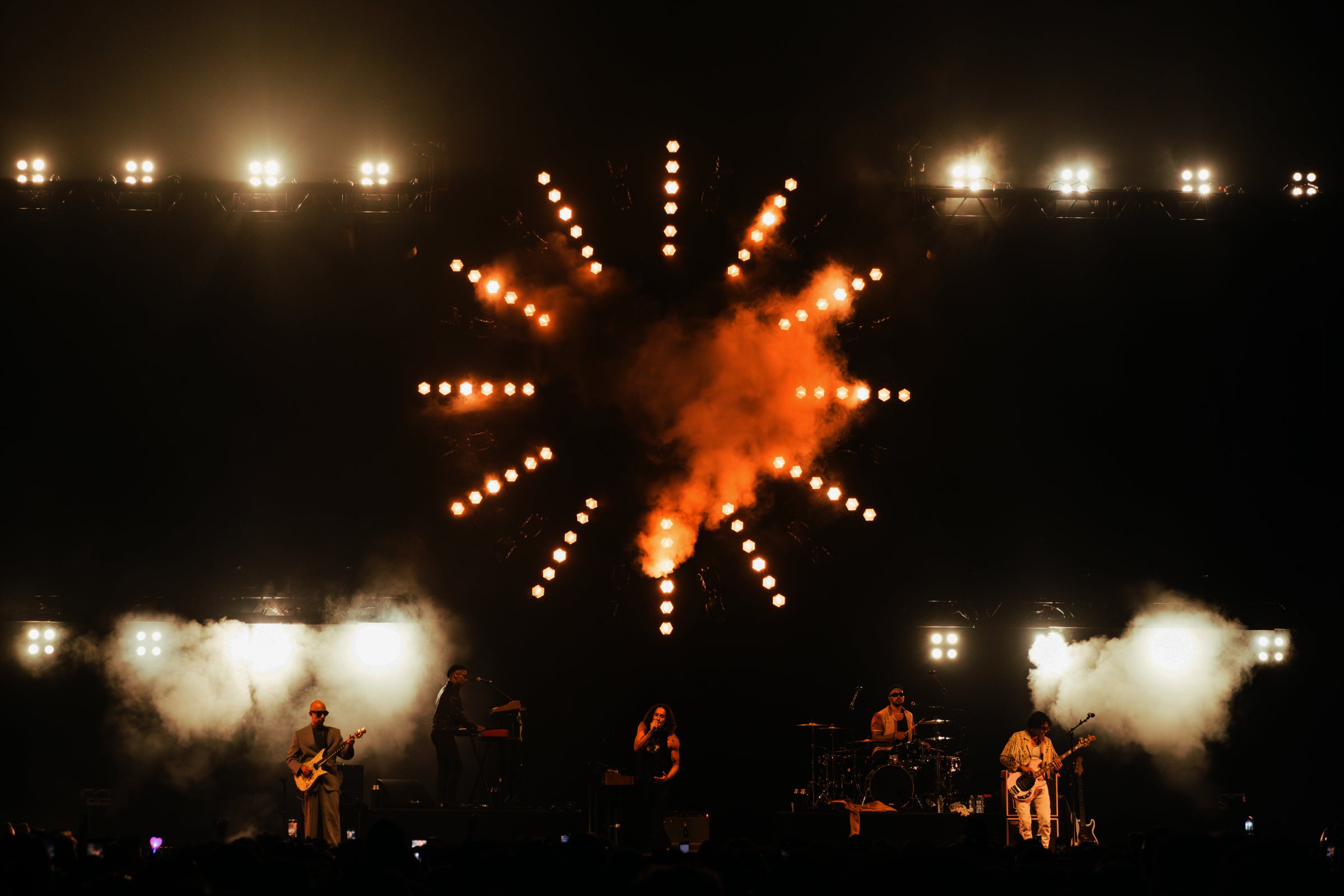

P2 EVO™ in action

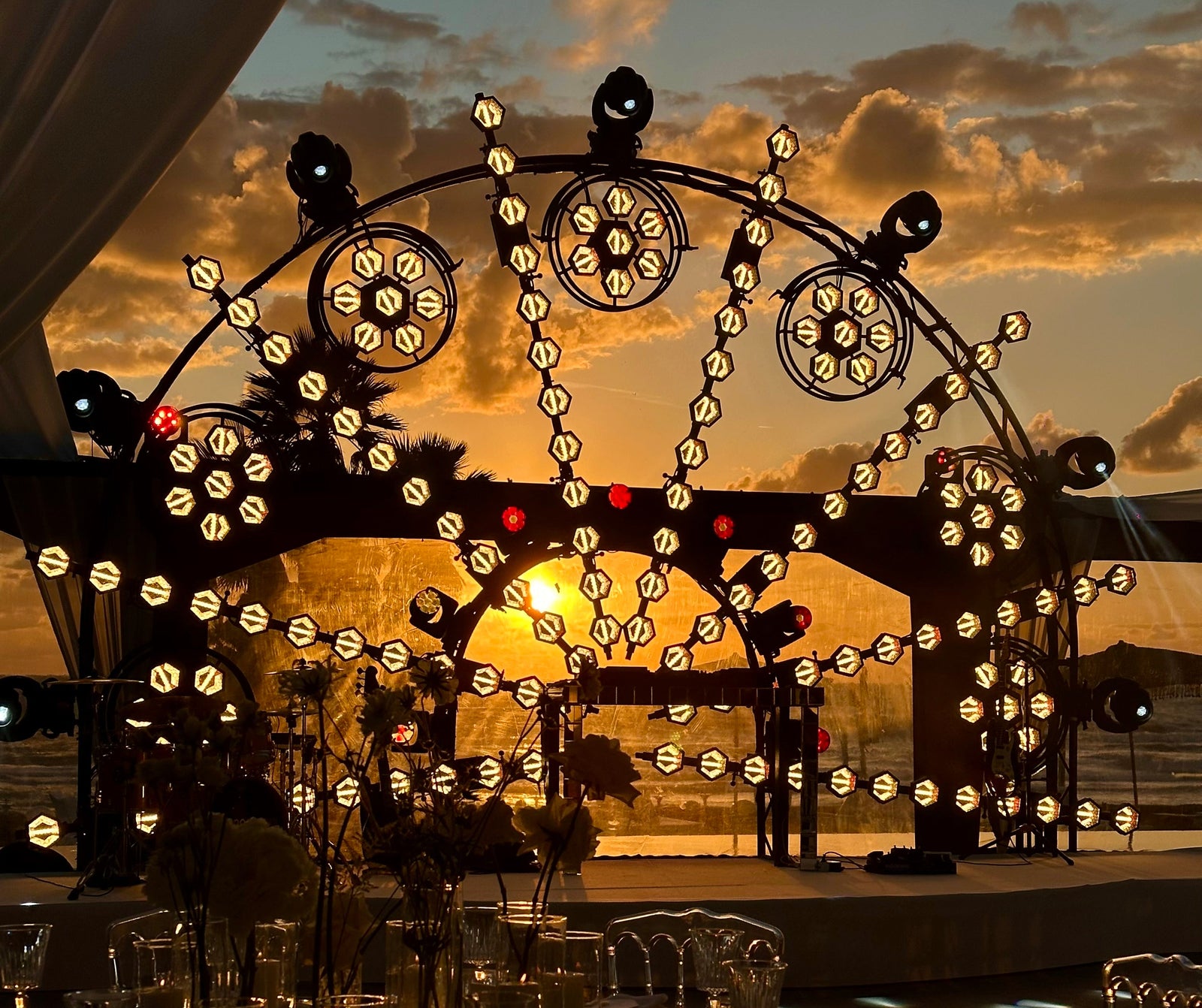

Fratelli Pizza

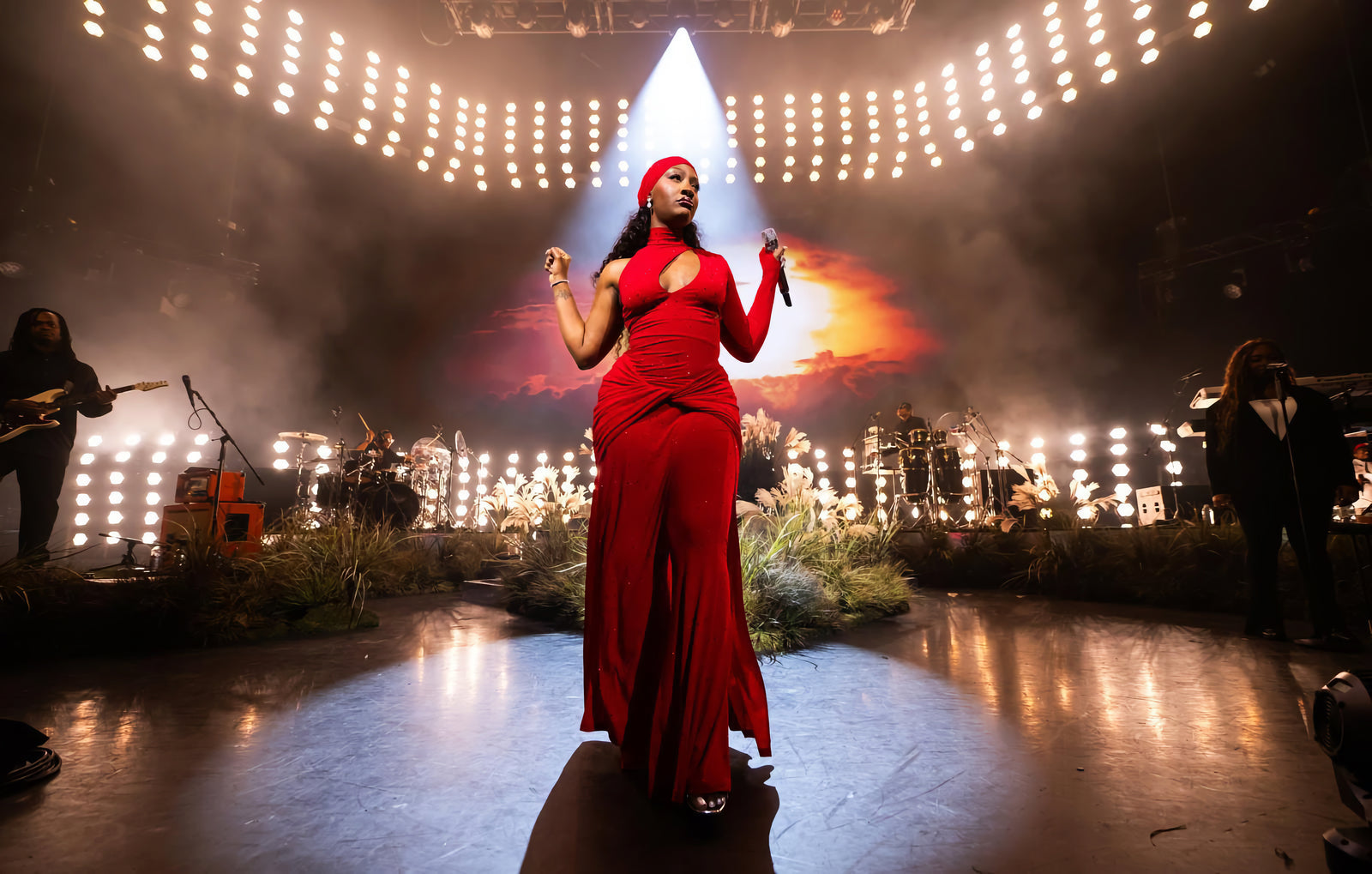

TEMS

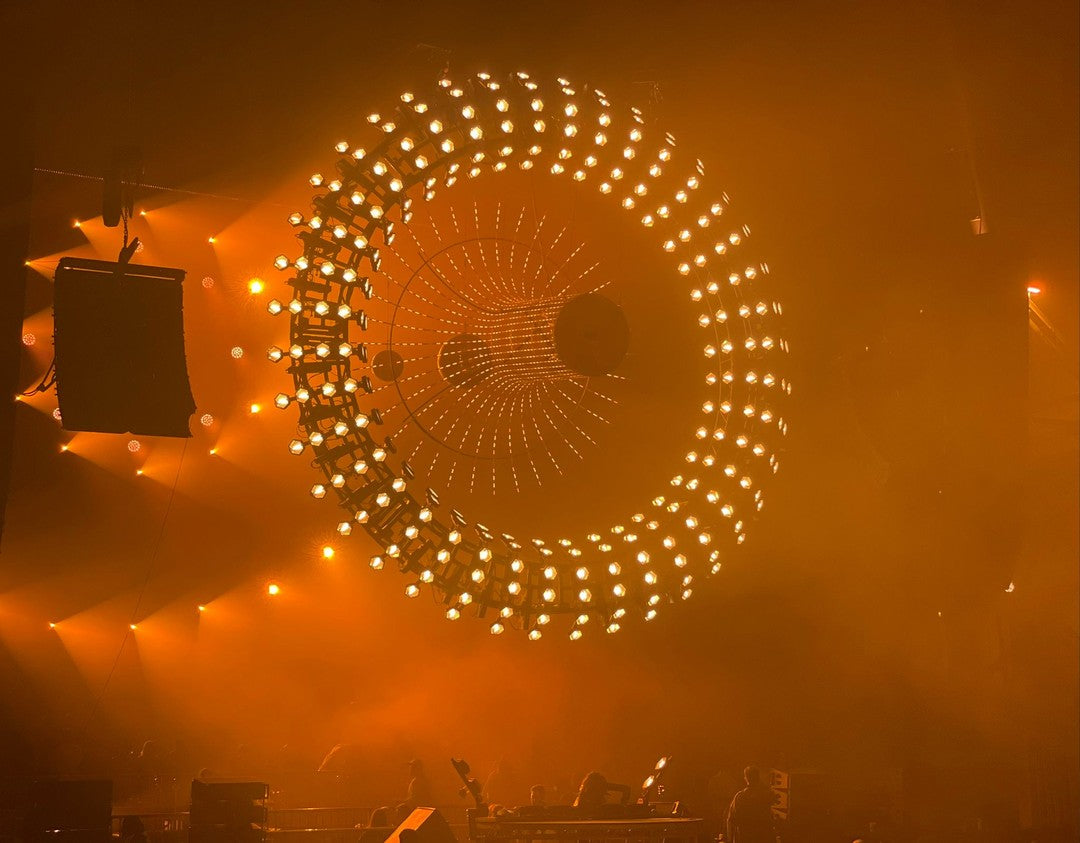

Black Coffee

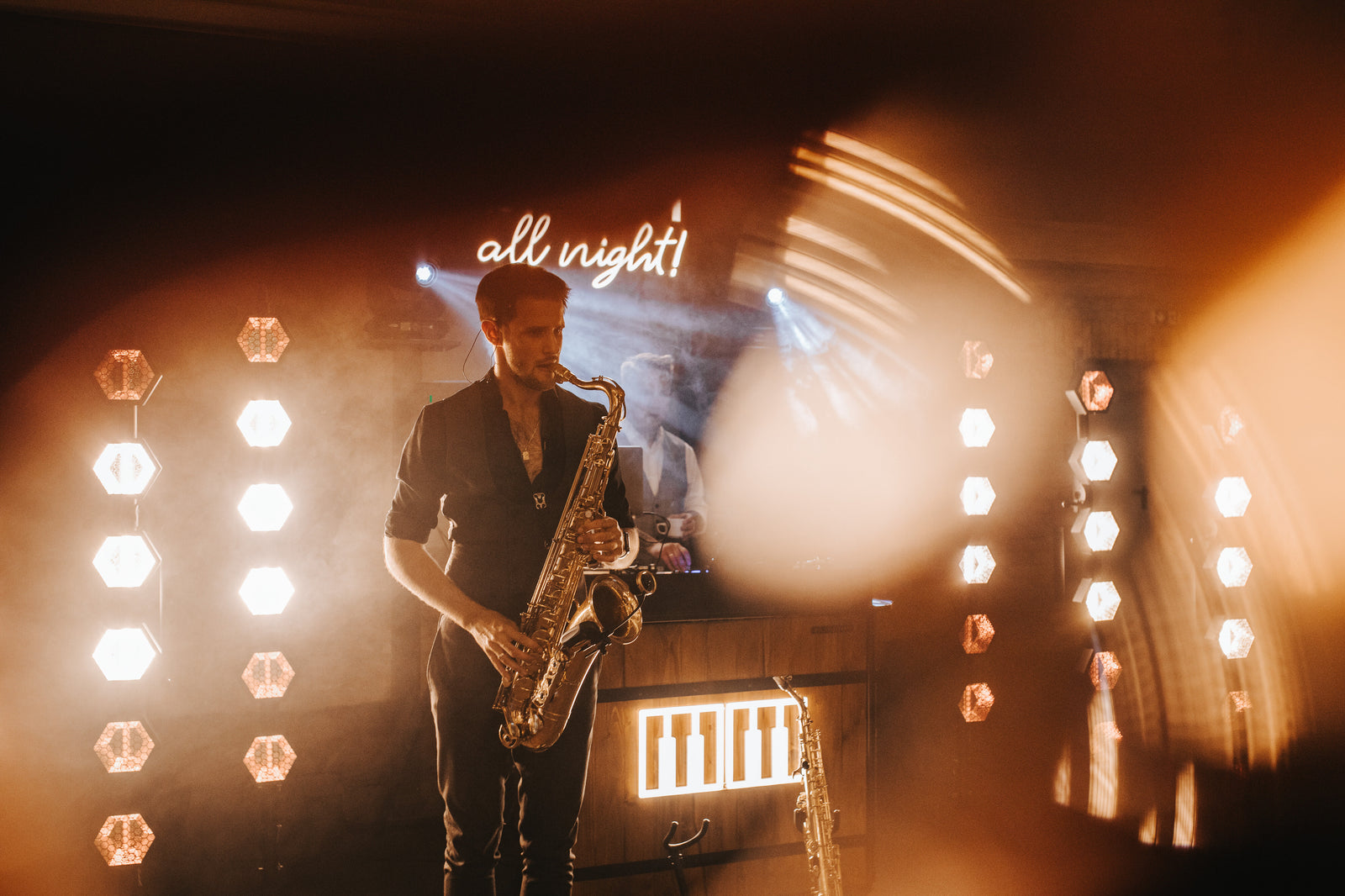

DJ Michał Marat

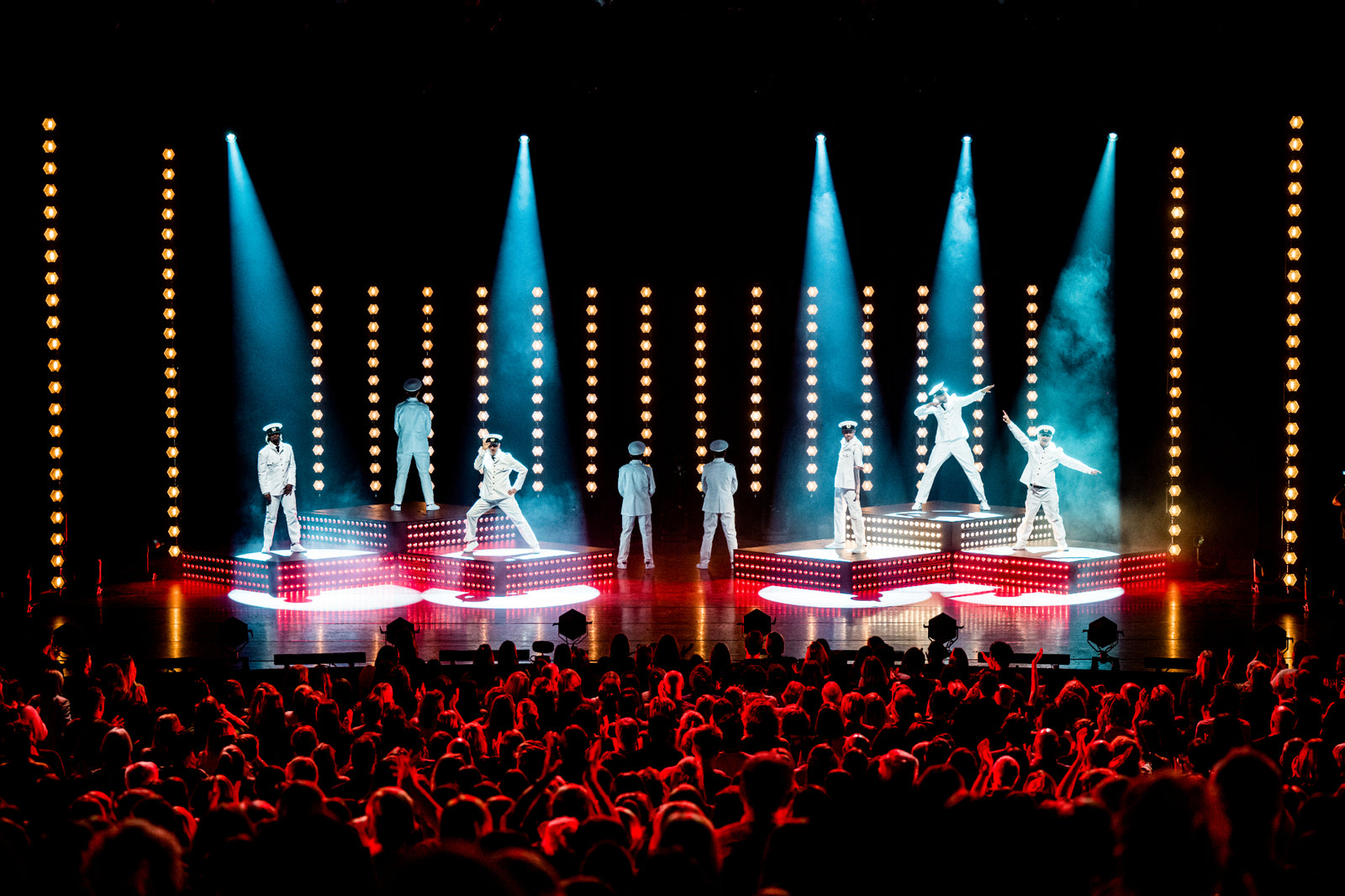

Alles in de strijd
