Photometrics
- Light source
- MAIN: 3x60W haloLED™ | GLOW: 3x12W RGBW | CENTER: 18W RGBW
- Beam angle
- 94°
- Colour temperature
- MAIN: 1 600–3 200 K | GLOW/CENTER: R G B + White 6000K
- Total luminous flux
- MAIN: 5 500 lm | GLOW: 1 200 lm | CENTER: TBA
- CRI
- >80

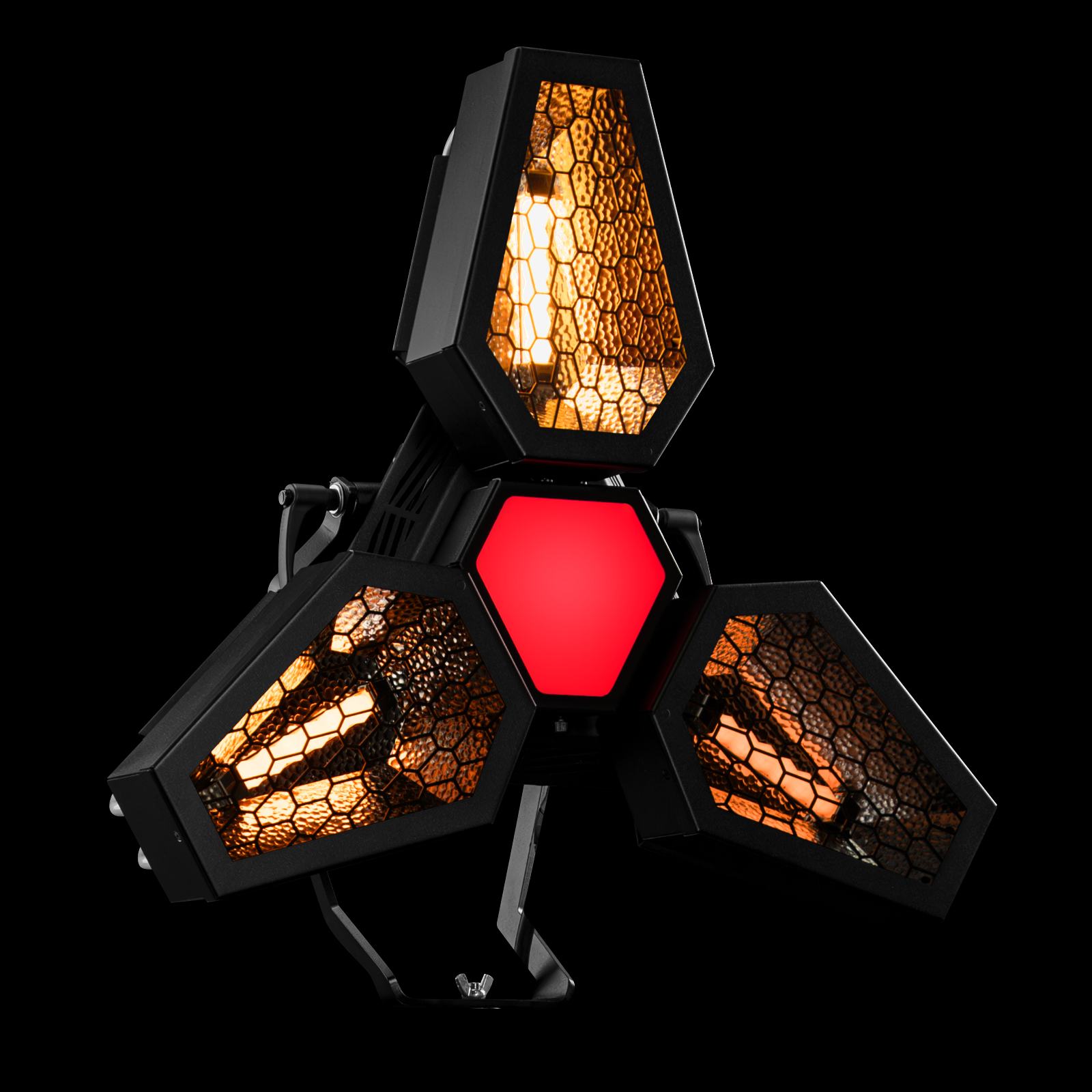

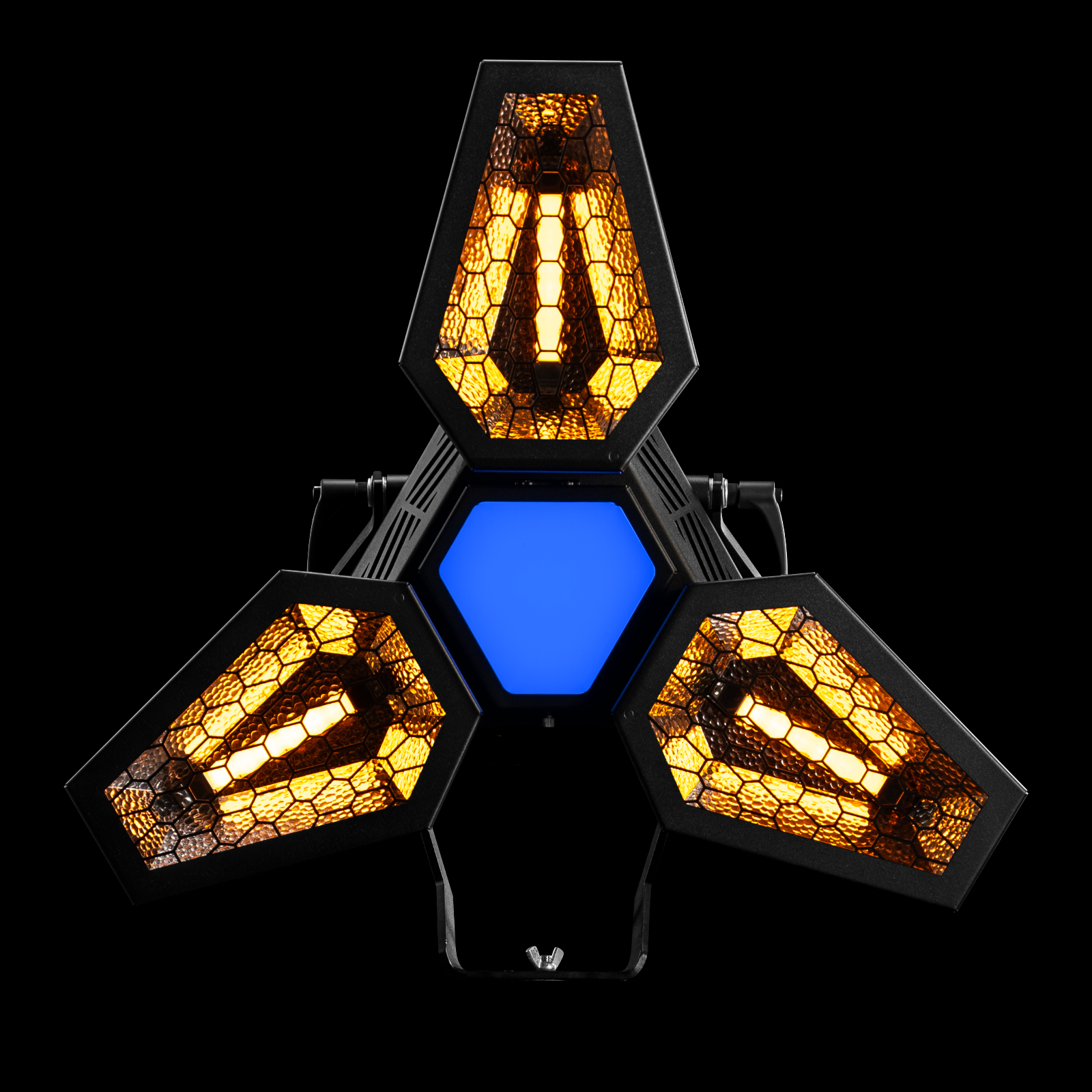

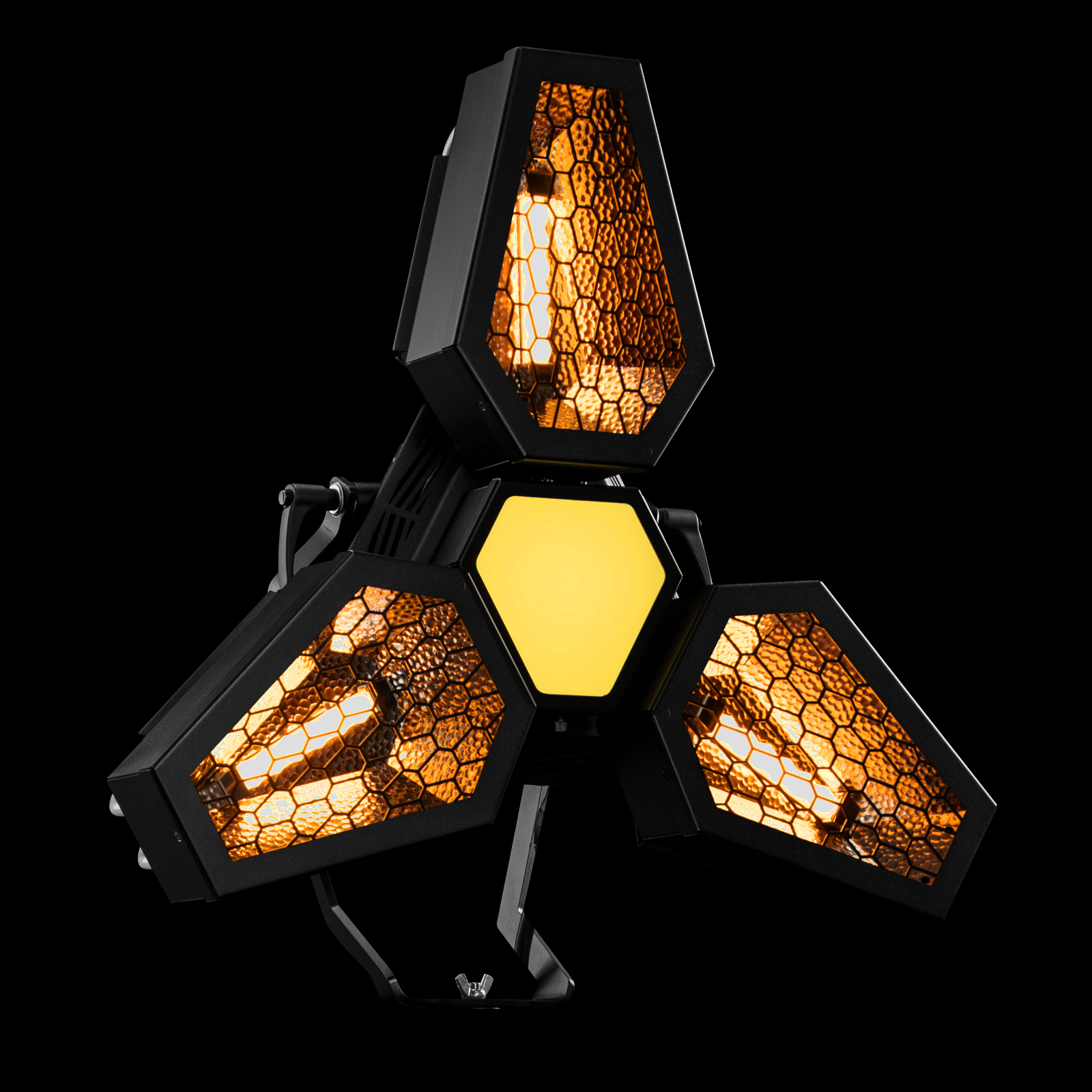

MANTIS™
The ultimate multi-layer centrepiece for tour rigs and TV sets.
Couldn't load pickup availability
Pickup available at Portman Main Warehouse
Usually ready in 24 hoursPairs well with
Original, high-quality, patented design product.
2-Year Warranty
Iconic tri-arm design.
Command the stage with a 440W RGBWLA main light source. Exceptional wash uniformity and deep color saturation that paints the entire scene with fewer units.
Signature haloLED & RGBW glow
Every individual pixel features our ultra-smooth haloLED™ tungsten emulation paired with a dedicated background RGBW aura glow for intense, camera-ready color layering.
Custom central RGBW source.
Central RGBW core topped with a soft milky diffuser for smooth color blending, featuring an integrated flip-open hatch to drop in custom laser-cut logos or stencils for instant event personalization.
Standalone icon or modular force
Try me!
Feature
Central 18W RGBW light engine with a quick-access flip-cover for custom overlays. Insert your own laser-cut logo, branded stencil, or custom gobos to instantly personalize the fixture for corporate events, tour branding, and broadcast sets.

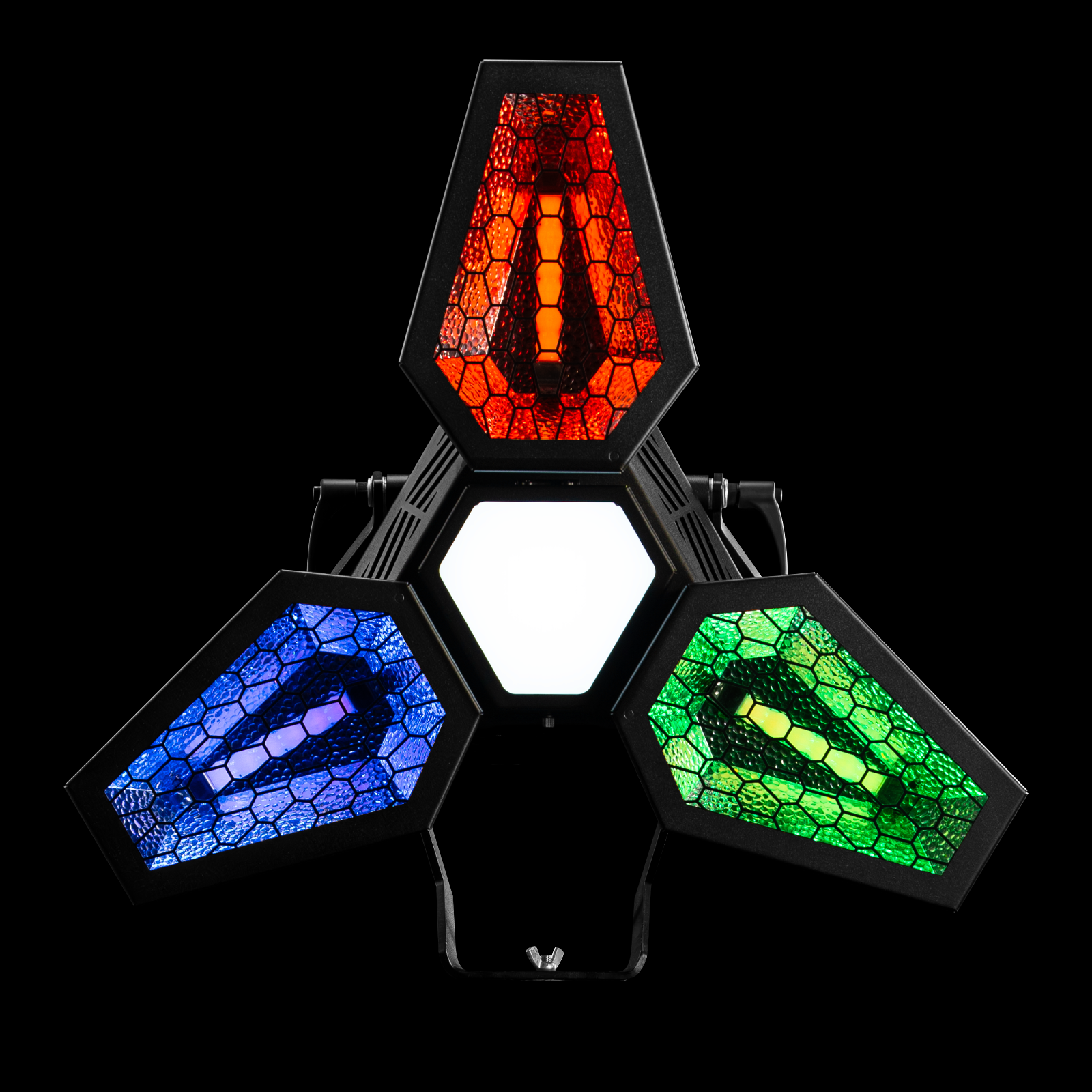

GLOW
12W RGBW background glow powered by 16-bit color blending and inward-facing light sources, painting the entire reflector in stunning, seamless color.

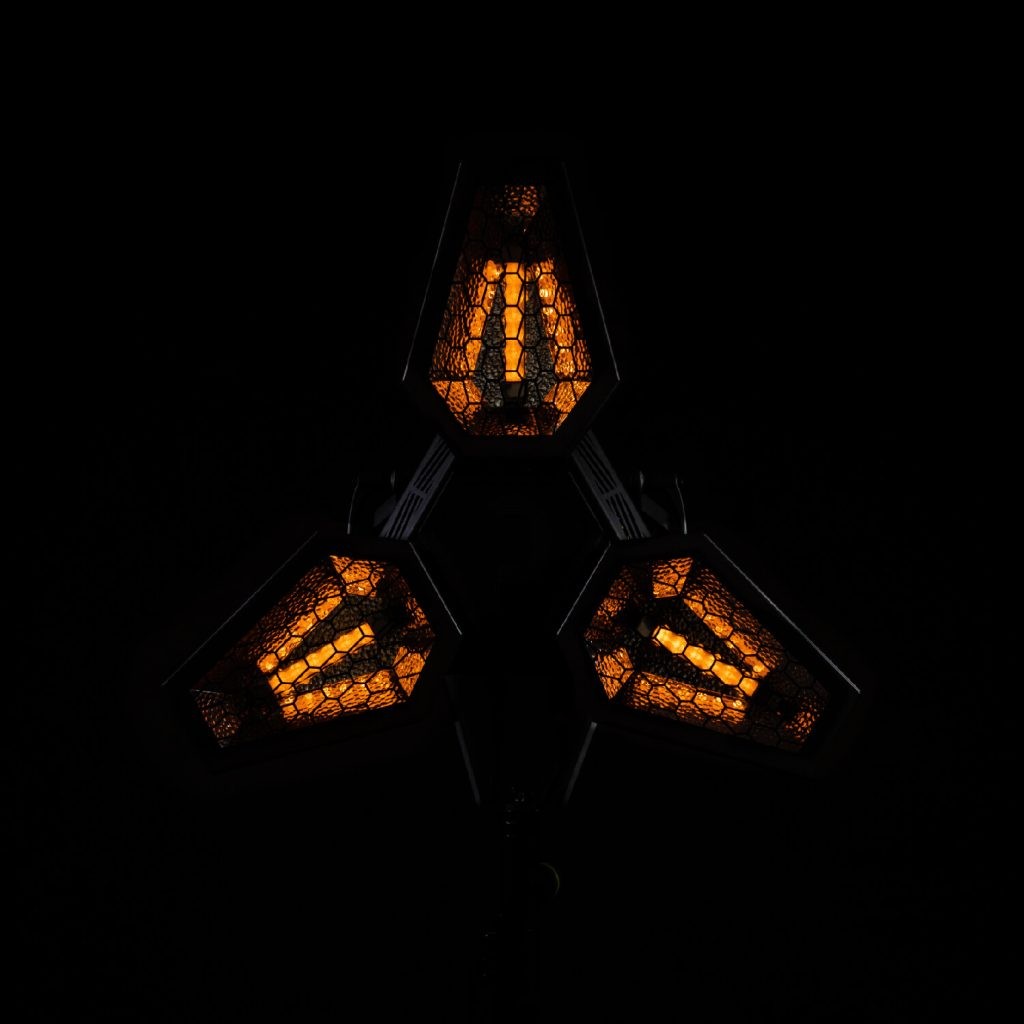

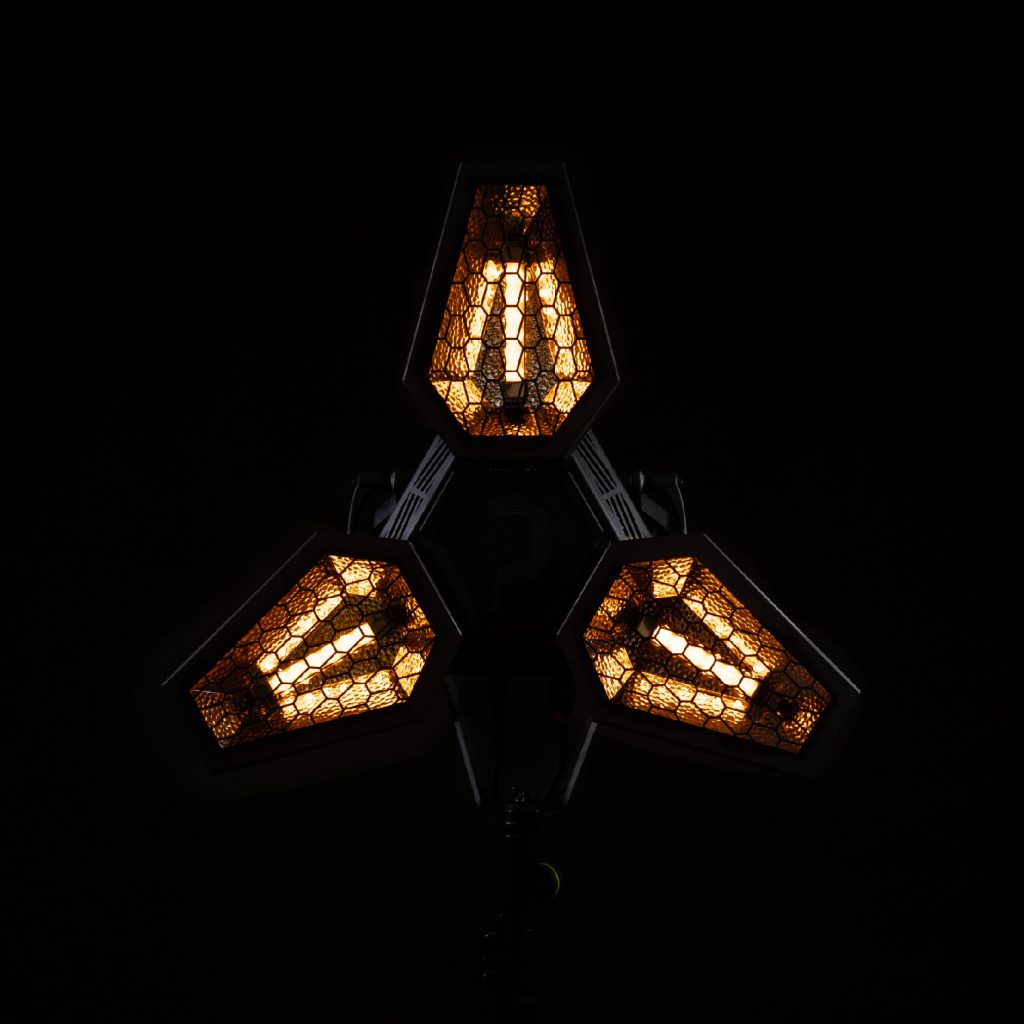

MAIN haloLED™
60W warm white true tungsten emulated LED source with red-shift effect and custom diffuser to boost retro style.
ON - haloLED™ SUBTLE WARMTH
ON - haloLED™ MORE WARMTH

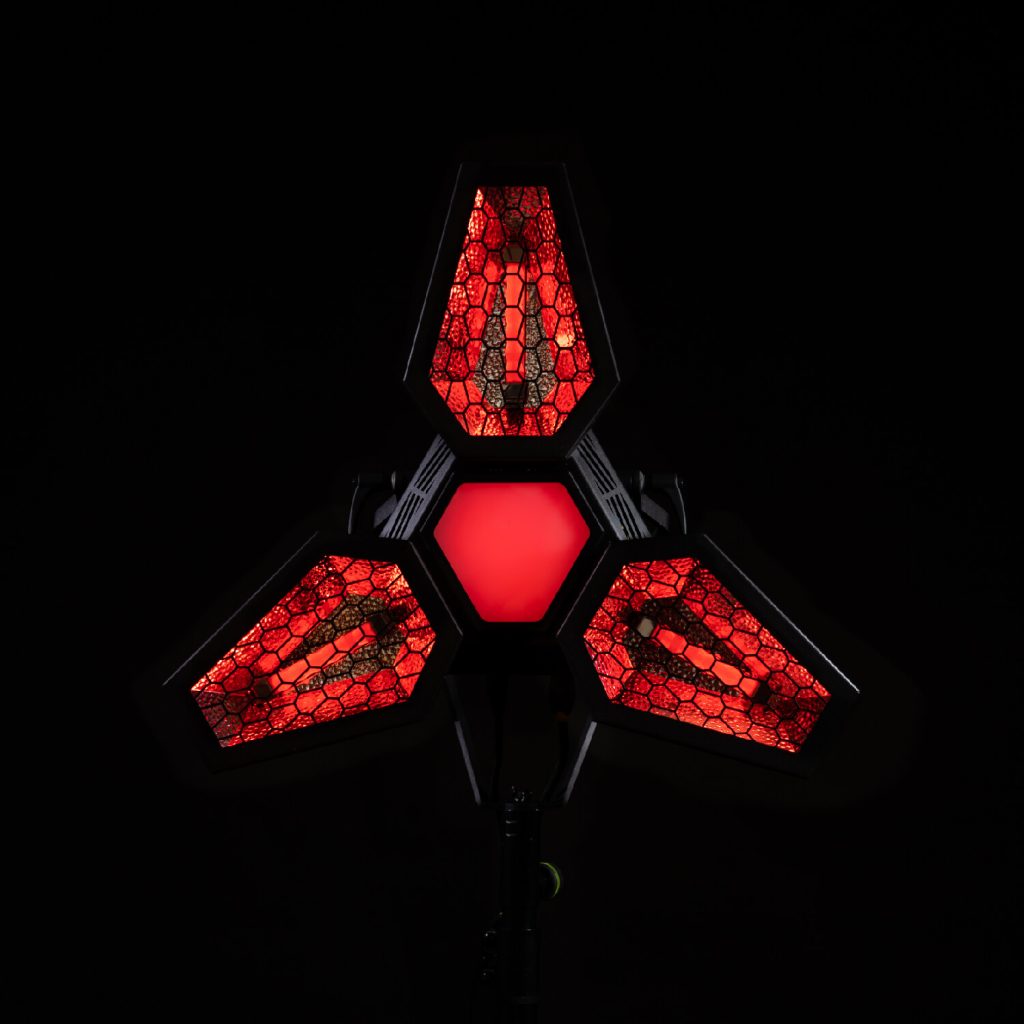

ON - GLOW

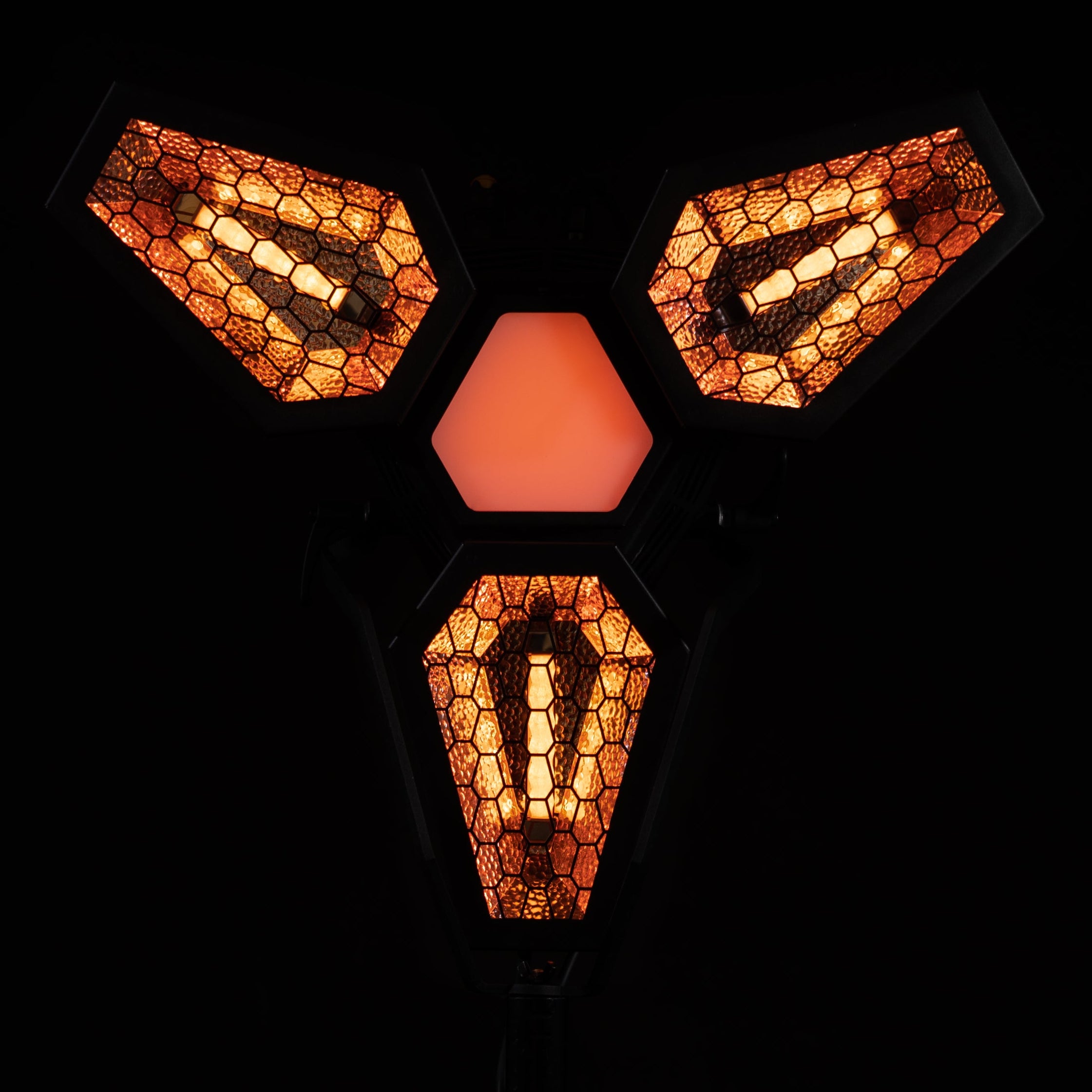

ON - CENTER
ON - CENTER
Specification
Control & Programming
- Protocols
- DMX512, RDM, WDMX(optional)
- DMX modes
- 6
- DMX channels
- 21-43
- Interface
- LCD display, highlighted touch buttons, Colour Feedback System™ – fixture’s auto information status
- Additional features
- macros, influencer/follower mode
Electrical
- Input voltage
- 100-240 V 50/60 Hz
- Power consumption
- 240 W
- Connectors
- AC power in/thru: powerCON TRUE1
Physical construction
- Dimensions
- 56 x 64 x 19 cm (22 x 25.4 x 7.5 in)
- Weight
- 7 kg (15.4 lbs)
- Rigging
- yoke (with 13 mm (1/2 in) hole); short bracket (optional)
- IP rating
- 20
Compliance & support
- Compliance
- CE; UKCA
- Warranty
- 24 m
Accessories
- Included
- Fixture
AC power cord (PowerCon TRUE 1/no AC plug)
User manual - Optional
- Rigging:
short bracket
Control features:
WDMX
Packing:
flight case (2-units)
flight case (4-units)
MANTIS™ in action

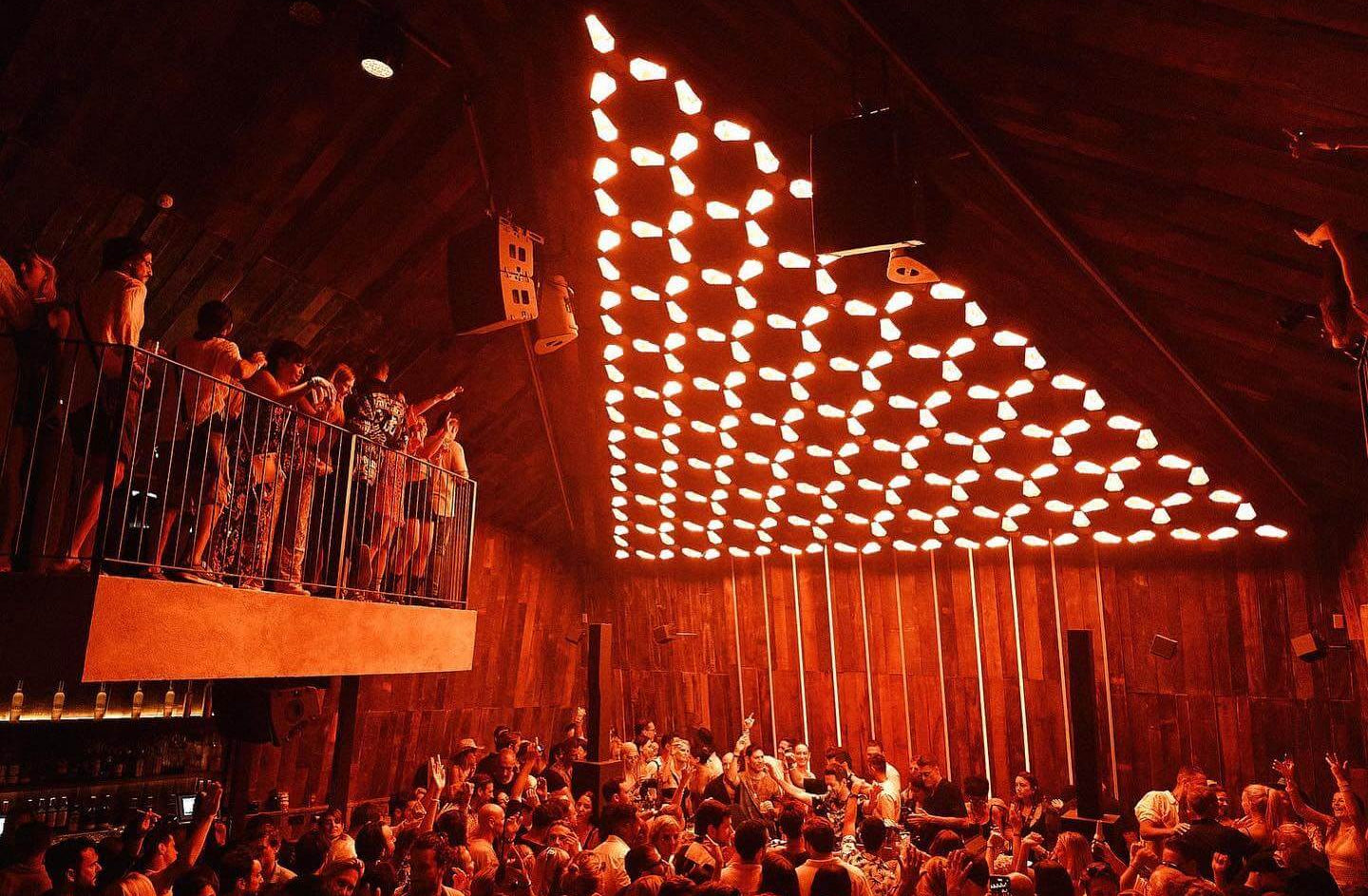

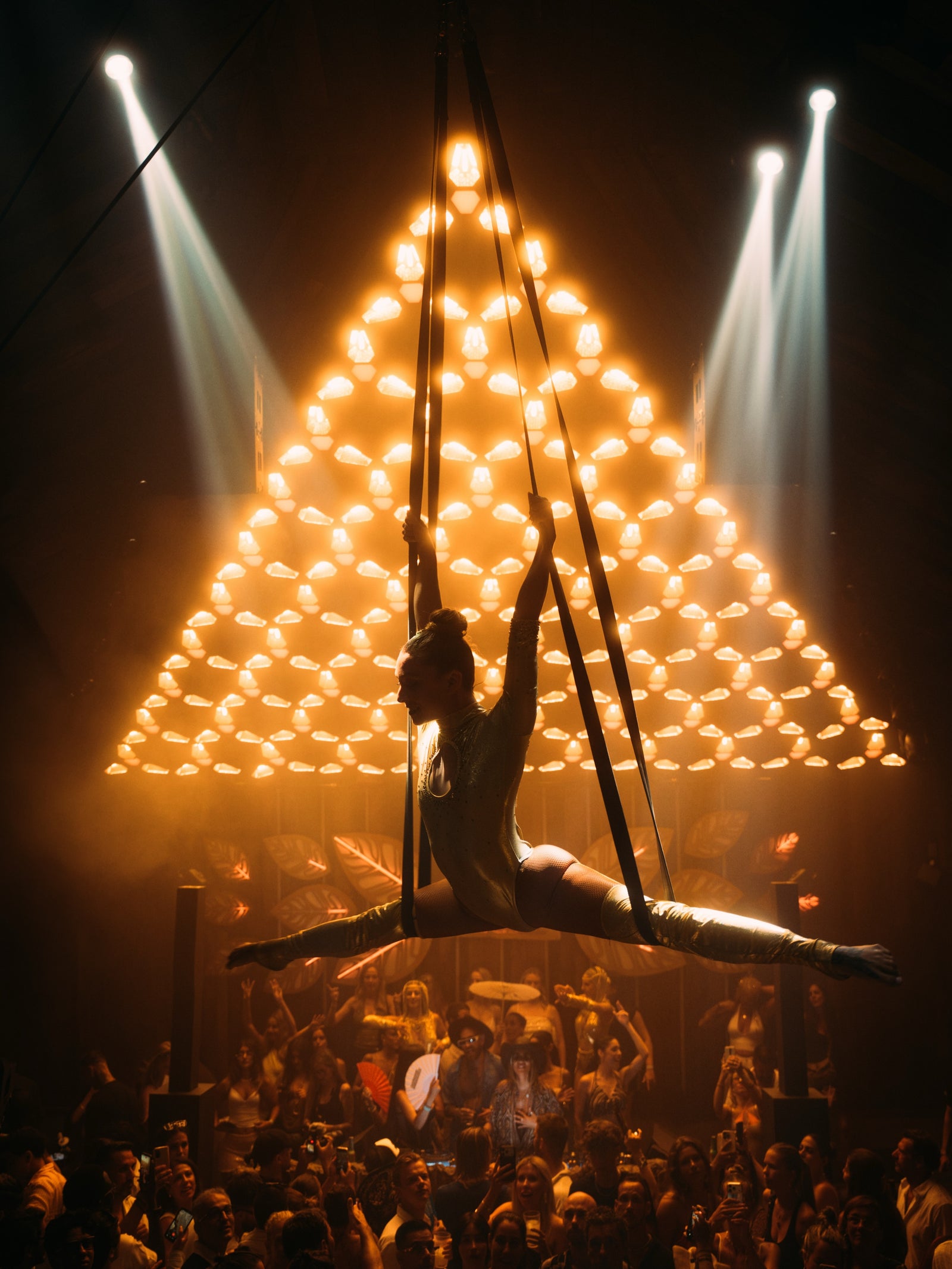

Playa Soleil Ibiza

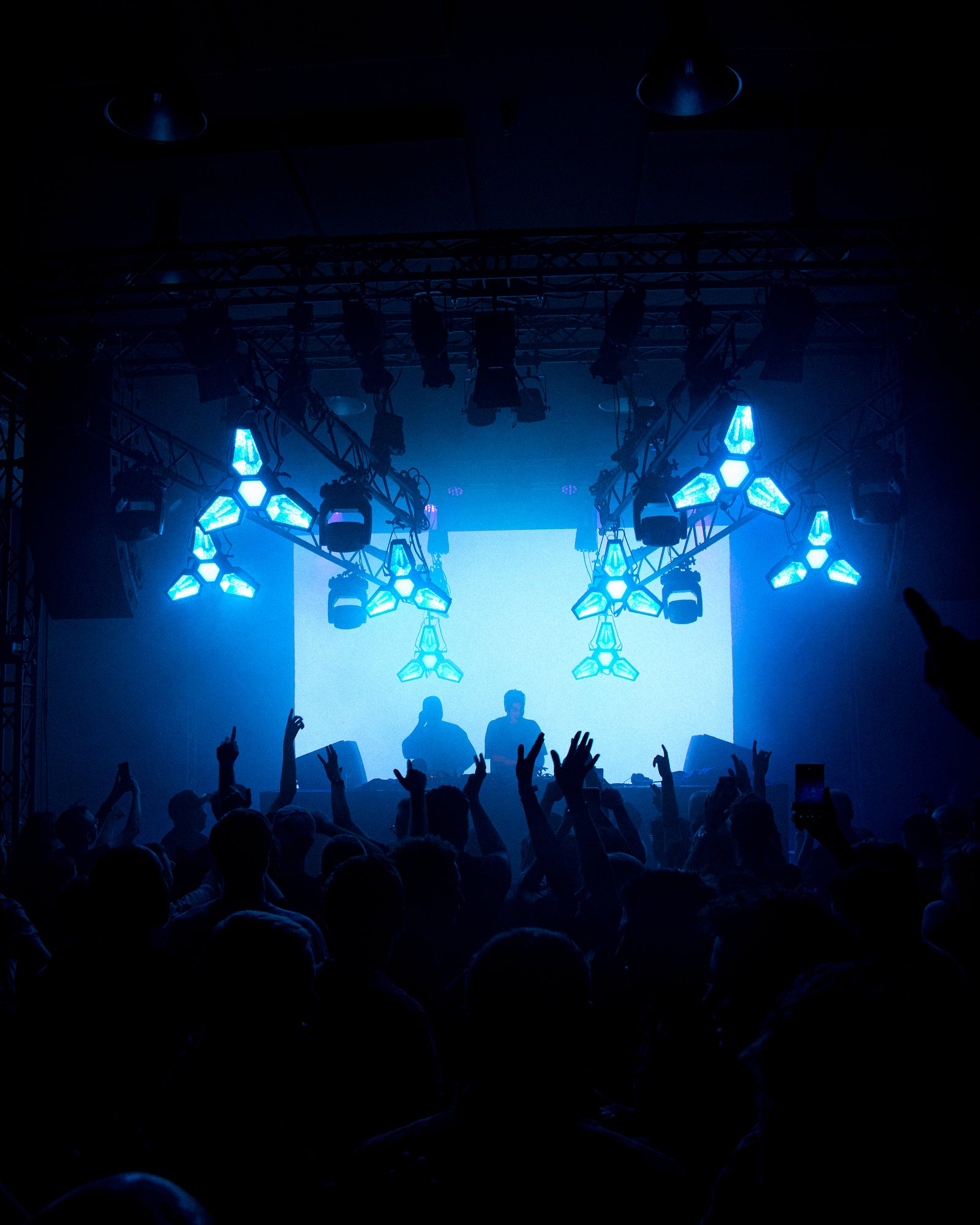

Sick individuals

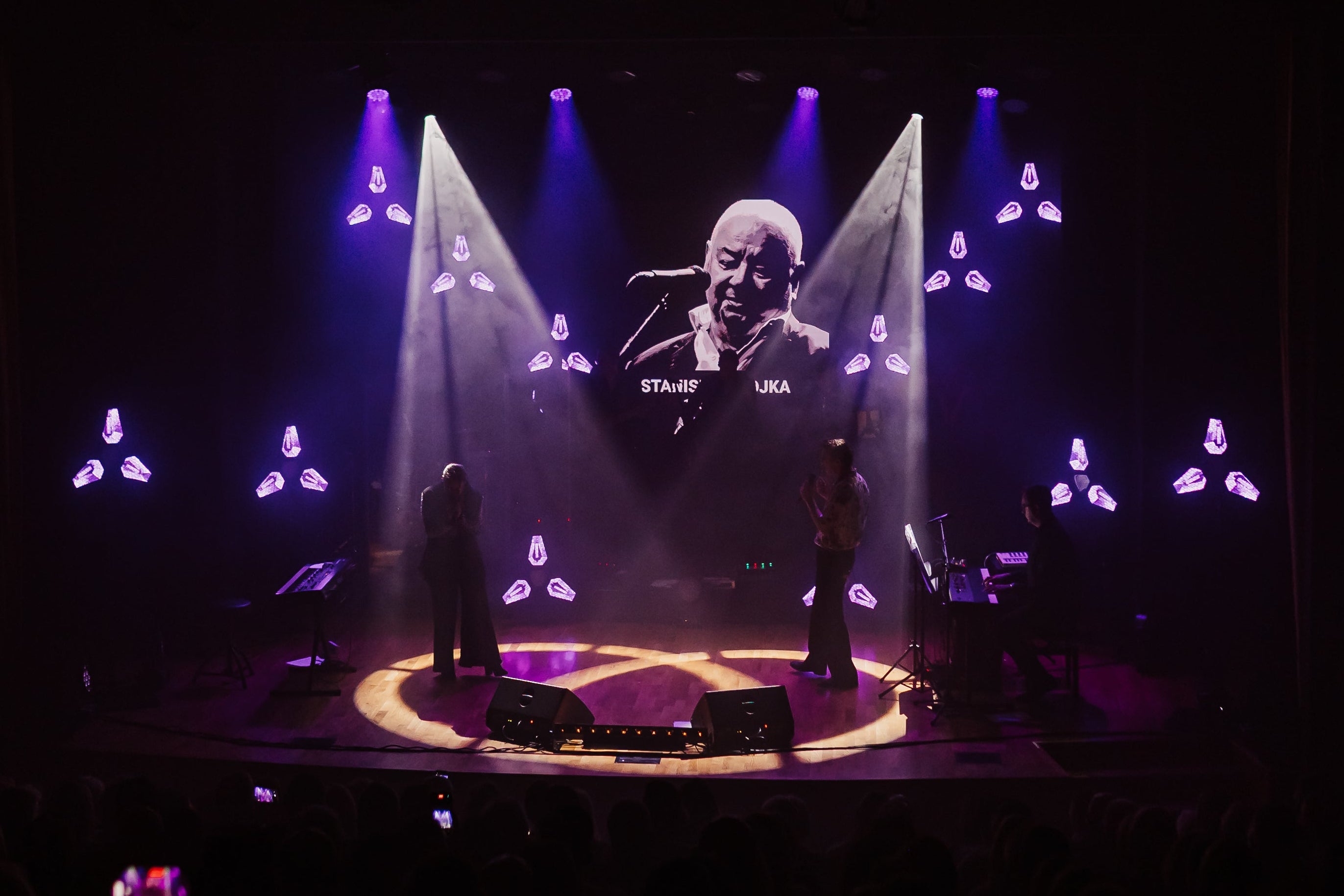

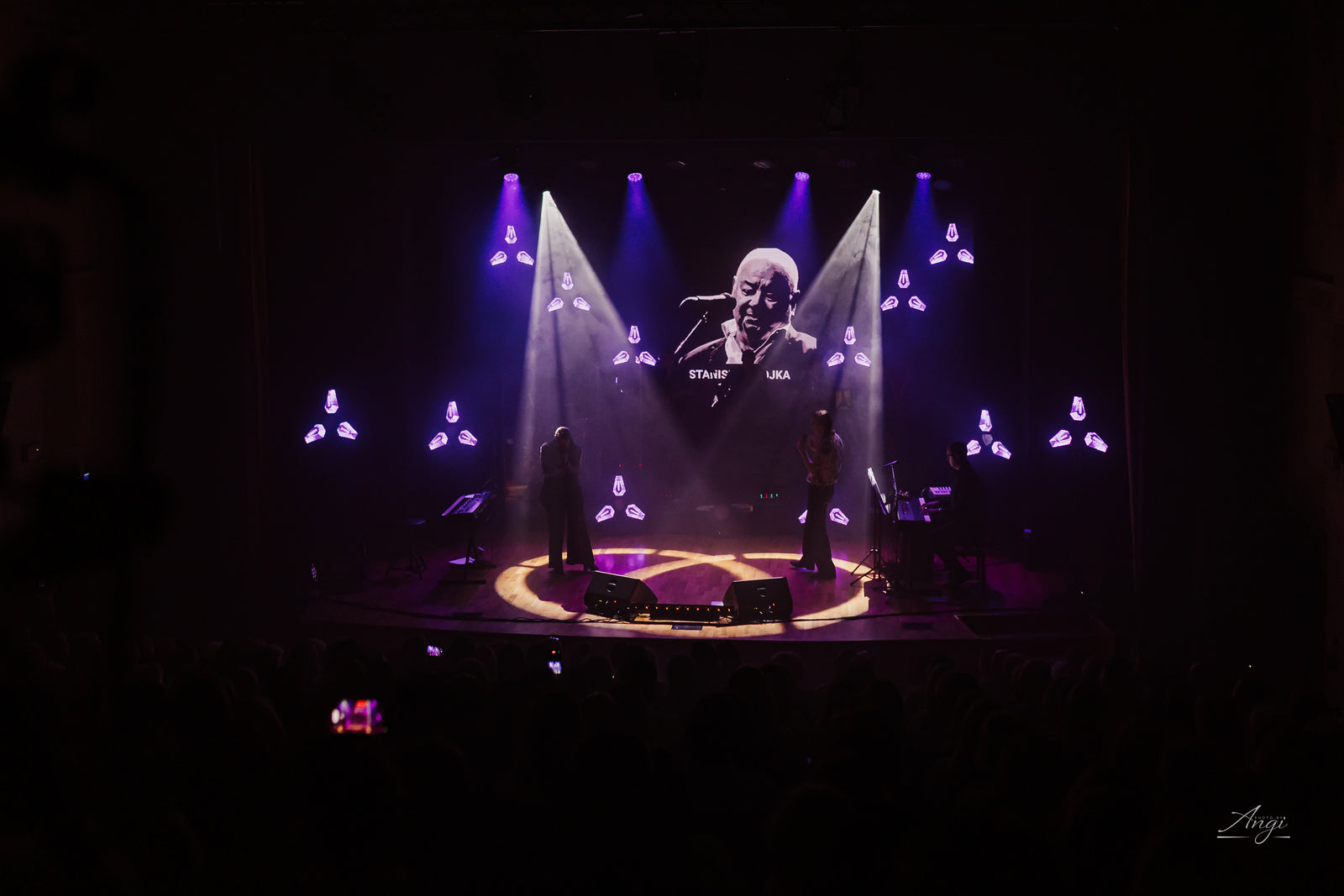

Zaduszki Muzyczne

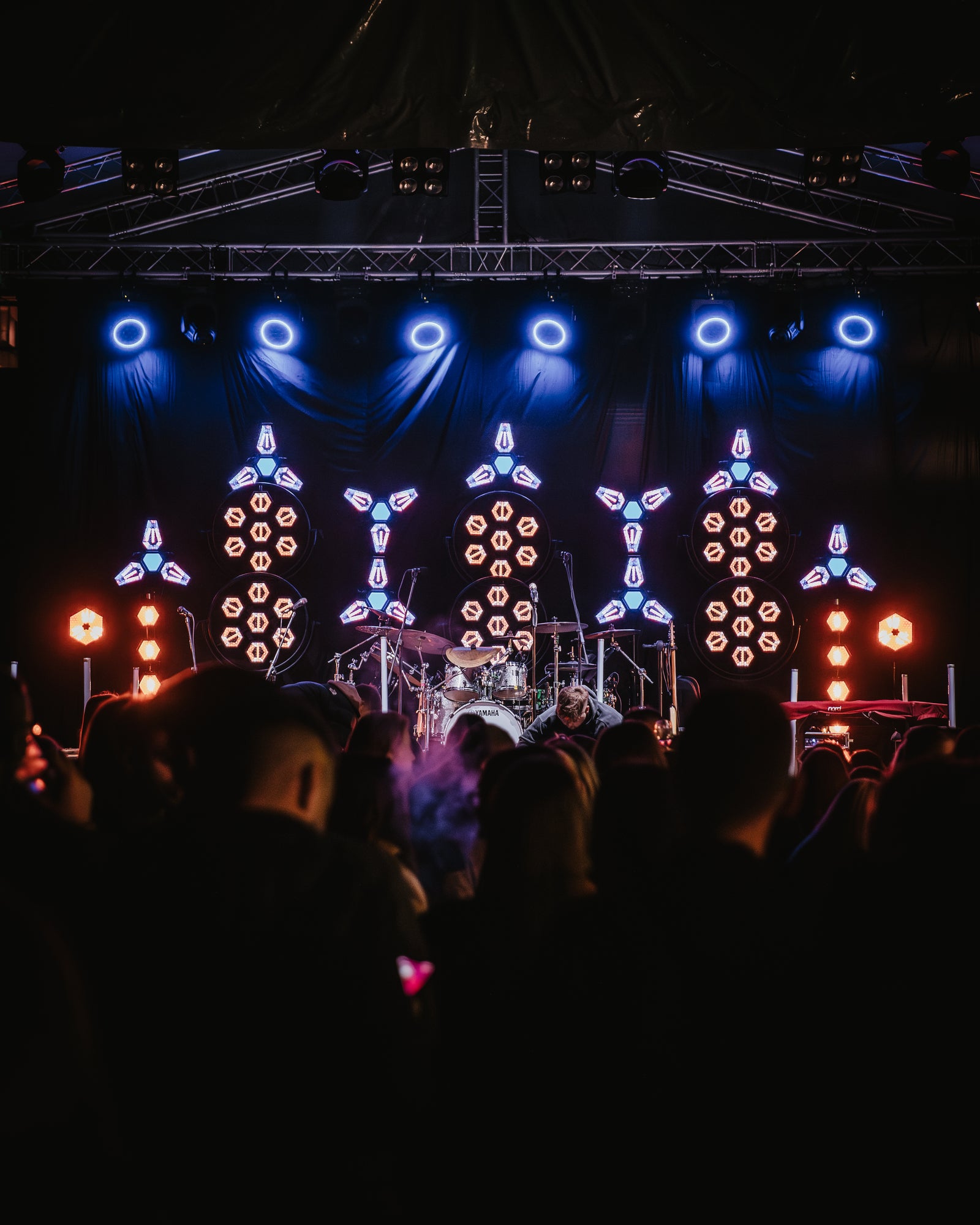

Marma Light
Event name
