Photometrics
- Light source
- MAIN: 5x60W WW (HaloLED™) | GLOW: 5x32W RGBW (SurfGlow™)
- Beam angle
- 81°
- Colour temperature
- MAIN: 1 600-3 200 K | GLOW: RGBW
- Total luminous flux
- MAIN: 9 116 lm
- CRI
- 83

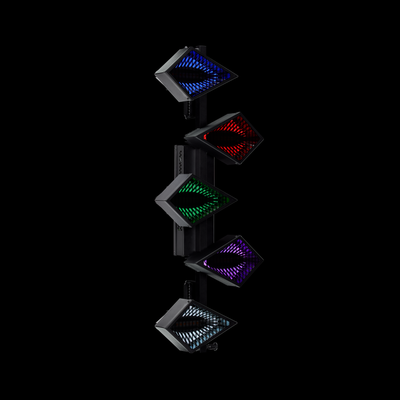

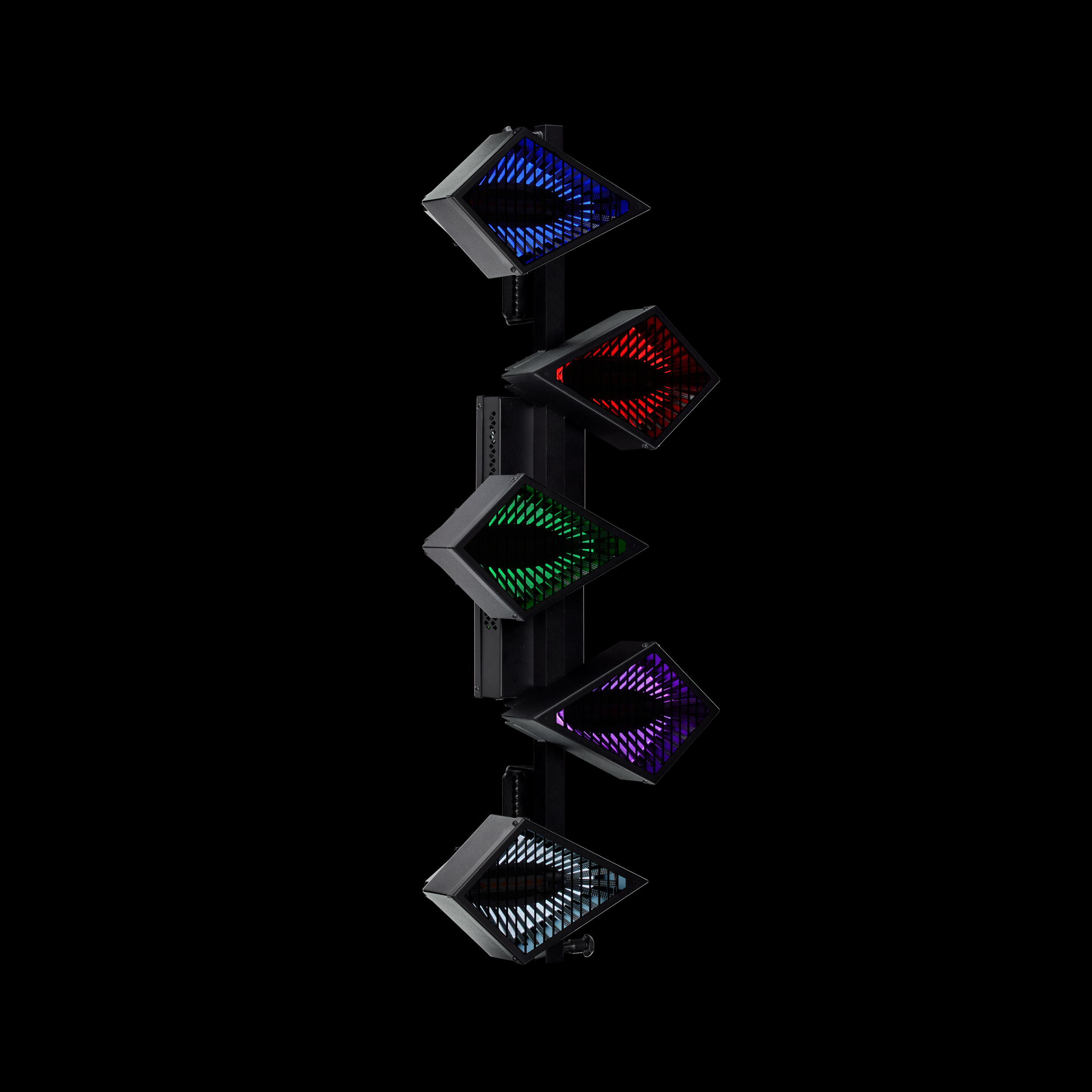

ZYAVA™
Next-gen modular innovation. Dynamic geometric freedom for creative lighting architects.
Couldn't load pickup availability
Pickup available at Portman Main Warehouse
Usually ready in 24 hoursPairs well with
Original, high-quality, patented design product.
2-Year Warranty
The wait is over. It's new, it's fresh, it's super unique!
Designed for those who demand ultimate visual identity. ZYAVA™ combines an upgraded, high-output haloLED™ light engine with the dual-section SurfGlow™.

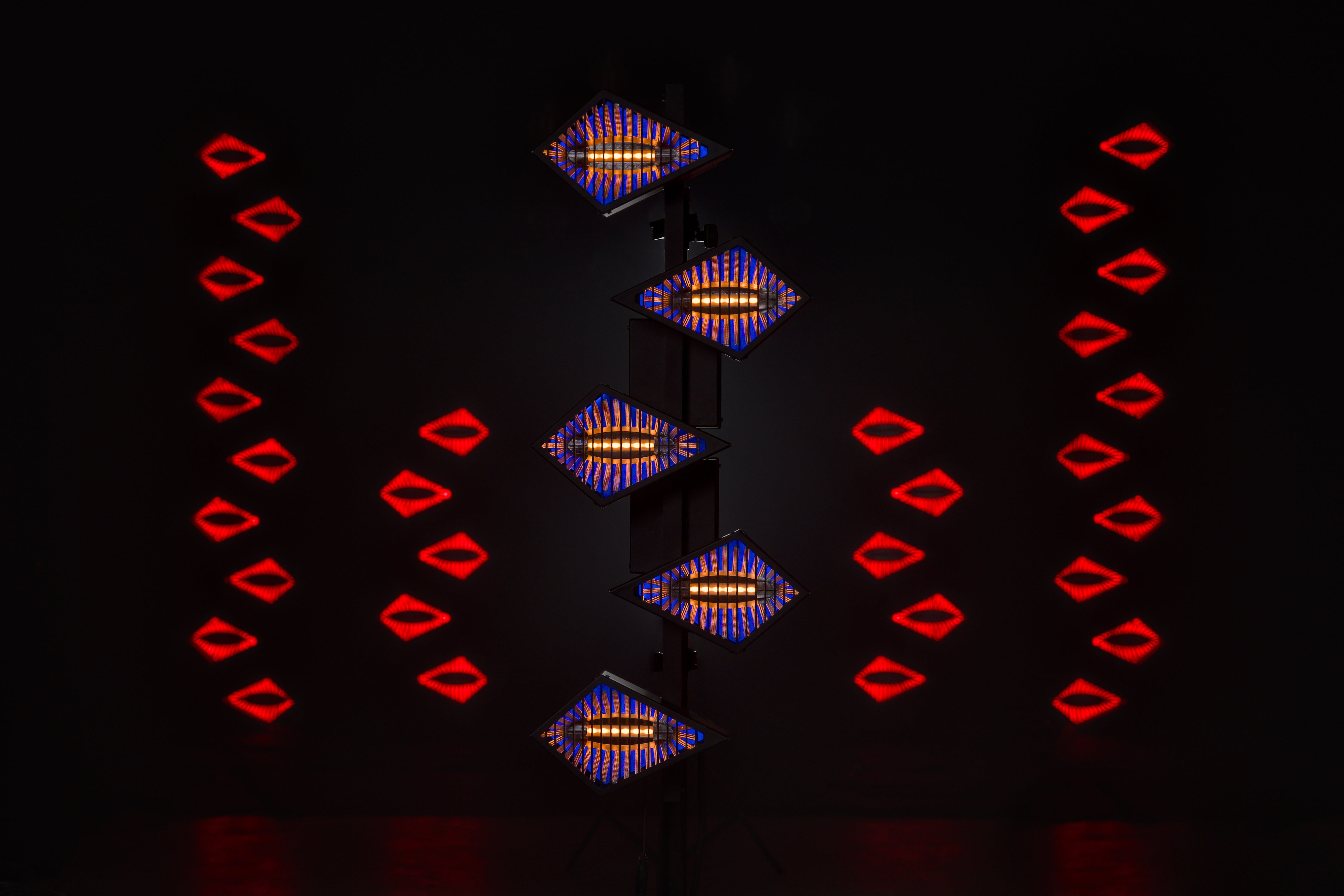

Just 8 to 12 fixtures are enough to command an entire main stage, club wall, or ceiling backdrop. Fresh, bold, and entirely unique.
Upgraded light engines
Next-gen haloLED™ engine
An upgraded tungsten-emulated light engine delivering unprecedented warmth, maximum output, and superior optical efficiency for camera and stage.
Dual-zone SurfGlow™
Every pixel features two independently controllable RGBW sections, opening new possibilities for dynamic visual effects.
Quick Joint System 2.0
Inherited from S-TRIBE™ and AMULET™, the upgraded tool-less locking mechanism allows lightning-fast physical interconnectivity to build massive, rigid visual arrays.
Try me!
SurfGlow™
32W RGBW dual-zone glow covered by special custom diffuser, enhancing colour mixing.
New haloLED™
60W true tungsten-emulated light engine.
Quick Joint System™ 2.0
The tool-less locking mechanism to connect fixtures and brackets.

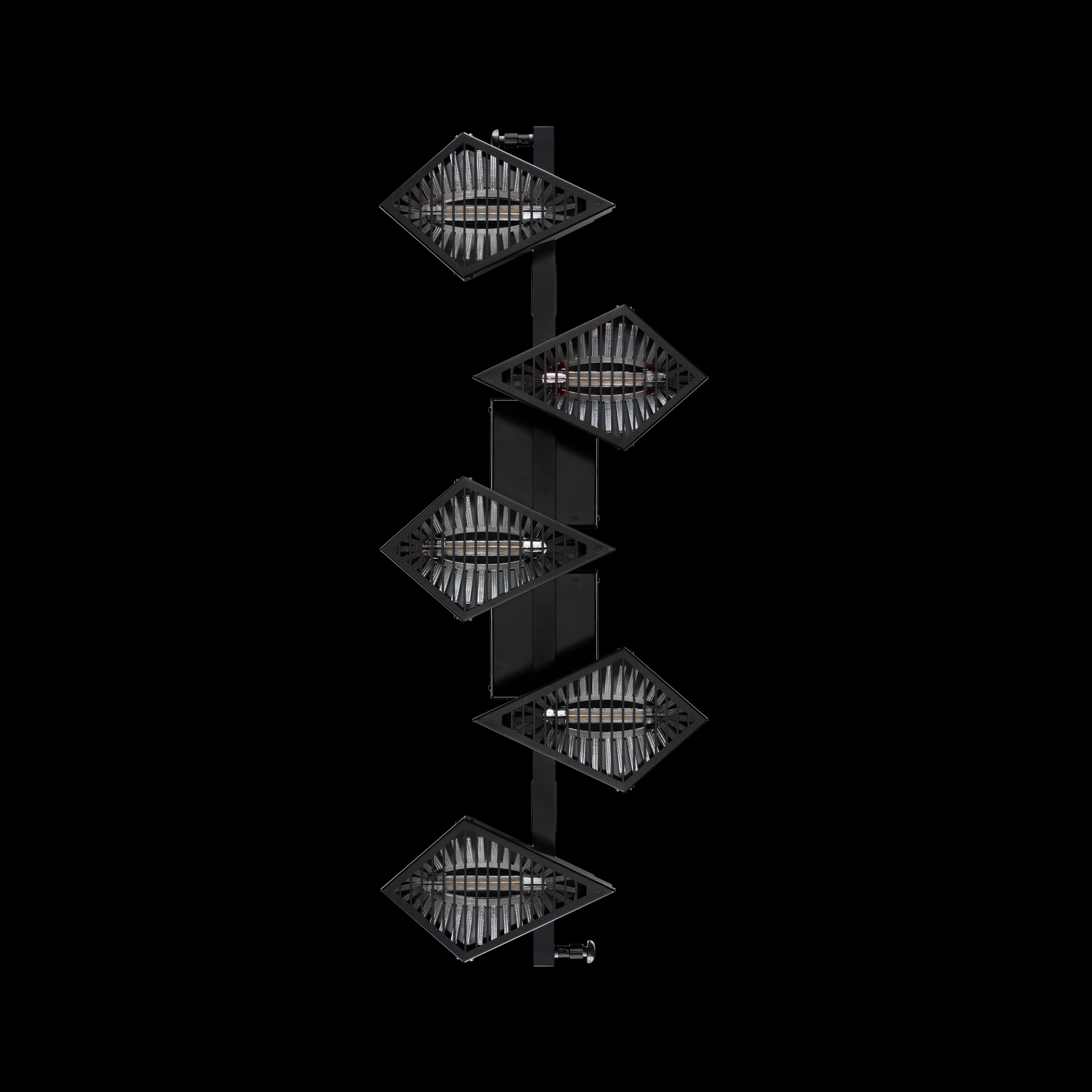

OFF

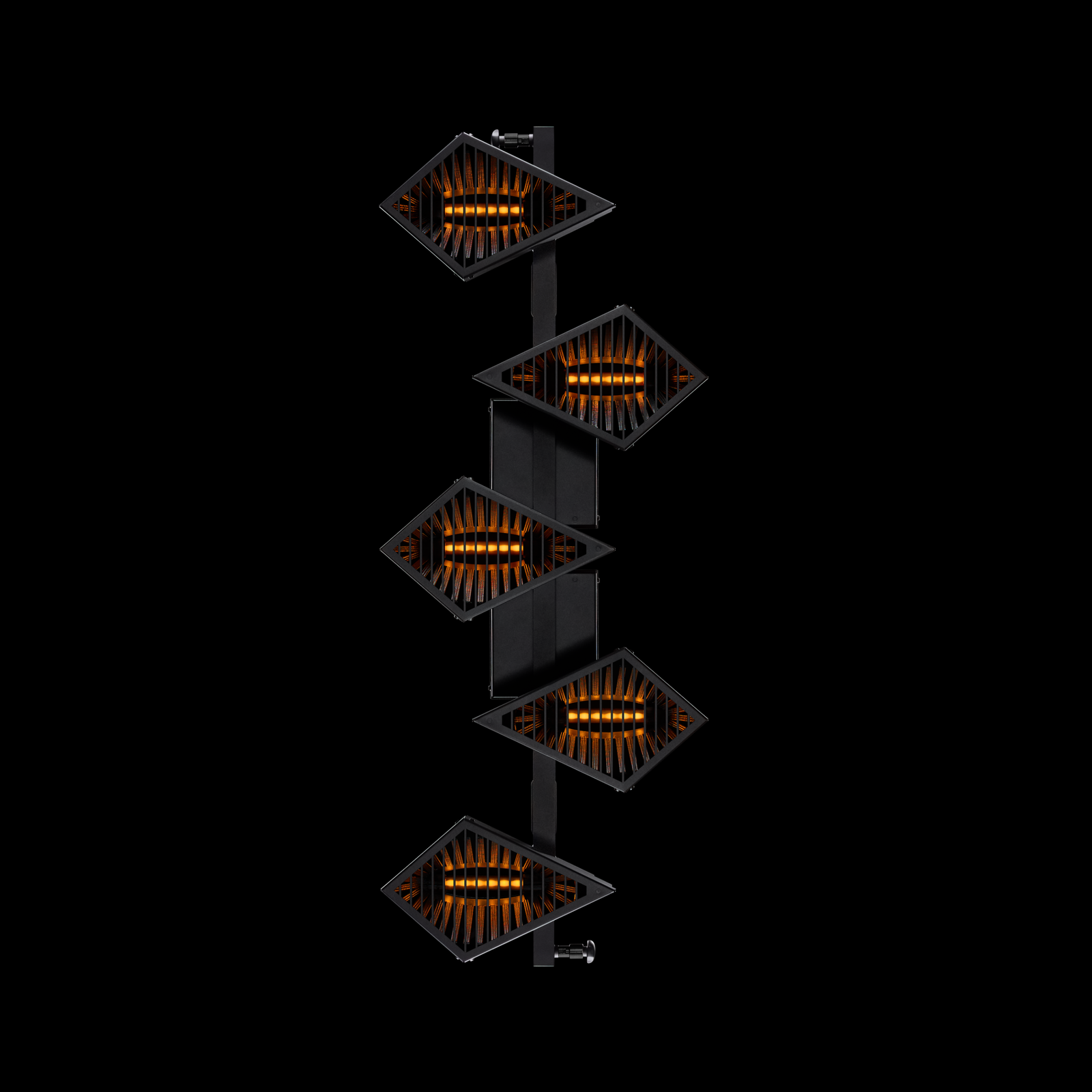

ON - SUBTLE WARMTH

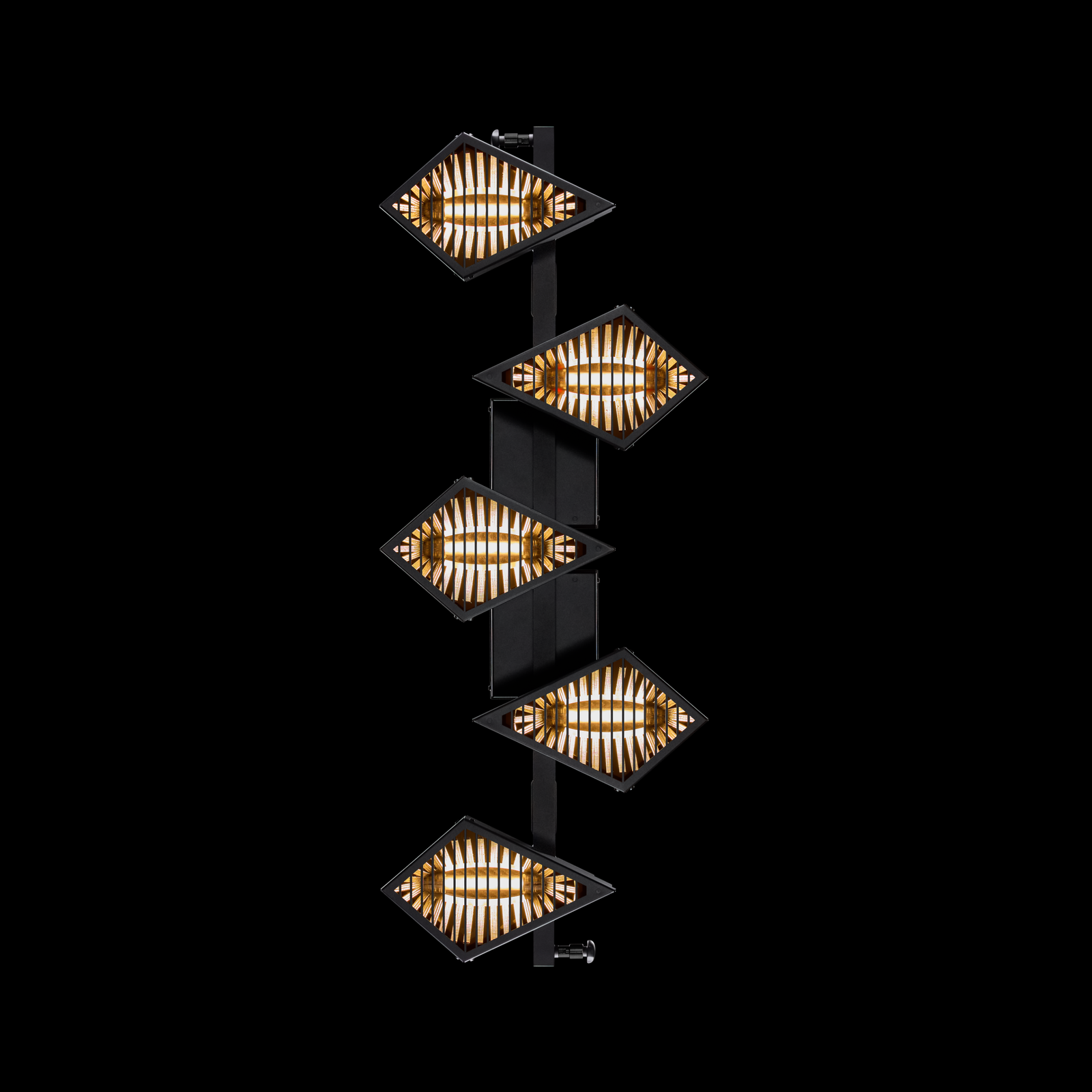

ON - MORE WARMTH!
ON - haloLED™

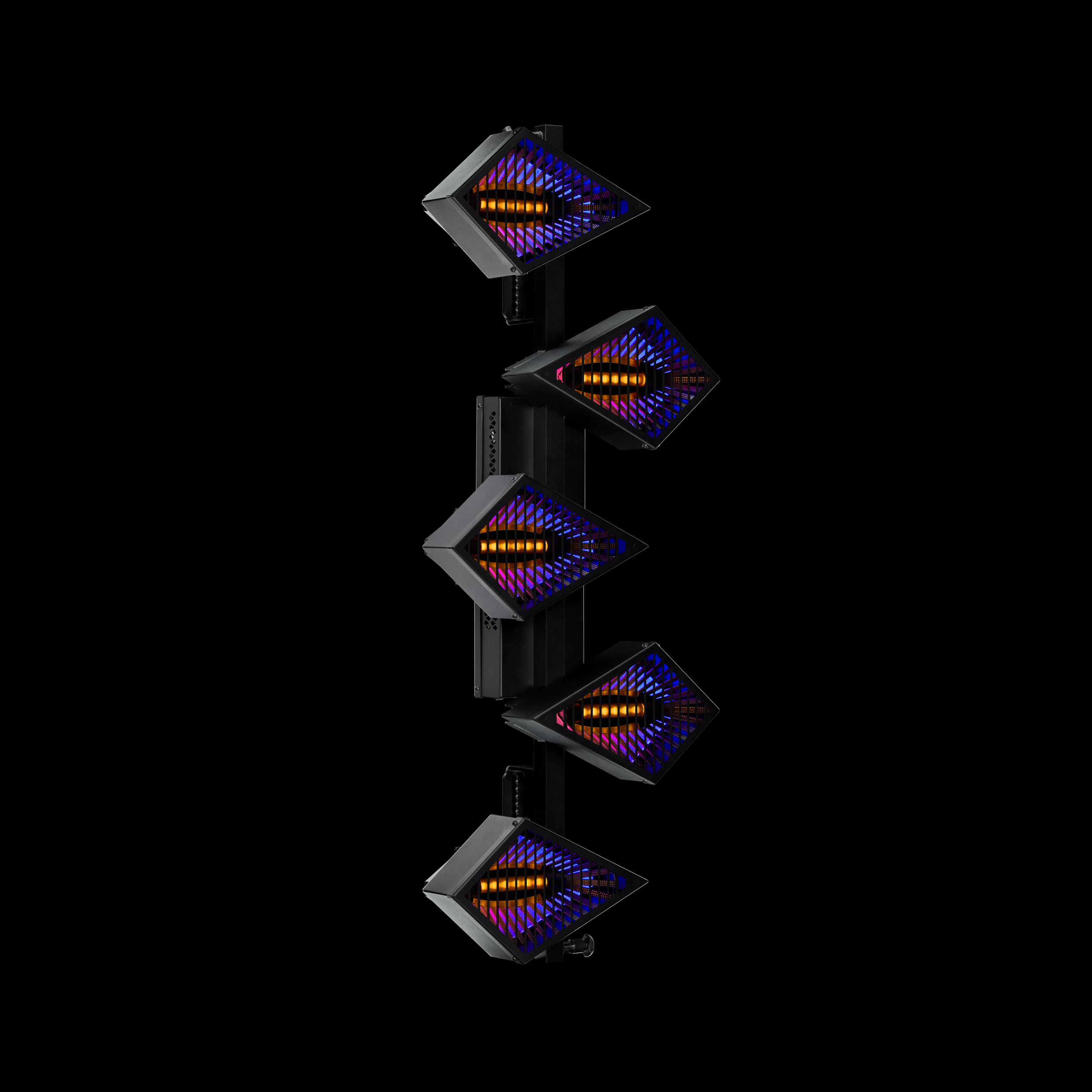

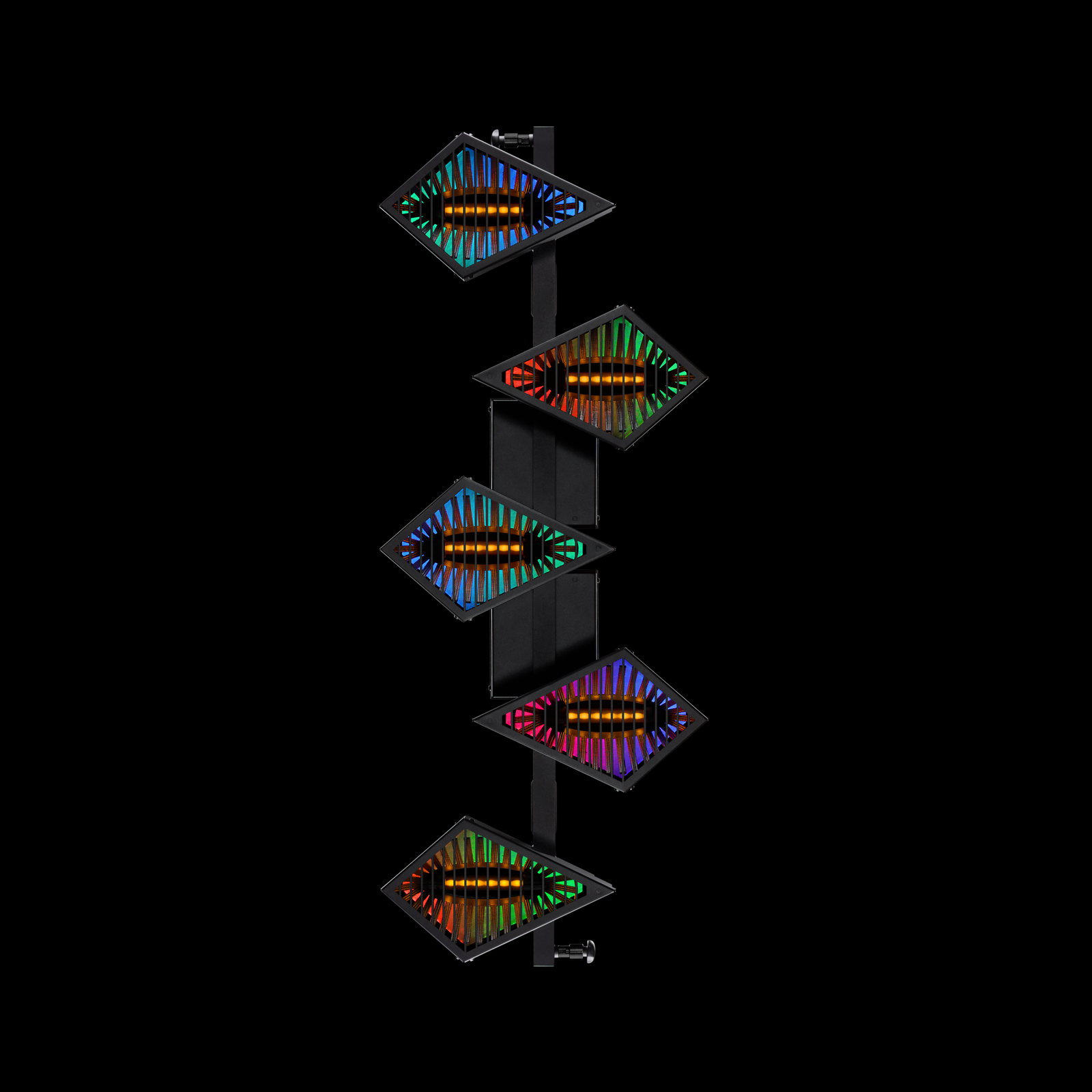

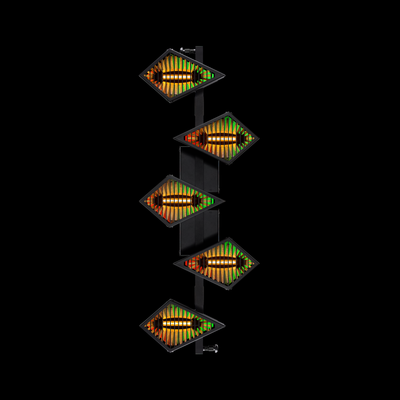

ON - GLOW ON - haloLED™

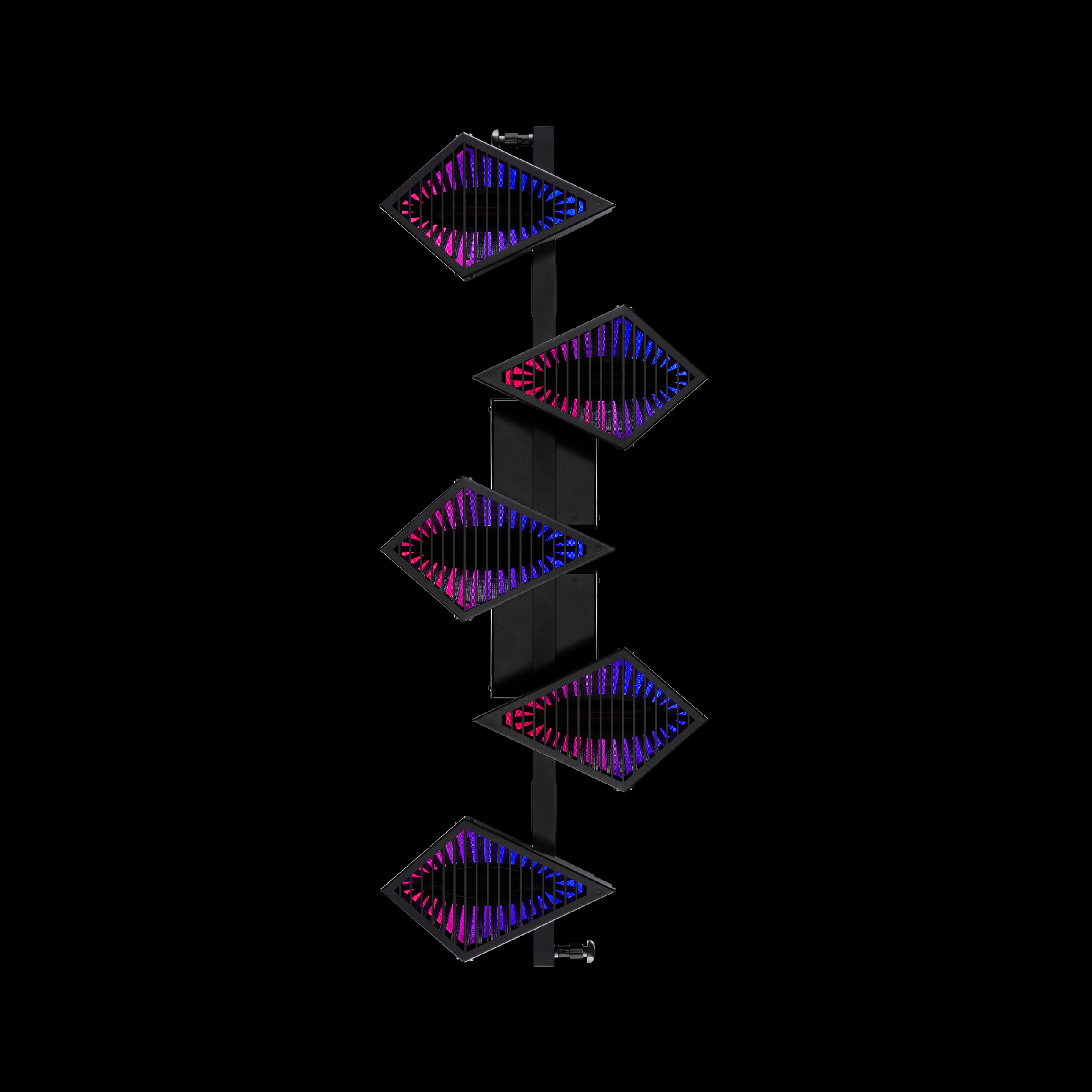

ON - Dual-zone SurfGlow™

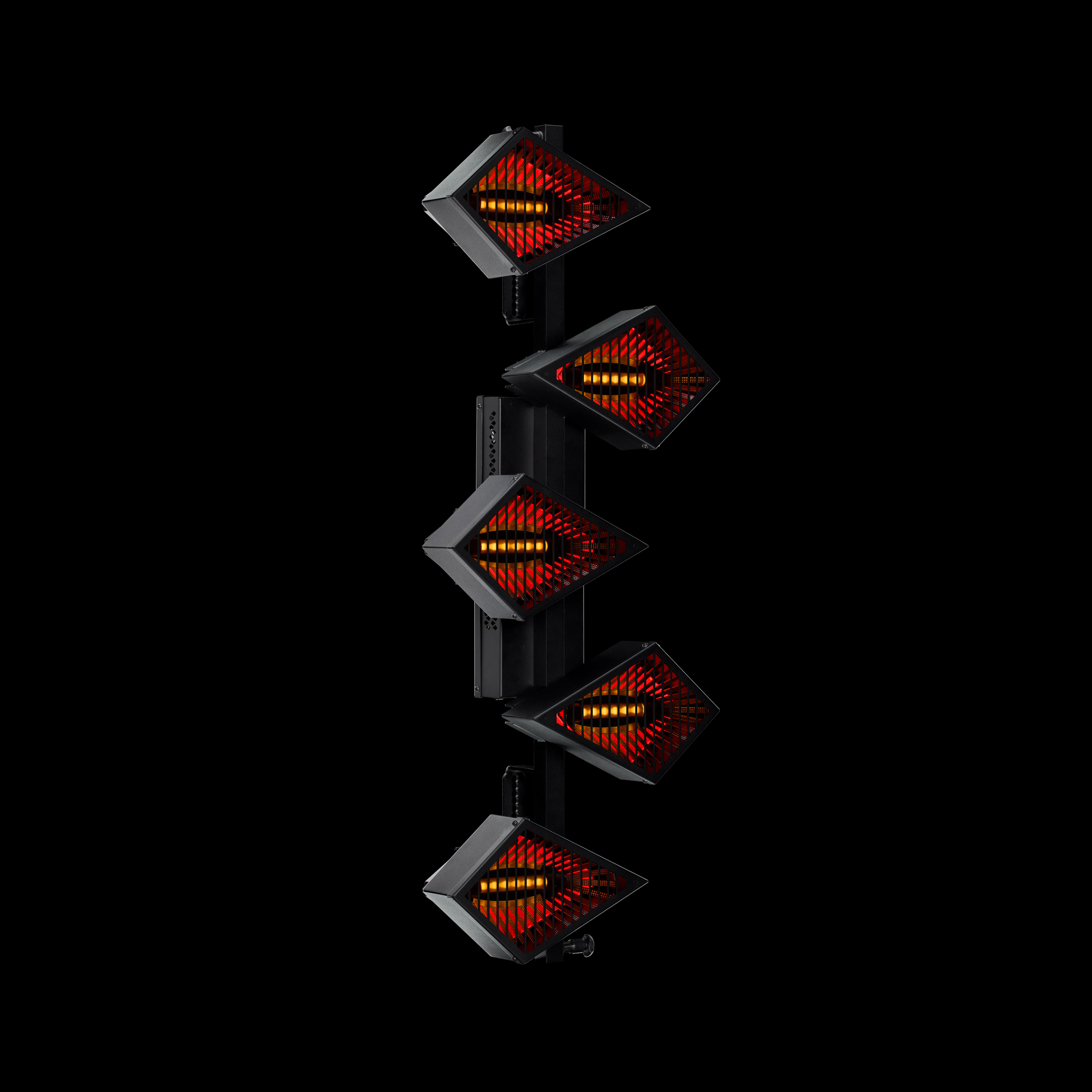

ON - GLOW ON - haloLED™
ON - Dual-zone SurfGlow™
Specification
Control & Programming
- Protocols
- DMX512, RDM, WDMX(optional)
- DMX modes
- 7
- DMX channels
- 12-97
- Interface
- LCD display, highlighted touch buttons, Colour Feedback System™ – fixture’s auto information status
- Additional features
- macros, influencer/follower mode, Quick Joint System 2.0™, Auto Orientation™
Electrical
- Input voltage
- 100-240 V 50/60 Hz
- Power consumption
- 300 W
- Connectors
- AC power in/thru: powerCON TRUE1
Physical construction
- Dimensions
- 115x44x19,5 cm (45.3x17.3x7.7 in)
- Weight
- 10kg (22lbs)
- Rigging
- - 2 x 12 mm (1/2 in) holes for clamp on back - base (included) - adaptor (included) with 12 mm (1/2 in) hole for clamp and/or base [Quick Joint System™]
- IP rating
- 20
Compliance & support
- Compliance
- CE
- Warranty
- 24m
Accessories
- Included
- Fixture
AC power cord (PowerCon TRUE 1/no AC plug)
Short manual
Base
Hook/Base adapter [QJS™ 2.0] - Optional
- Control features:
WDMX
Packing:
flight case (2-units)
soft case bag (1-unit)
