Photometrics
- Light source
- MAIN: 5x40W haloLED™ | GLOW: 10x8W RGBW
- Beam angle
- 94°
- Colour temperature
- MAIN: 1 600–3 200 K | GLOW: R G B + White 6000K
- Total luminous flux
- MAIN: 5 500 lm | GLOW: 1 200 lm
- CRI
- >80

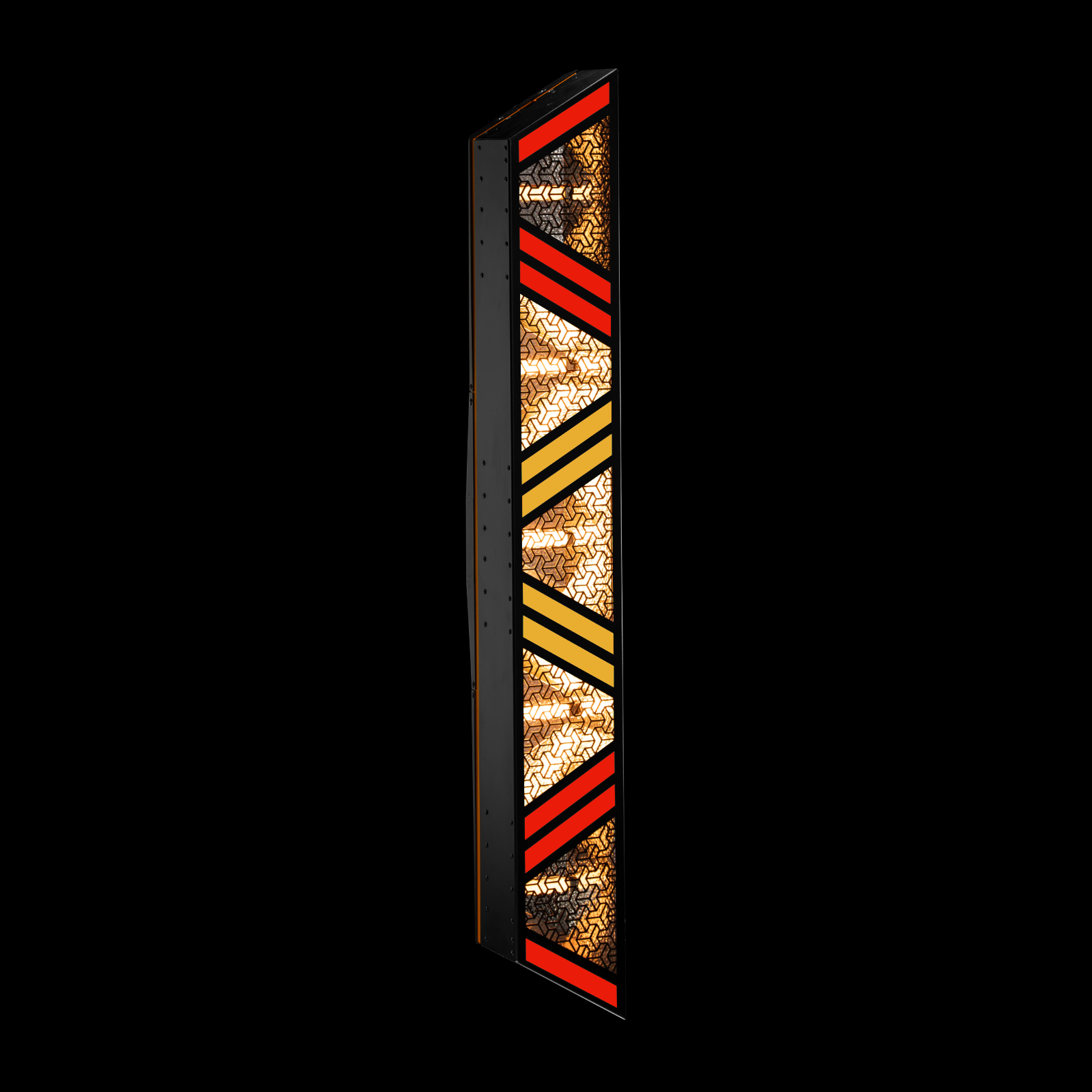

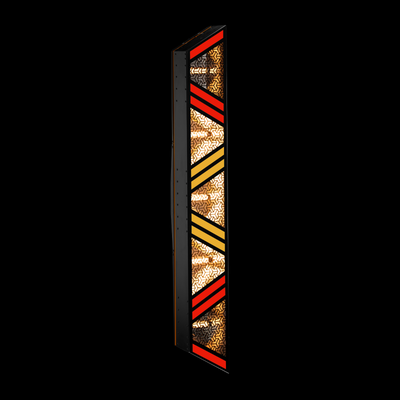

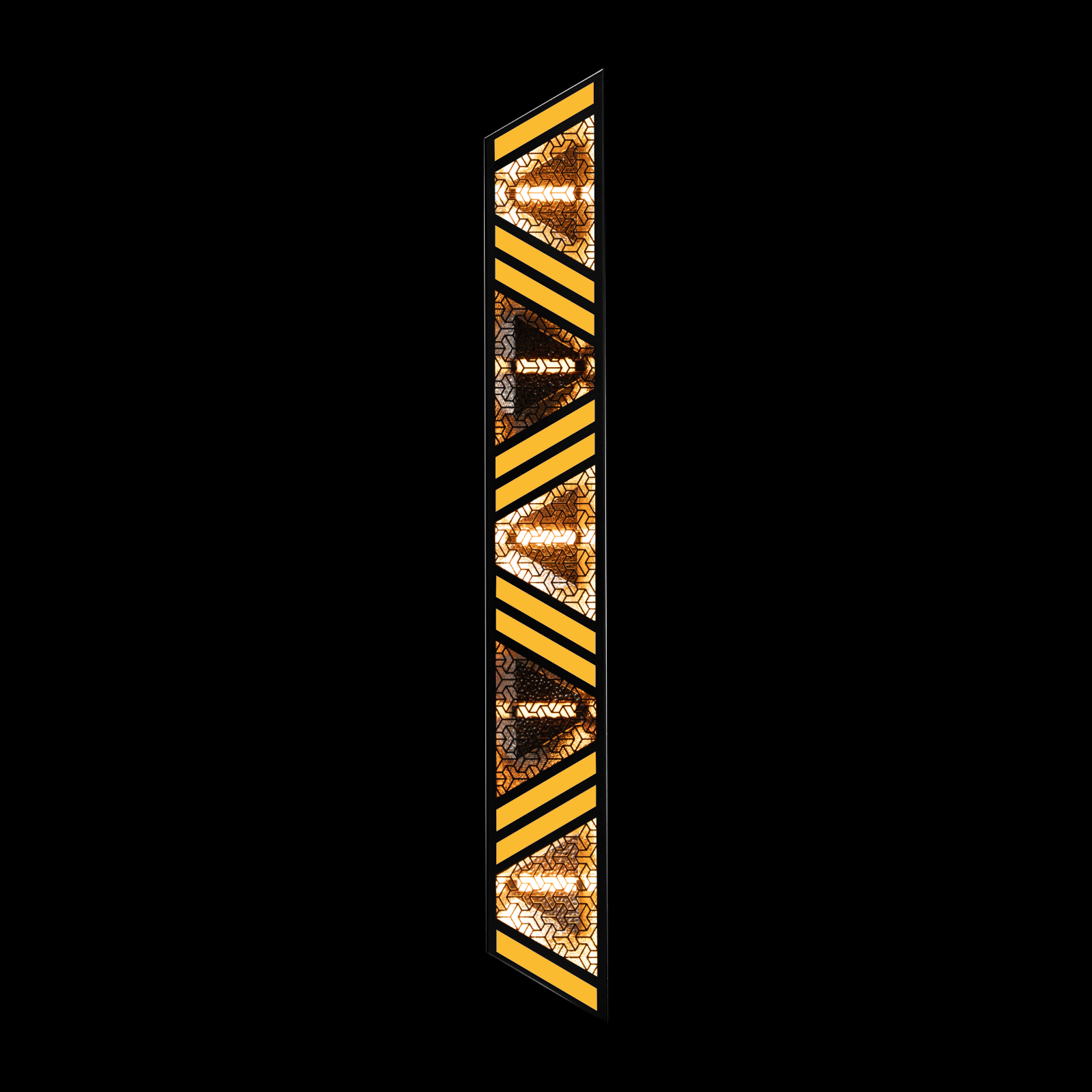

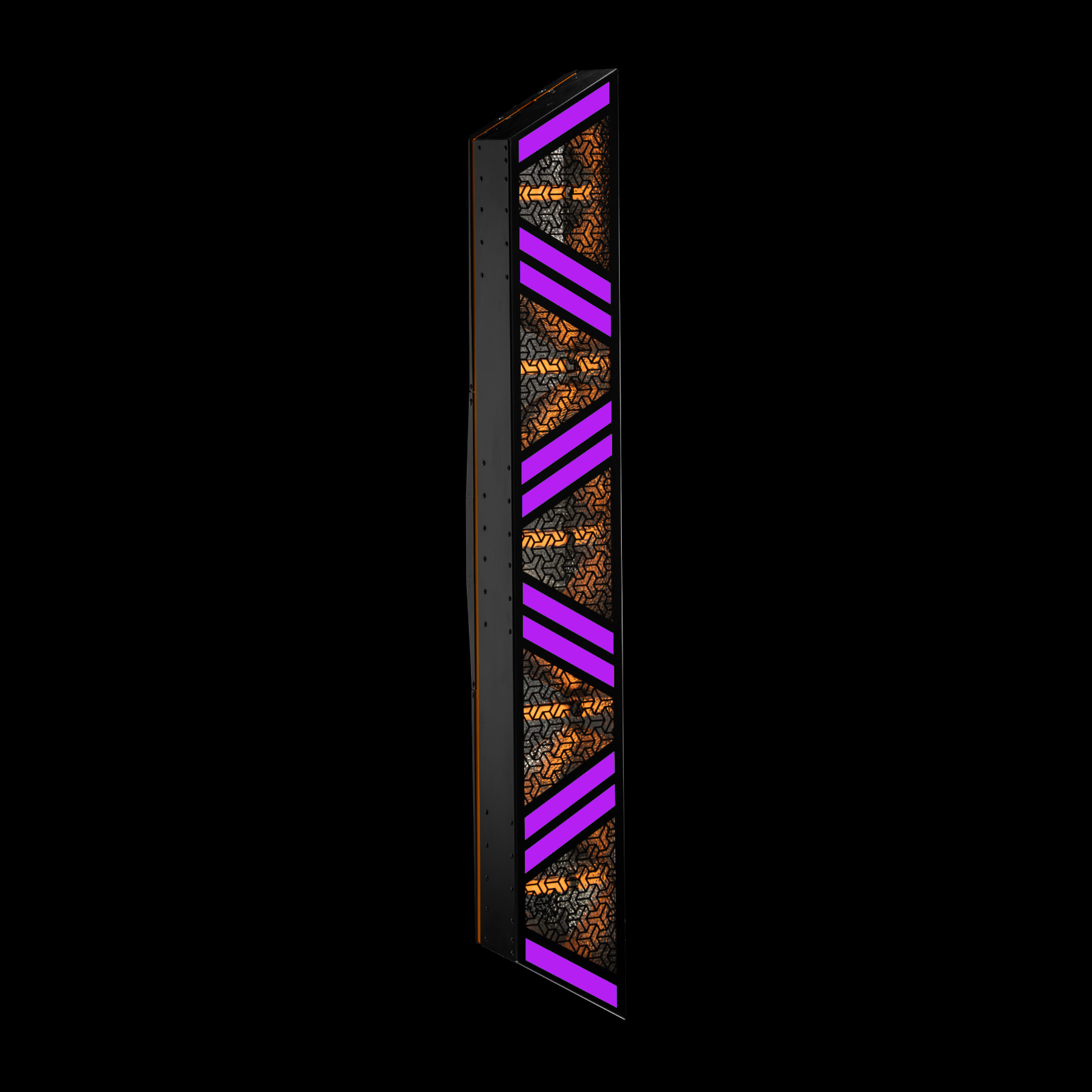

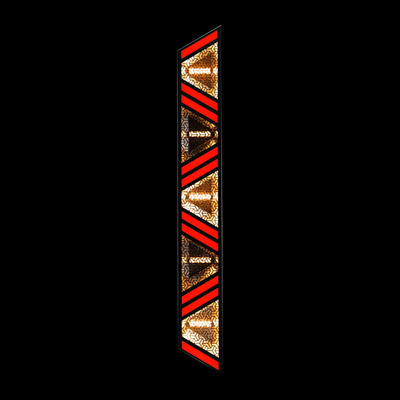

S-TRIBE™
Linear perfection. Seamless interconnectivity for massive visual structures.
Couldn't load pickup availability
Pickup available at Portman Main Warehouse
Usually ready in 24 hoursPairs well with
Original, high-quality, patented design product.
2-Year Warranty

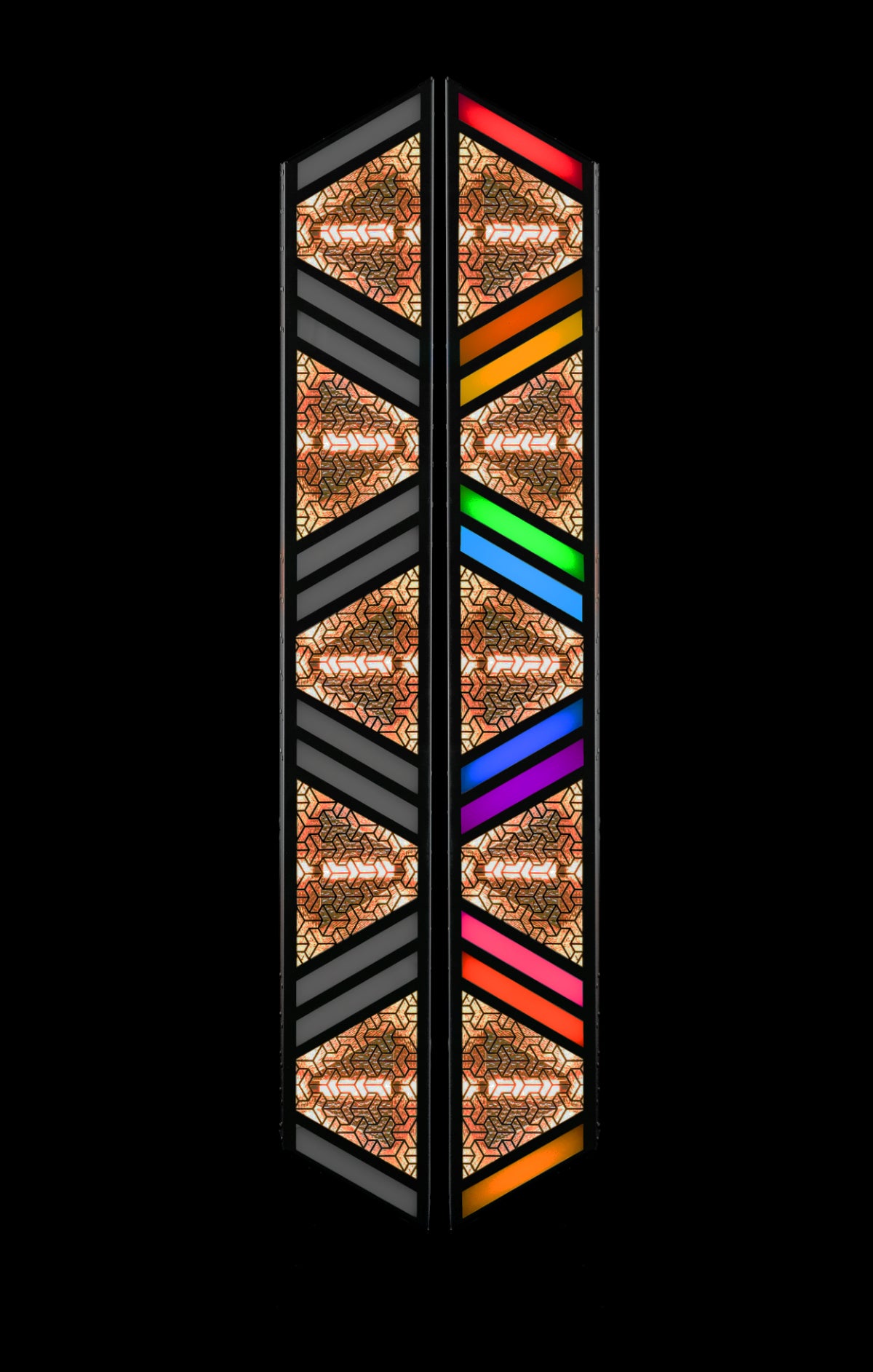

Unique geometry
Designed around a revolutionary trapezoidal form factor, S-TRIBE™ redefines what a linear scenic fixture can do. Built with 5 distinct blocks - each featuring a trapezoidal haloLED™ tungsten center flanked by two vibrant 8W RGBW color strips - it seamlessly blends vintage warm character with intense color accents.

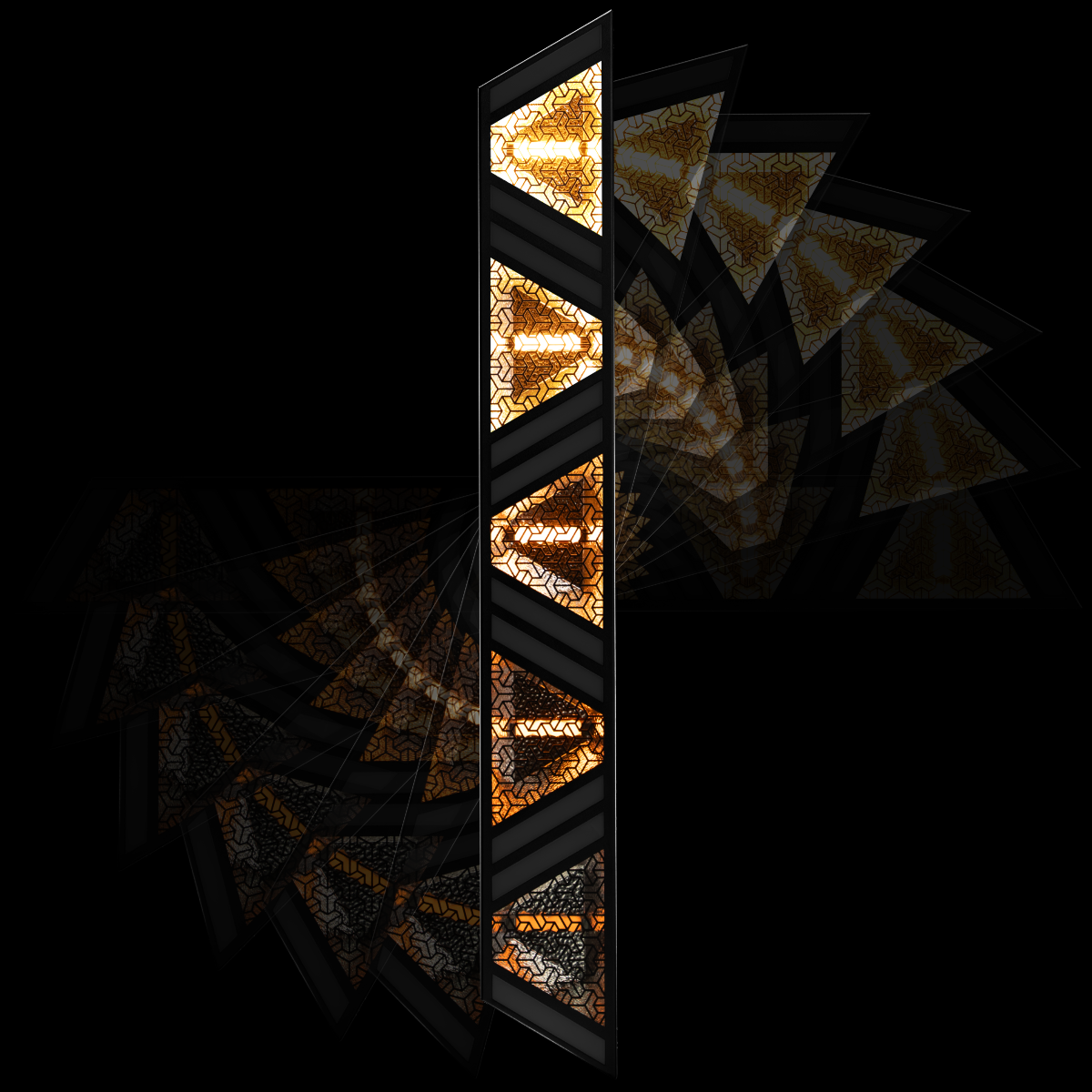

Smart Auto Orientation

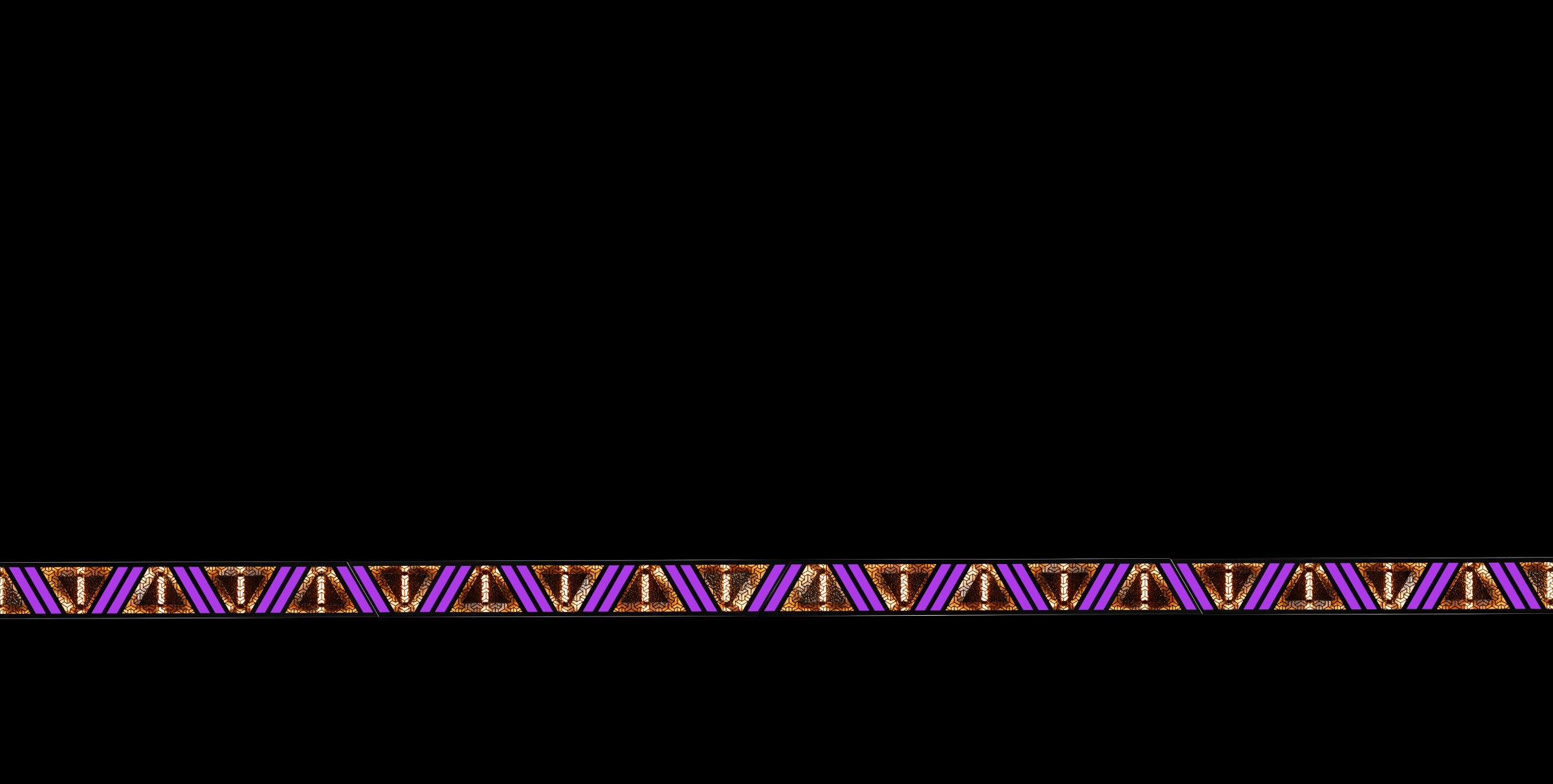

An integrated position sensor instantly detects physical rotation. When flipping trapezoids upside-down to build straight lines, the fixture automatically flips the pixel order (top/bottom, left/right) for stress-free patching.
... and play!
Auto Orientation™
Integrated smart position sensor for effortless channel patching. Rotate the fixture, and it automatically flips the pixel order (top/bottom, left/right) to match your physical setup instantly.
QJS™ (QuickJoint System)
Patented, tool-less locking mechanism for ultra-fast fixture coupling and rigid bracket mounting. Connect units seamlessly and build rock-solid stage arrays in seconds.
COLOR STRIPS
8W RGBW strips that instantly transform the visual character of the fixture and the entire stage atmosphere.
MAIN haloLED™
40W warm white true tungsten emulated LED source with red-shift effect and custom diffuser to boost retro style.

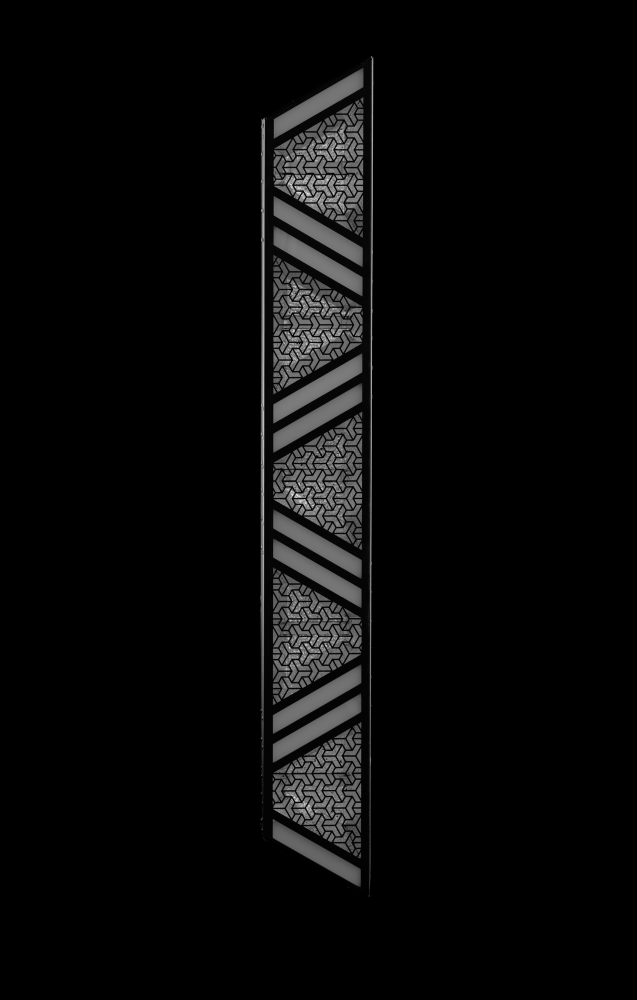

OFF
ON - haloLED™ WARMTH

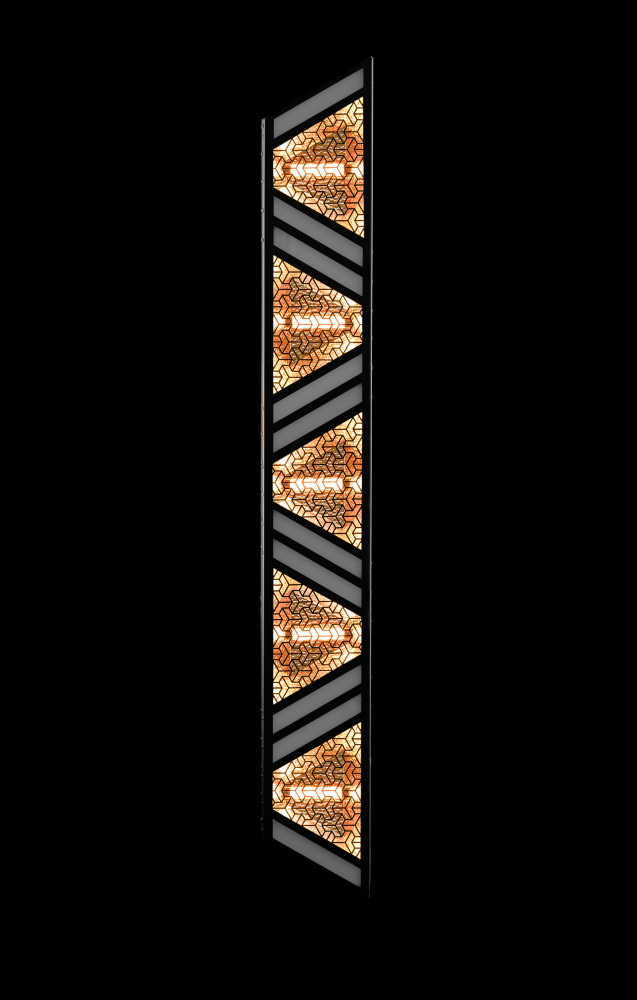

ON - haloLED™

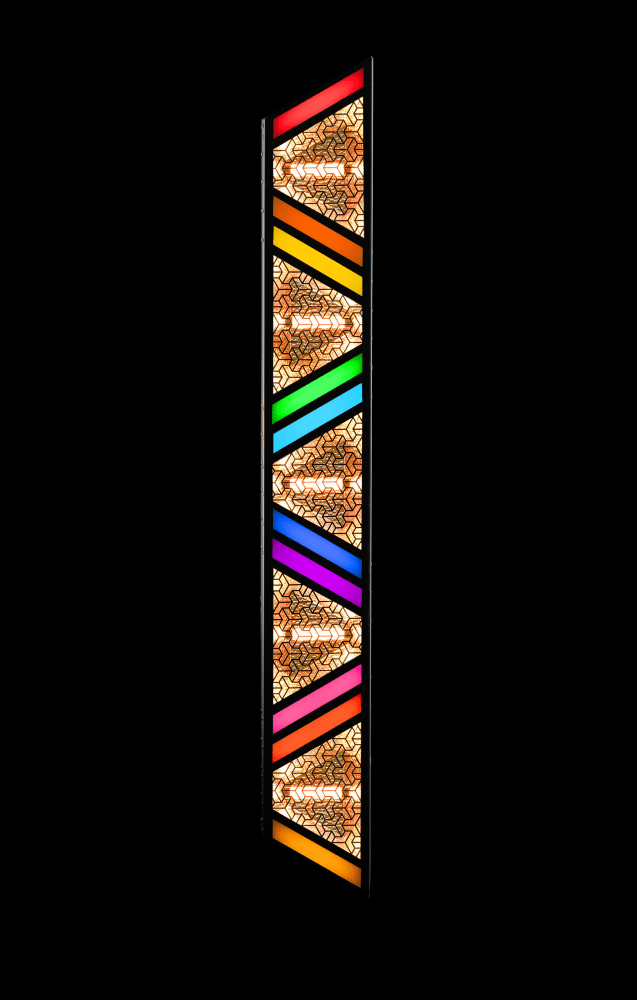

ON - STRIPS
ON - STRIPS
Specification
Control & Programming
- Protocols
- DMX512, RDM, Art-net (in), WDMX(optional)
- DMX modes
- 6
- DMX channels
- 12-97
- Interface
- LCD display, highlighted touch buttons, Colour Feedback System™ – fixture’s auto information status
- Additional features
- macros, influencer/follower mode, Quick Joint System™, Auto Orientation™
Electrical
- Input voltage
- 100-240 V 50/60 Hz
- Power consumption
- 280 W
- Connectors
- AC power in/thru: powerCON TRUE1
Physical construction
- Dimensions
- 118 x 15 x 18 cm (46.6 x 5.9 x 7 in)
- Weight
- 8,25 kg (18.2 lbs)
- Rigging
- 2 x 13 mm (1/2 in) holes on back; base; top/base adapter 13 mm (1/2 in) hole
- IP rating
- 20
Compliance & support
- Compliance
- CE; UKCA
- Warranty
- 24 m
Accessories
- Included
- Fixture
AC power cord (PowerCon TRUE 1/no AC plug)
Base
Hook/Base adapter [QJS™]
QJS™ spigot
User manual - Optional
- Control features:
WDMX
Packing:
flight case (4-units)
flight case (6-units)
S-TRIBE™ in action

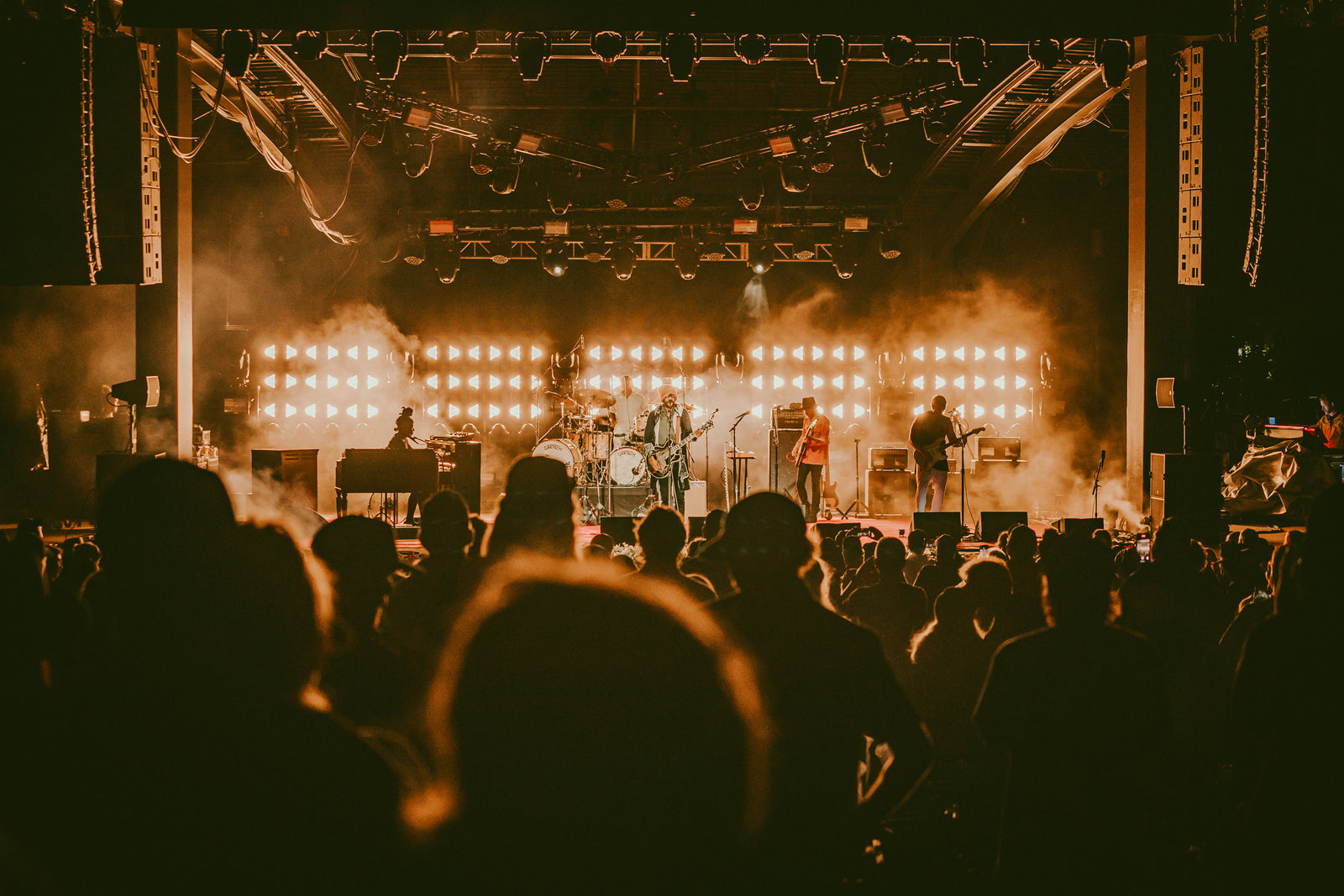

Gary Clark Jr.

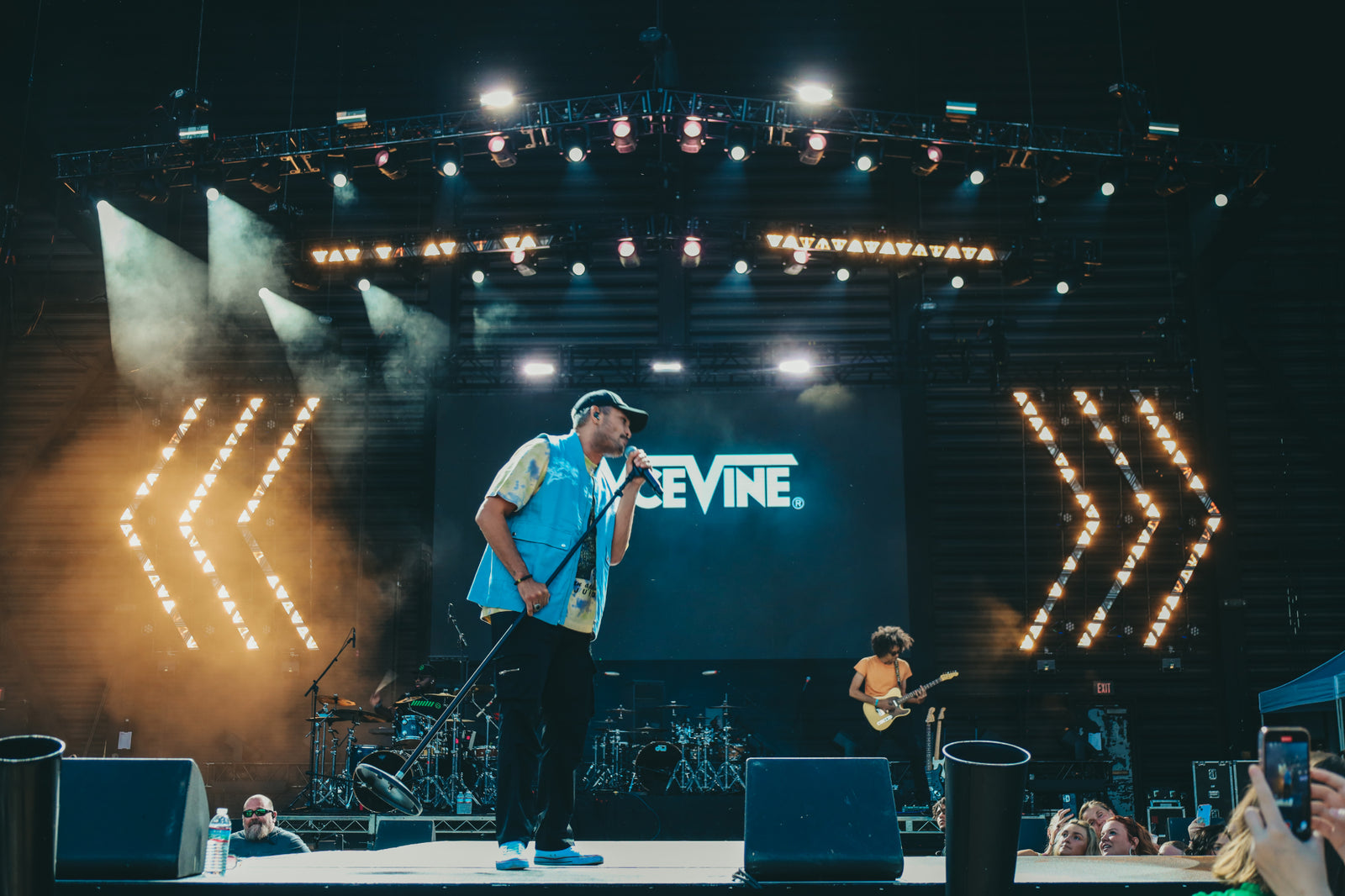

Bryce Vine

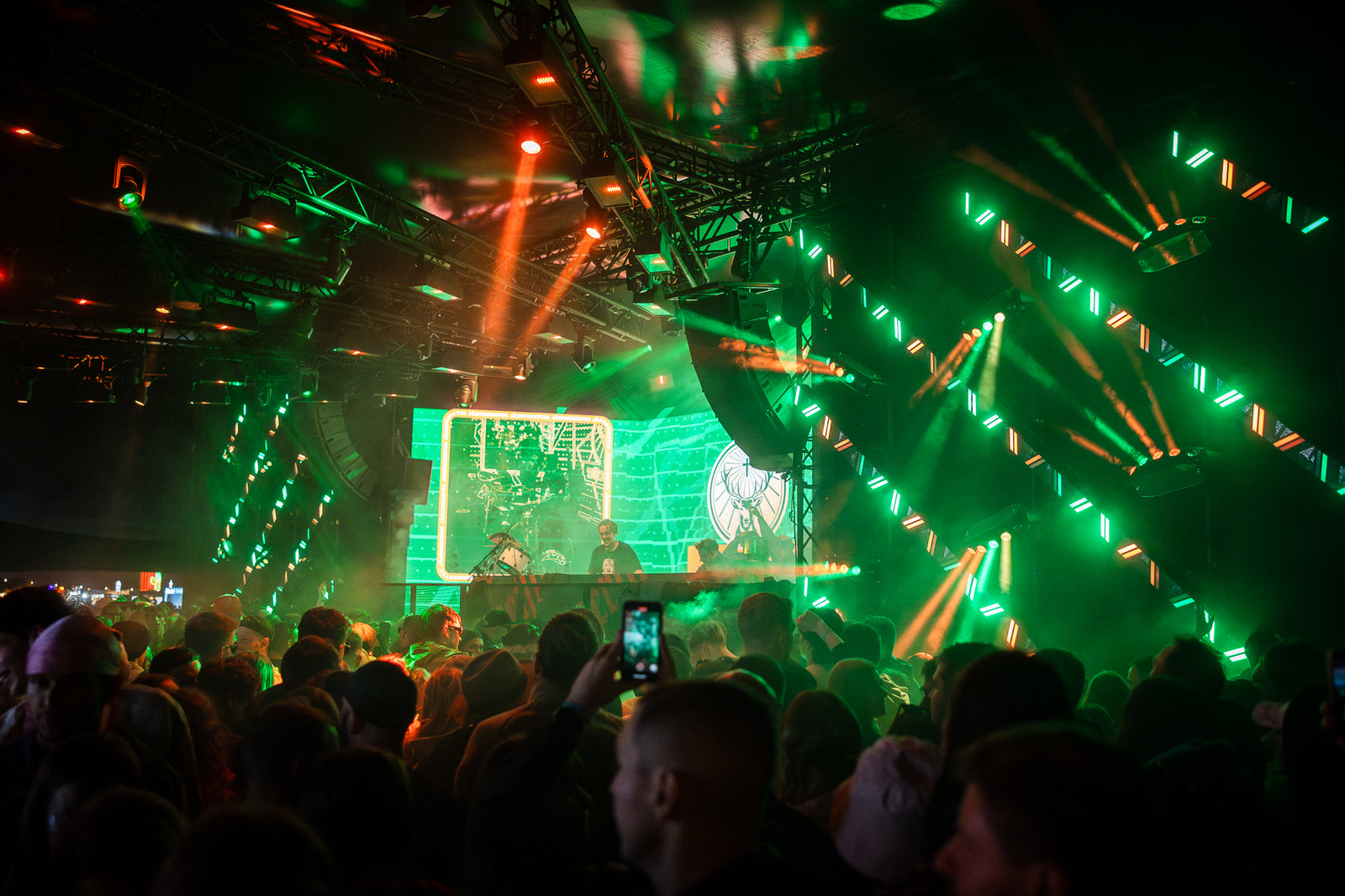

Open'er Festival

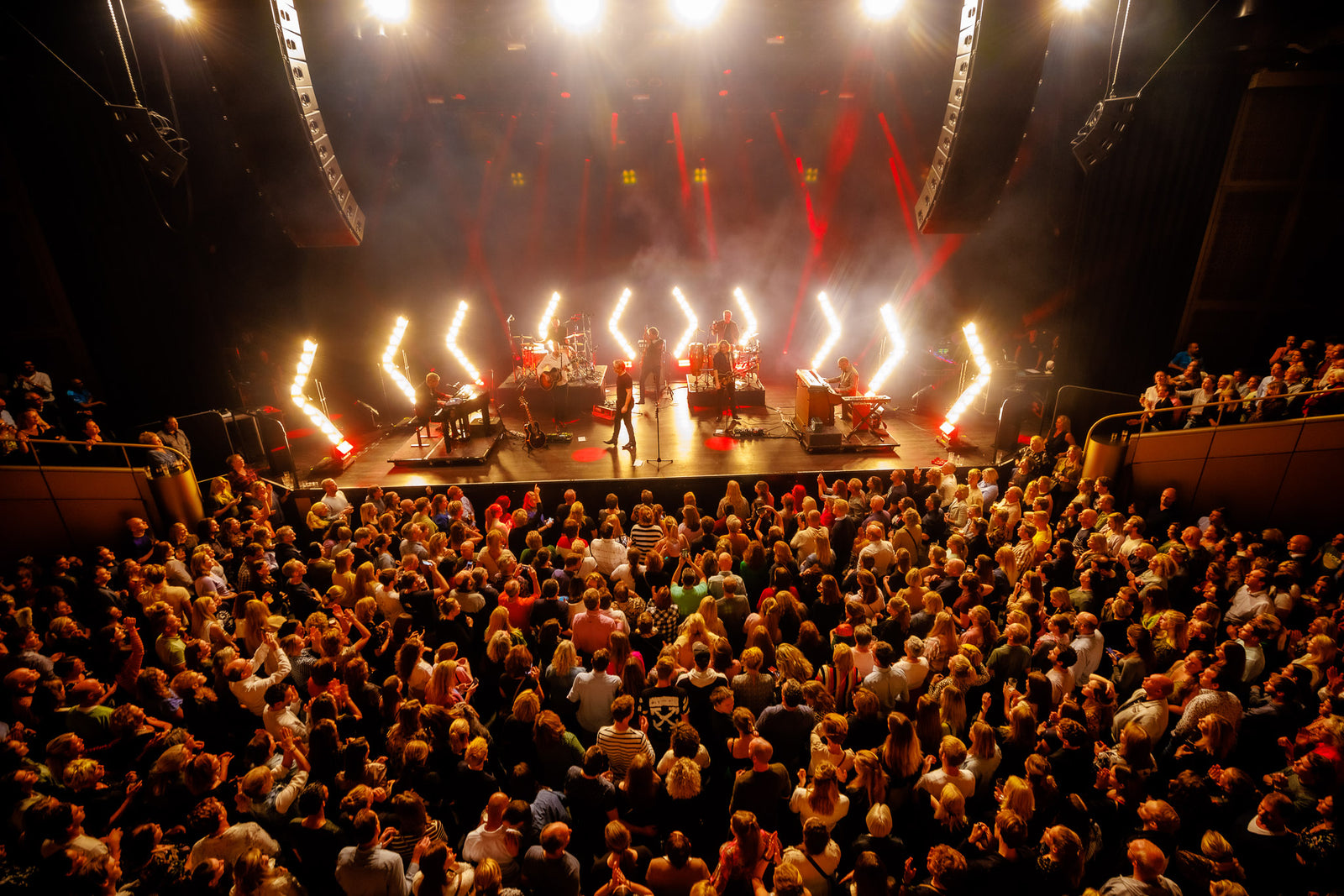

Guus Meeuvis

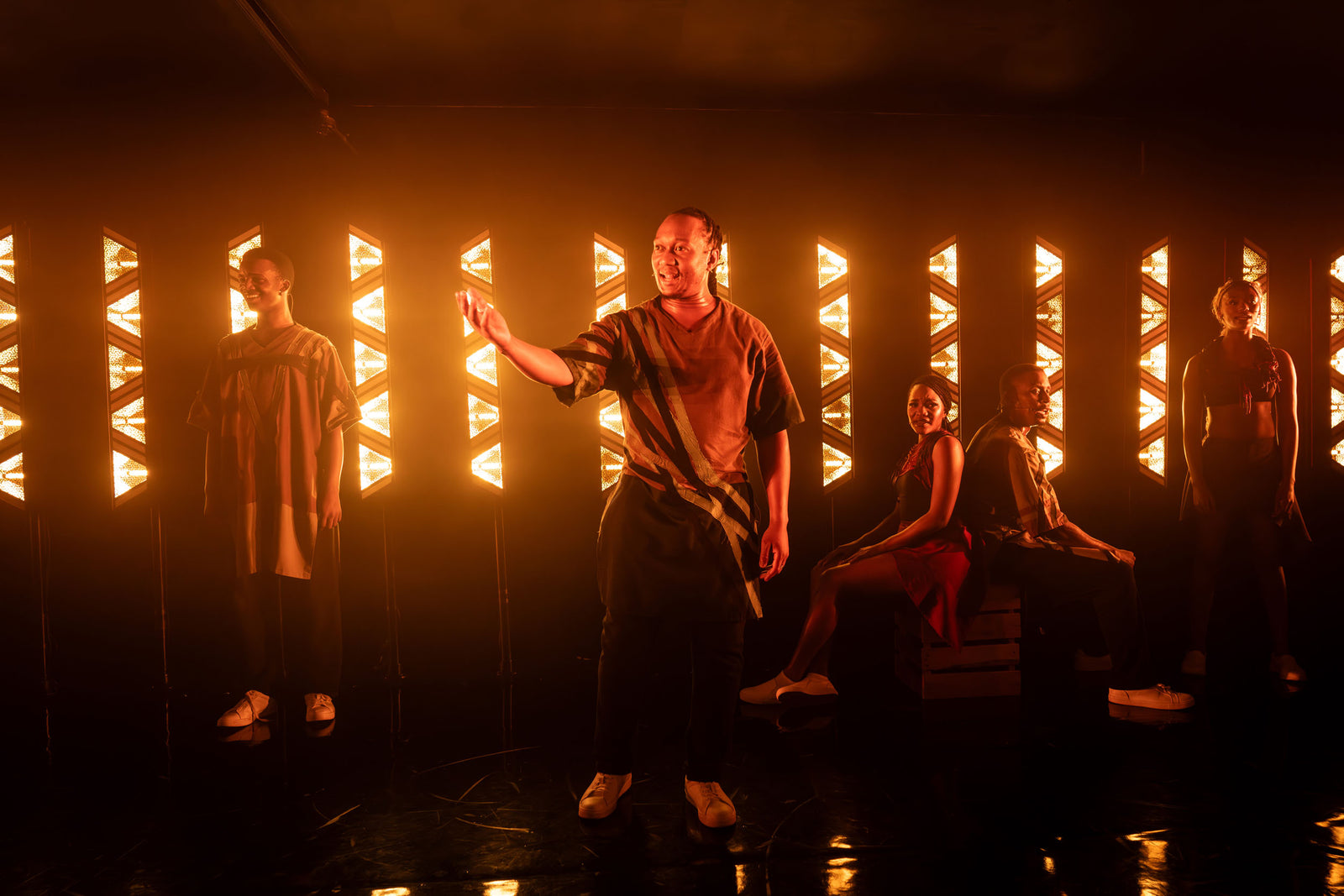

INALA
